61 35 965 Removing and installing/replacing rear parcel antenna for comfort access system
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove both TRIMS FOR ROOF PILLAR AT REAR (REAR)
- Remove both TRIMS FOR ROOF PILLAR AT REAR (FRONT) .
- Remove BACKREST FOR REAR SEAT
- Remove PANEL FOR PARCEL SHELF

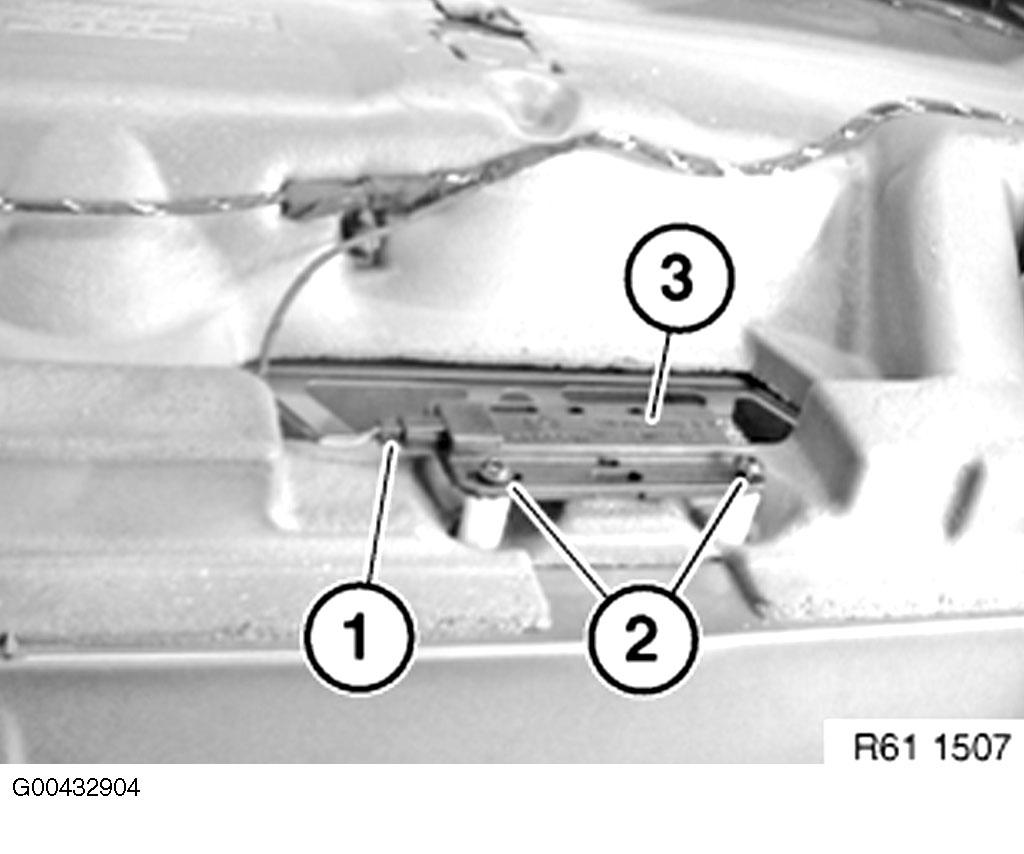

Disconnect plug connection (1). Unfasten screws (2). Remove interior antenna for comfort access system (3).
