51 46 006 Removing and installing/replacing trim for rear parcel shelf

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR ROOF PILLAR AT FRONT LEFT/RIGHT .

Version without through-loading system:

Remove BACKREST FOR REAR SEAT

Version with through-loading system:

Fold back backrest completely
Remove LEFT/RIGHT SIDE SECTION on rear seat backrest

Version with rear window roller blind only:

Release screws in luggage compartment.

Installation:

Tightening torque: see 3AZ in 51 46 PARTITION PANELS .

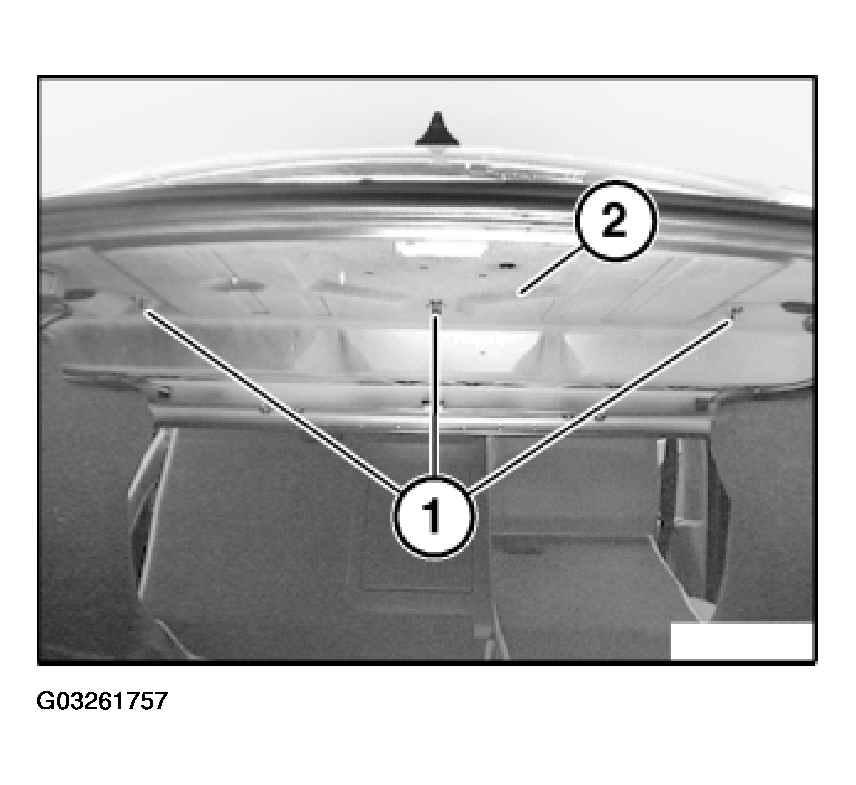

Fig 1: Removing Left/Right Side Section On Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear window roller blind only:

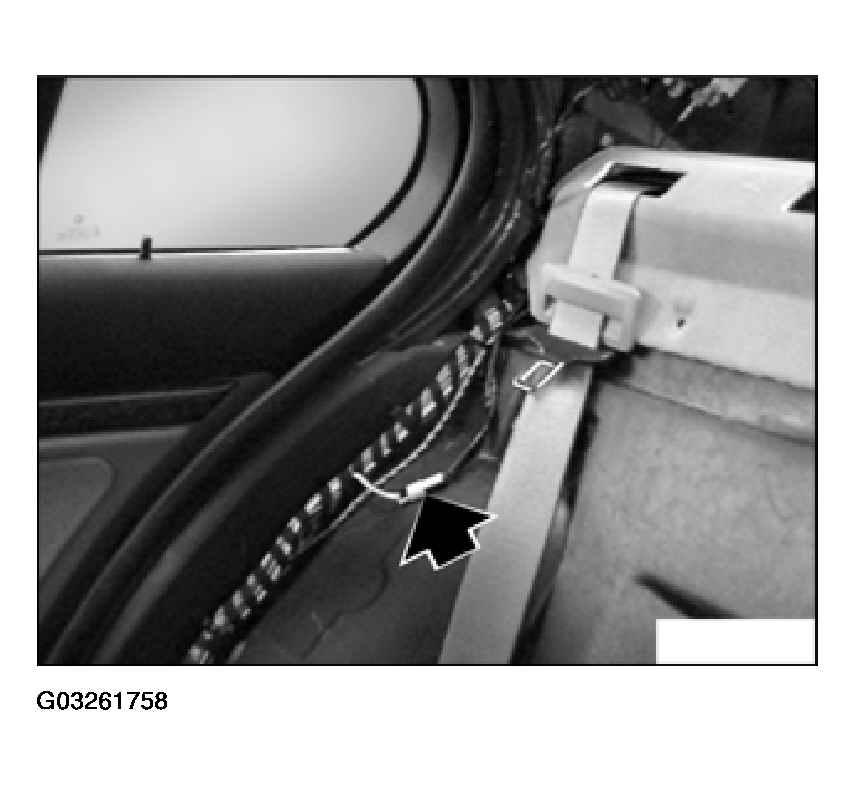

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

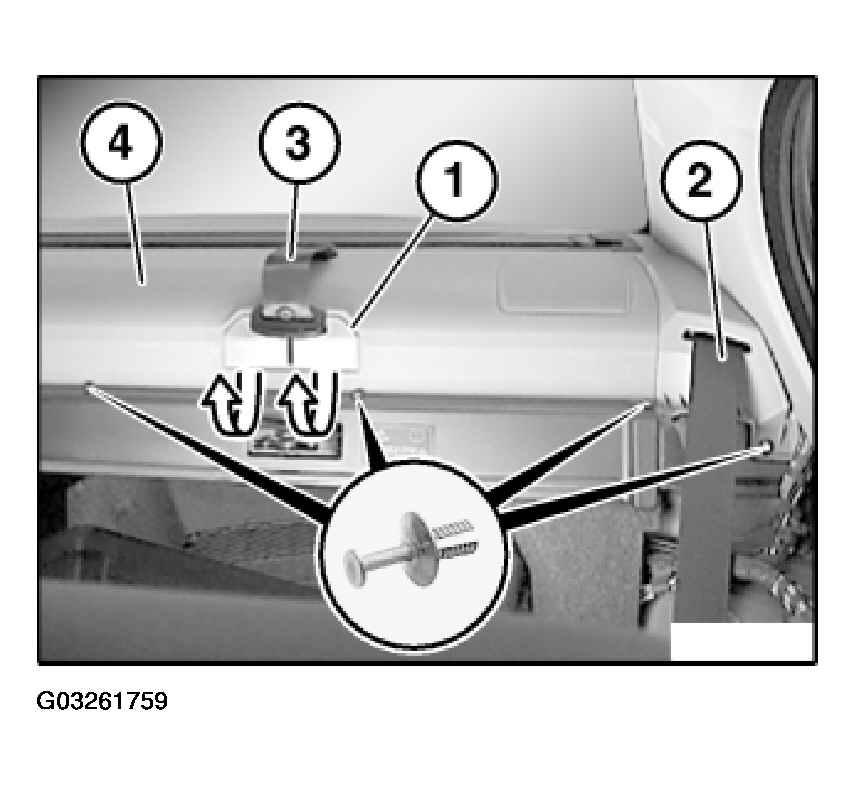

Release center seatbelt finisher strip (1) and feed out seatbelt strap (3).

Release expander rivet and pull rear parcel shelf (4) forwards.

Feed out left/right seatbelt strap (2) and disconnect speaker plug connection.

Fig 3: Removing Center Seatbelt Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rear parcel shelf (2) towards front.

Installation:

Slide rear window shelf (2) correctly into ventilation grill guides (1).

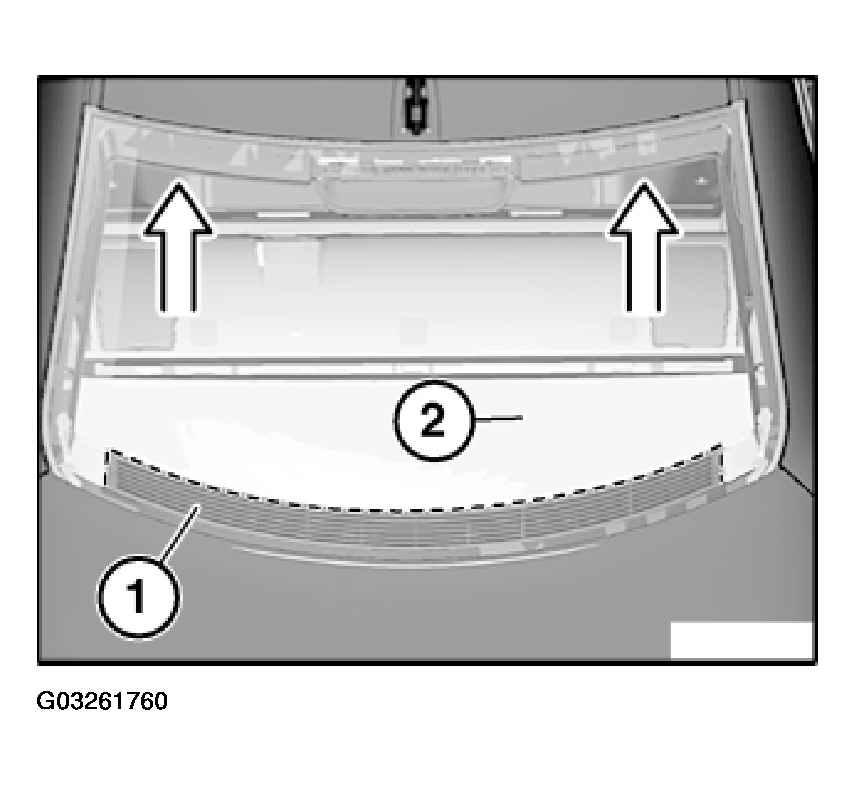

Fig 4: Removing Rear Parcel Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of center seatbelt finisher strip (3) must not be damaged or missing:

Guides
Retaining lugs

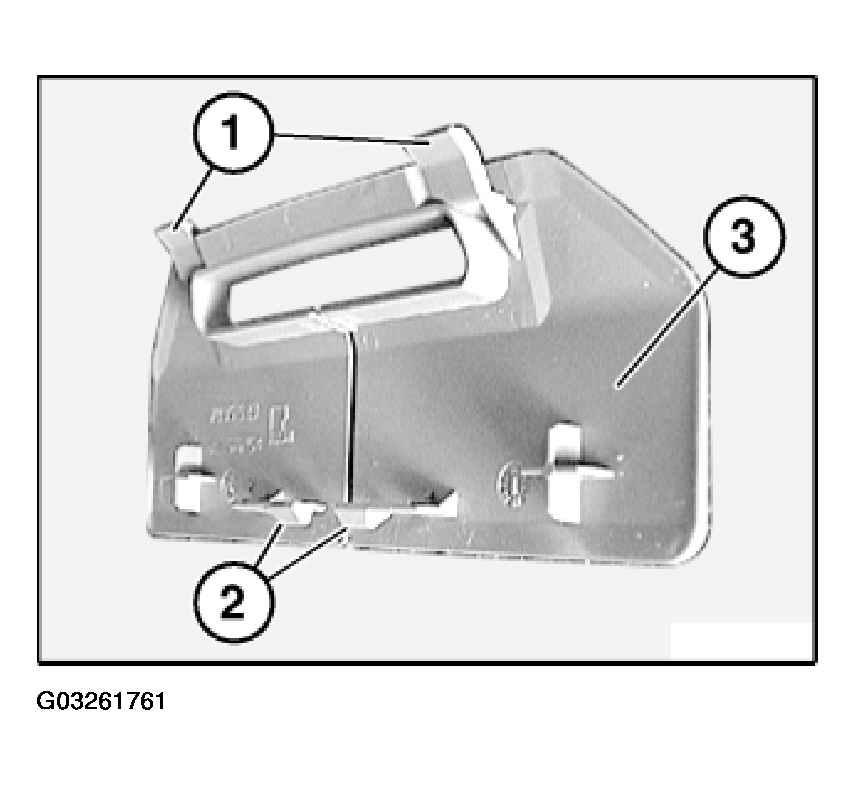

Fig 5: Installing Parts Of Center Seatbelt Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing trim for rear parcel shelf" ends here.

If necessary, remove or replace rear window roller blind:

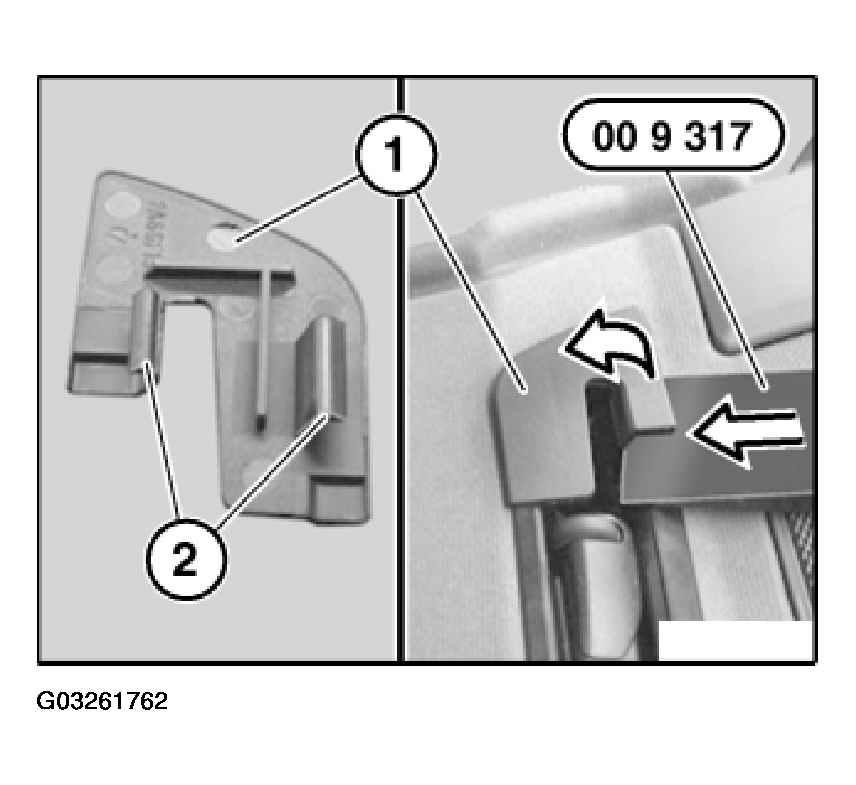

Lever out protective cap (1) on left/right with special tool 00 9 317 .

Installation:

Retaining lugs (2) of protective caps (1) must not be damaged or missing.

Fig 6: Installing Retaining Lugs Of Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out shelf (3) over rear groove (1) of rear window roller blind.

Pull front guide (2) out of shelf (3) and remove roller sun blind towards bottom.

Fig 7: Removing Shelf Over Rear Groove Of Rear Window Roller Blind

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing or replacing rear window roller blind" ends here.

Replacement only:

Remove left/right MID-RANGE SPEAKER (2)

If necessary, remove left/right TWEETER

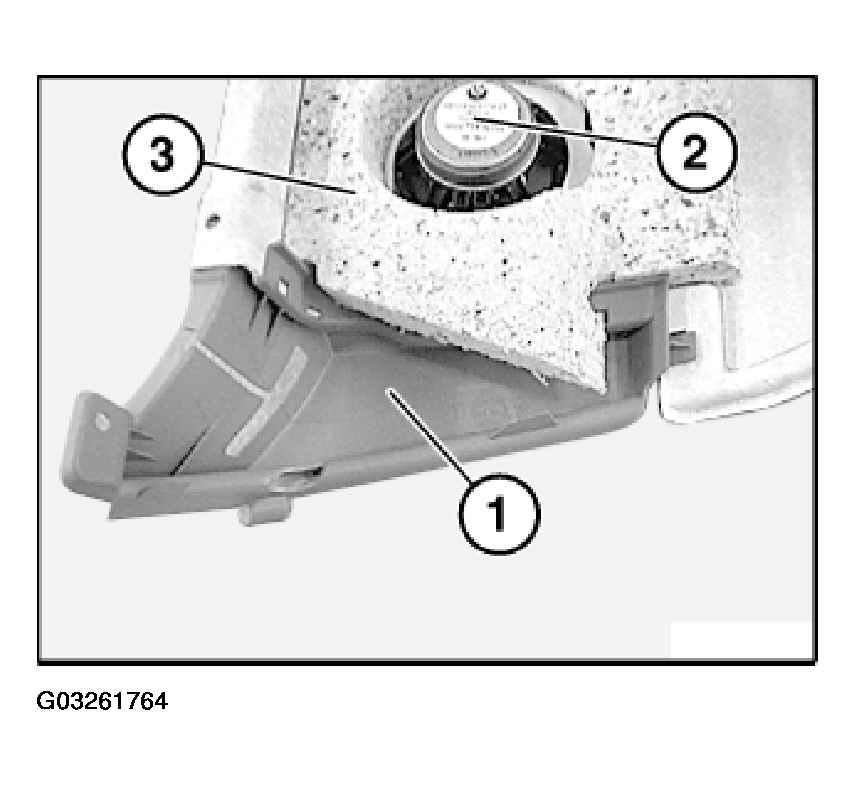

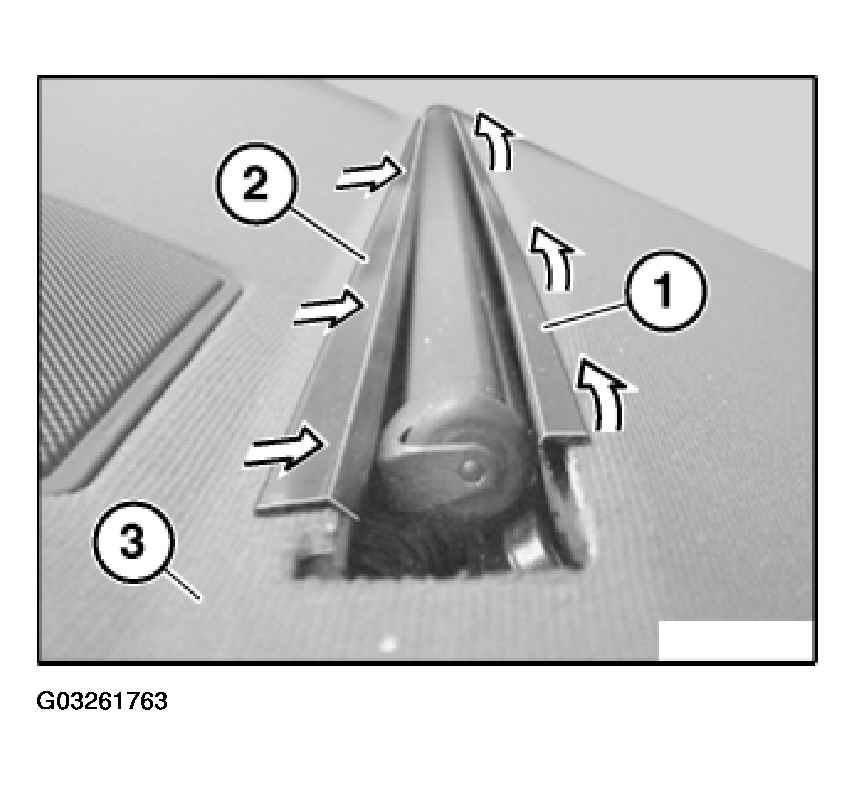

Remove trims (1) for belt outlet on left/right from rear parcel shelf (3).

Fig 8: Identifying Mid-Range Speaker & Removing Trims For Belt Outlet On Left/Right From Rear Parcel Shelf
