52 24 010 Removing and installing/replacing backrest for rear seat (basic)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .
- Remove middle seat belt.
- Open lock on rear seat back (emergency actuator). See 52 26... Emergency Actuator For Rear Seat Backrest .

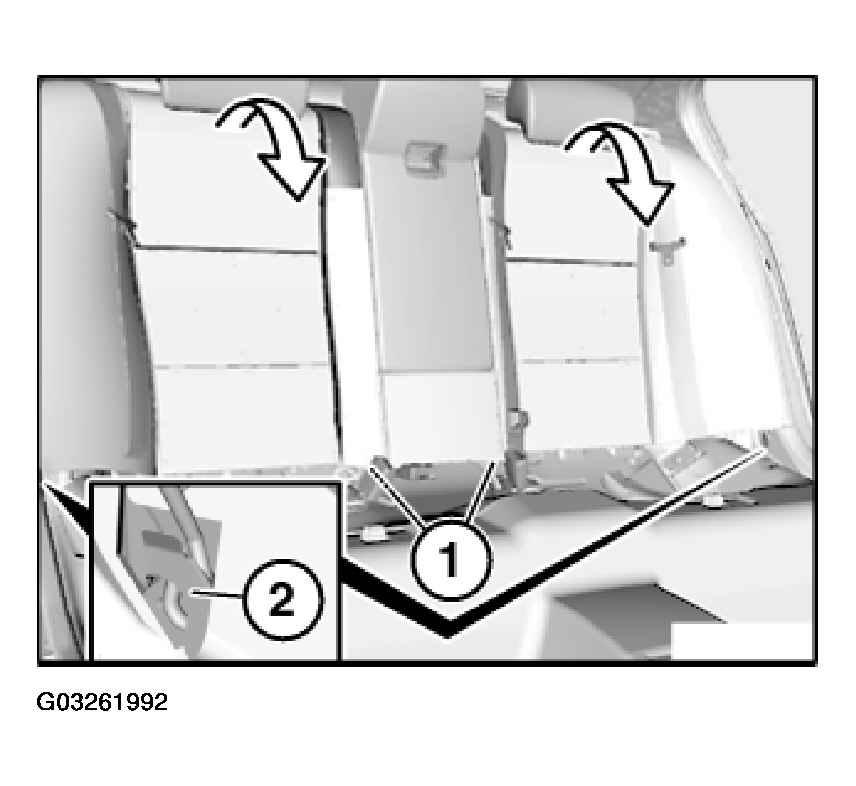

Release screws (1).
Feed backrest out of belts and lift out towards front.
Installation:
Pay attention to precise guidance (2).
Tightening torque, see 52 24 1AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .
