51 16... Removing and installing/replacing center armrest adjustment unit

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Center Console Cover
Remove Center Armrest
Remove Center Console

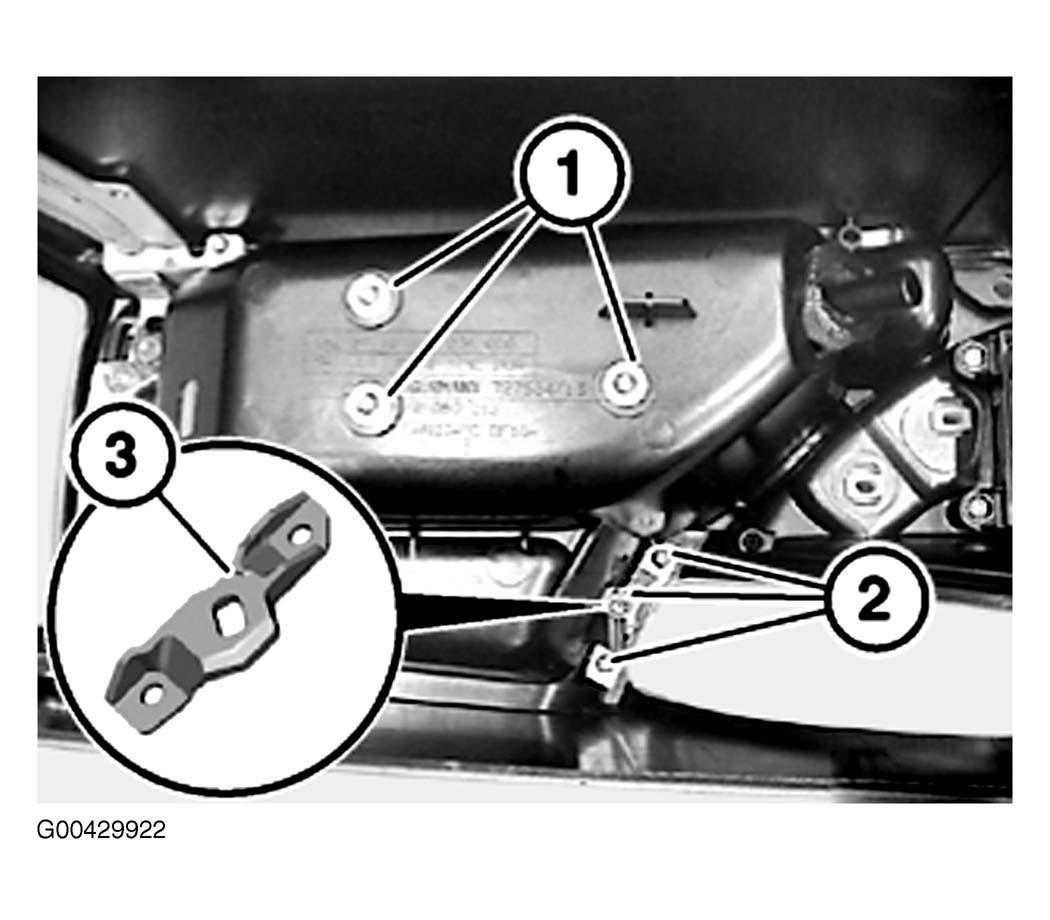

Release screws (1).

Release screws (2) and remove holder (3).

Fig 1: Releasing Screws & Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

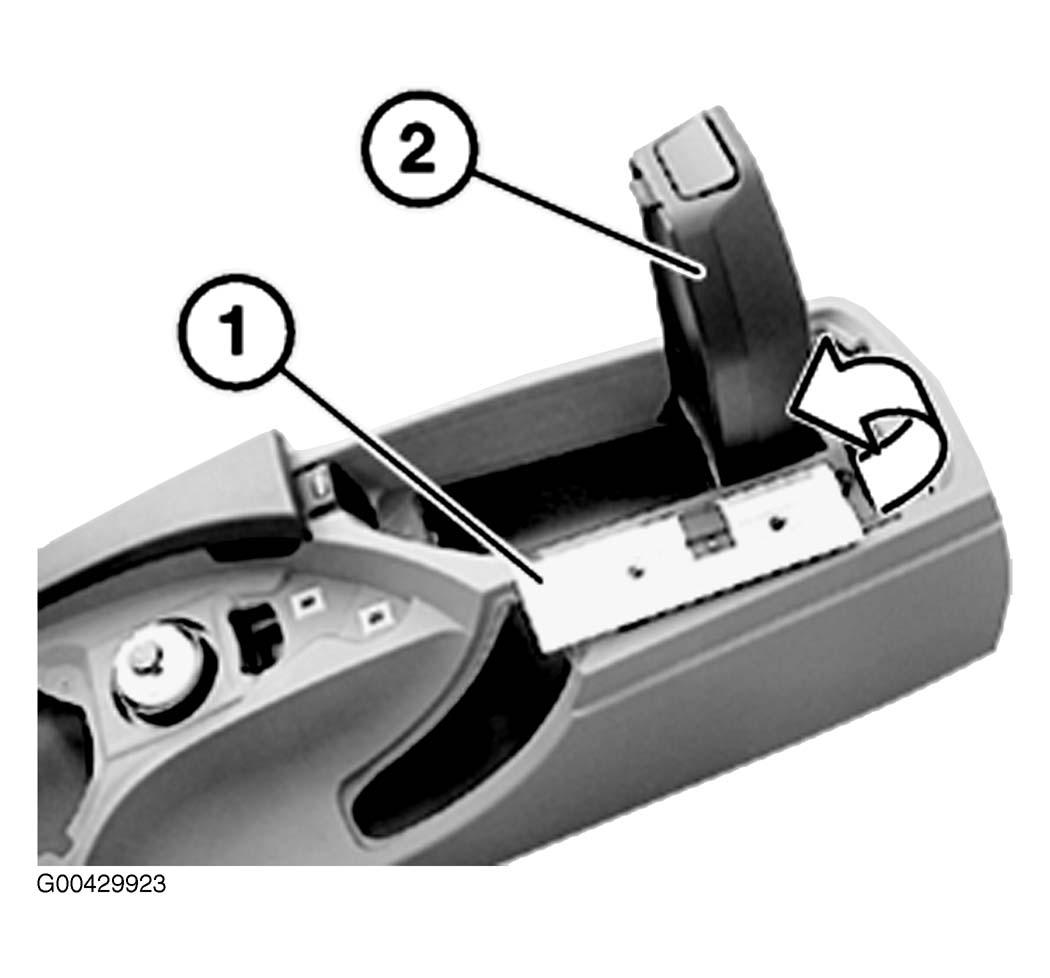

Feed out adjustment unit (1) with storage tray (2) towards rear/top.

Fig 2: Feeding Out Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

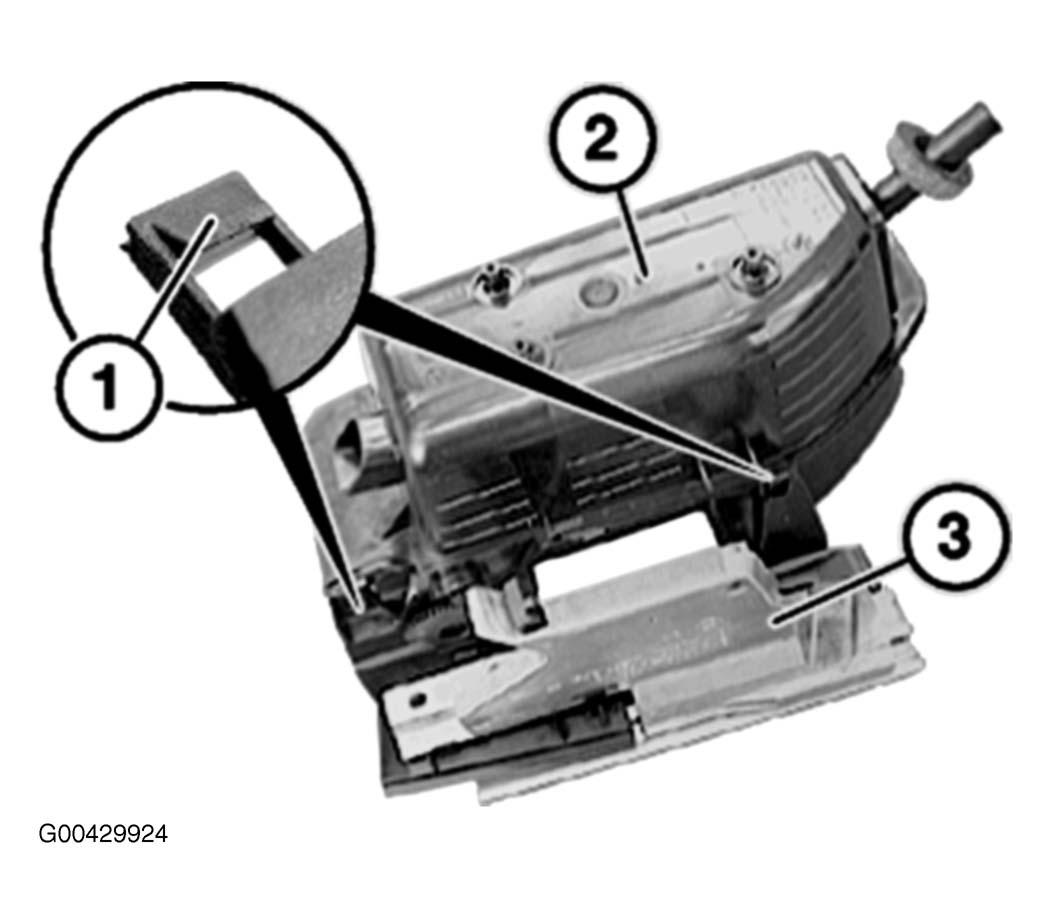

Release catches (1) on storage tray (2) and remove adjustment unit (3).

Fig 3: Releasing Catches On Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

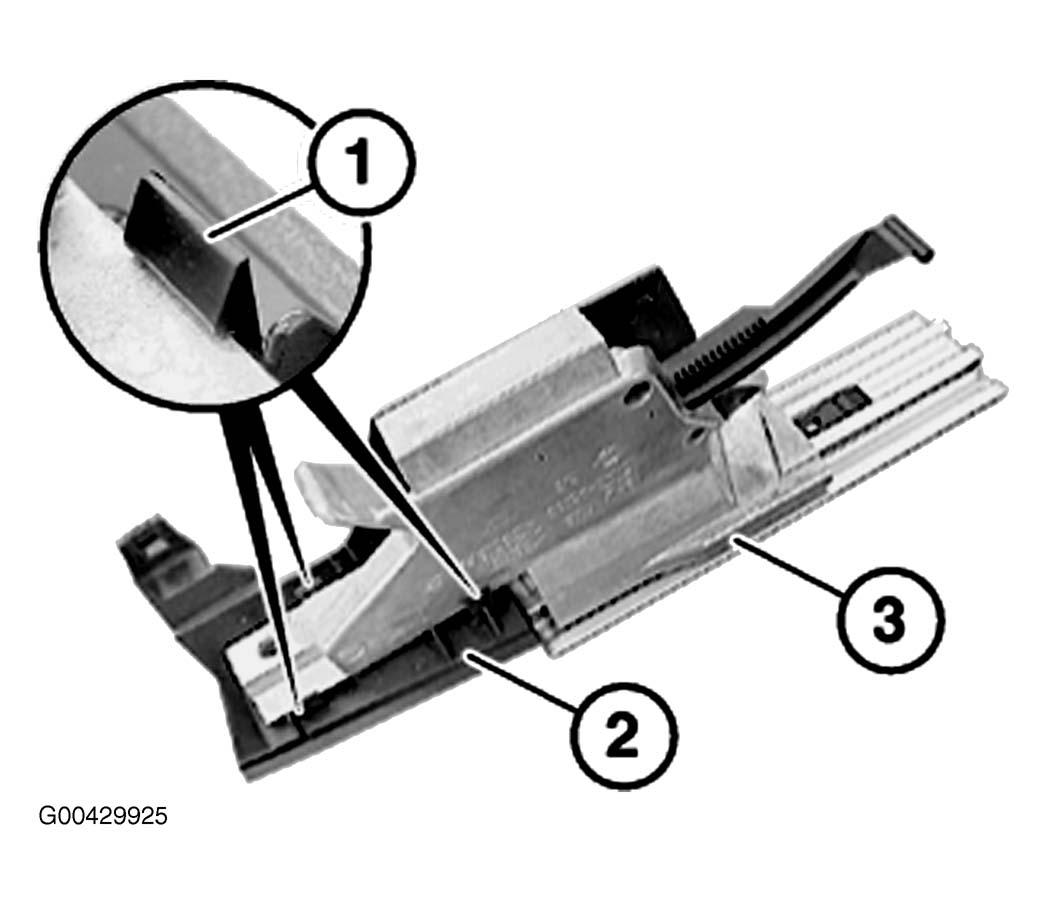

Release catches (1) on trim (2) and remove trim (2) from adjustment unit (3).

Fig 4: Releasing Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
