51 16... Removing and installing/replacing center console cover

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Version without rear console:

Remove REAR INSERT

Remove REAR COMPARTMENT FRESH AIR GRILLE

Remove REAR STORAGE TRAY FINISHER

Version with rear console:

Remove REAR CONSOLE

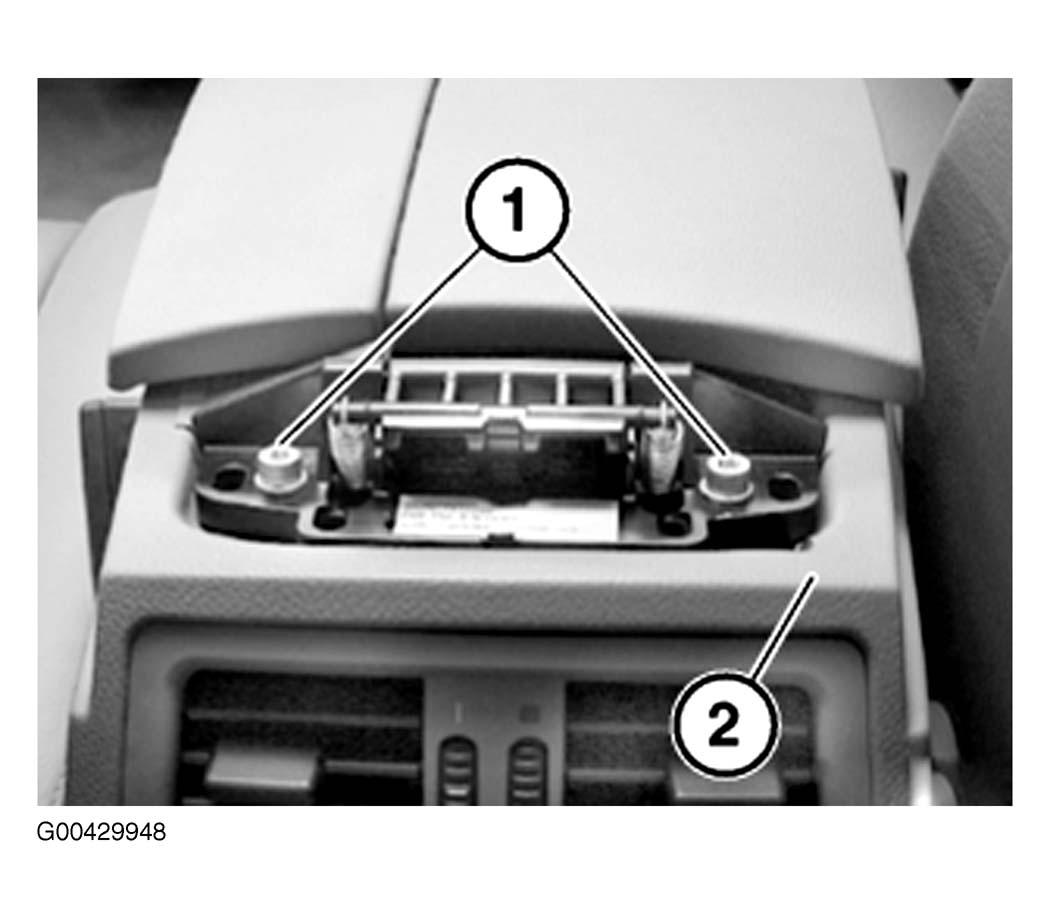

Release screws (1), and remove center console (2).

Fig 1: Releasing Screws & Removing Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

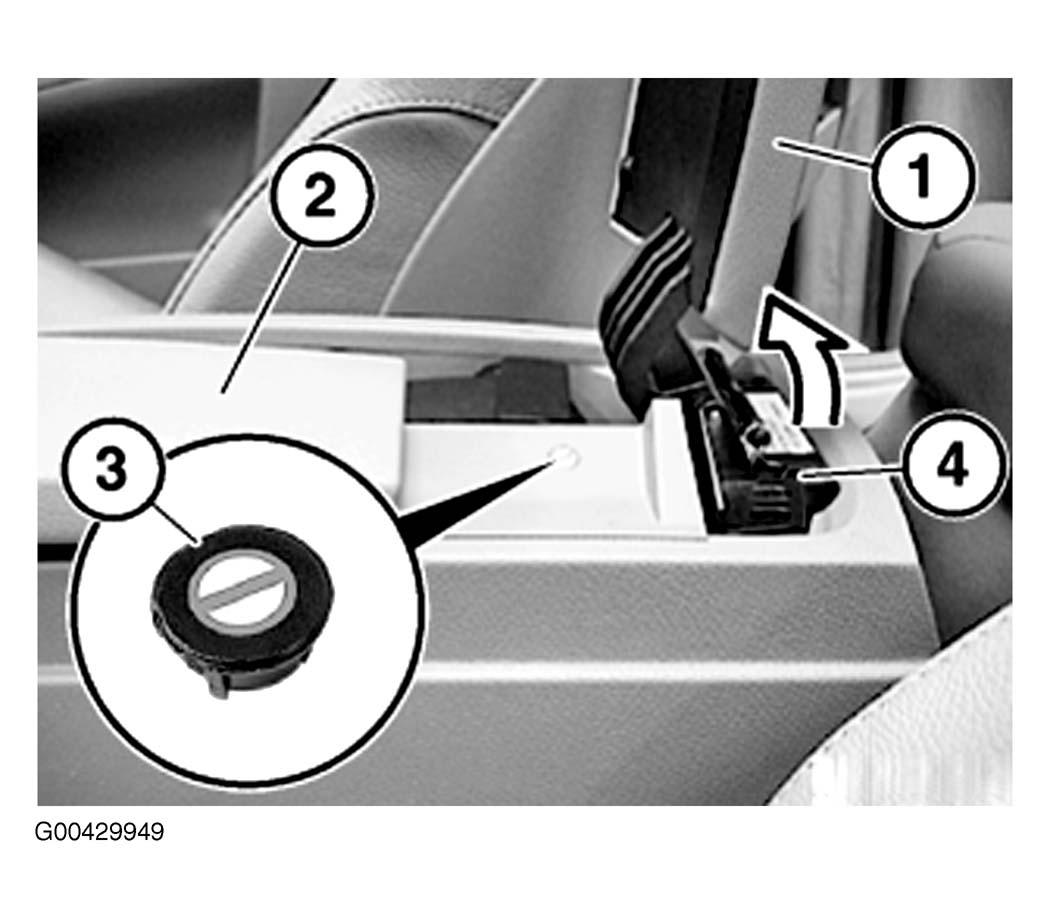

Version with center armrest (2):

Slide center armrest (2) forwards.

Lever out cap (3) and release screw underneath.

Open cover (1).

Feed out cover (1) with retaining plate (4) towards rear/top.

Fig 2: Feeding Out Cover With Retaining Plate Toward Rear/Top

Courtesy of BMW OF NORTH AMERICA, INC.
