51 16... Removing and installing/replacing center armrest

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Slide center armrest (1) forwards.

Lift out center armrest (1) at rear and pull off towards front.

  1. 2 Center console

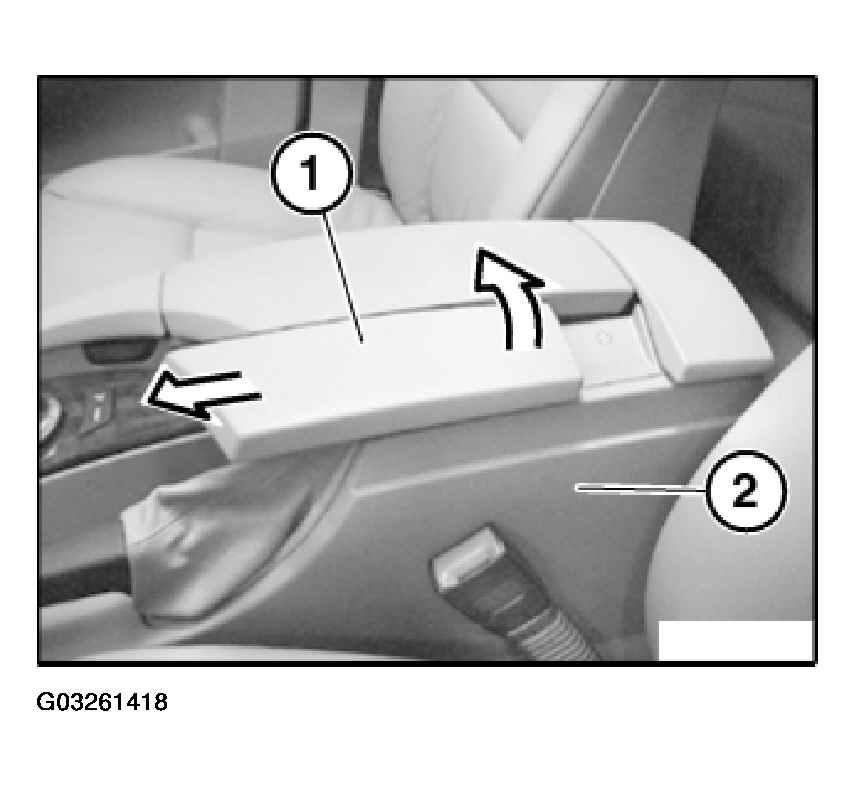

Fig 1: Sliding Center Armrest
G03261418Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of center armrest (3) must not be damaged or missing:

  1. Retaining lugs
  2. Guide

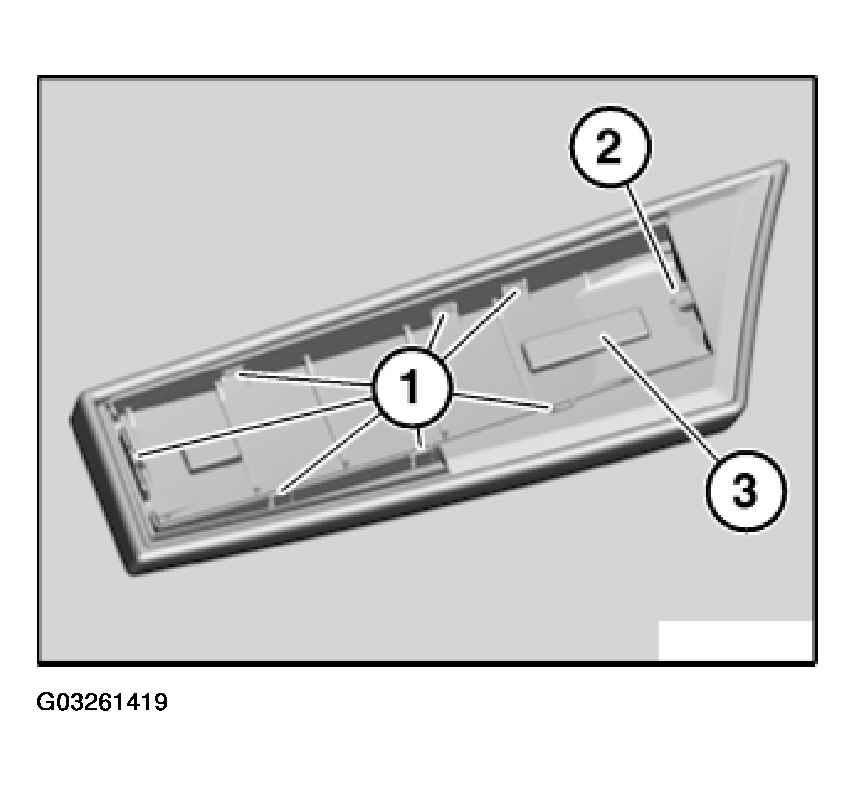

Fig 2: Identifying Parts Of Center Armrest
G03261419Courtesy of BMW OF NORTH AMERICA, INC.
