33 55 000 Removing and installing/replacing rear anti-roll bar
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove both ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .

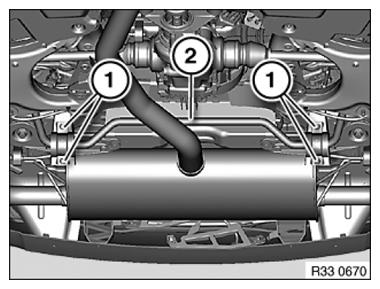

Release screws (1).
Replacement only: Remove BOTH RUBBER MOUNTS FROM STABILIZER .
Turn anti-roll bar (2) and remove sideways.
Installation:
Check BOTH RUBBER MOUNTS FOR DAMAGE , replace if necessary.
Align stabilizer centrally.
Tightening torque 33 55 1AZ .
