33 55 021 Replacing both rubber mounts for stabilizer mounting

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove STABILIZER FROM REAR AXLE CARRIER .

IMPORTANT: Circo Light must not be used between stabilizer and rubber mount!

Remove retaining bracket (1) and rubber mount (2) from stabilizer.

Installation:

Coat rubber mount with Circo Light to install retaining bracket.

Fig 1: Identifying Rubber Mount And Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep stabilizer clean and free of oil and grease.

Mount rubber mount (1) by way of slot (2) as pictured on stabilizer.

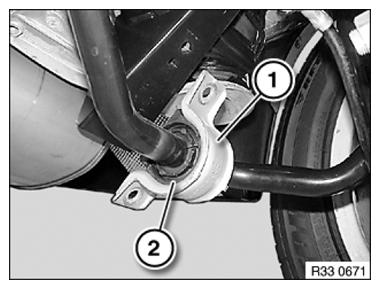

Fig 2: Identifying Stabilizer Rubber Mount And Slot Position

Courtesy of BMW OF NORTH AMERICA, INC.
