33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
.

Unscrew nuts (1).

Remove anti-roll bar link (2).

Installation note:

Replace self-locking nuts.

Tightening torque 33 55 2AZ .

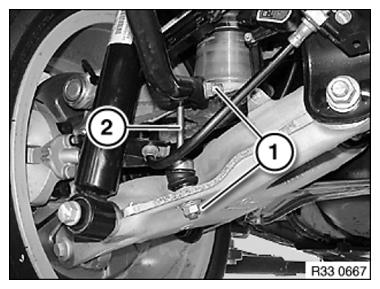

Fig 1: Identifying Anti-Roll Bar Link And Nut
G08528063Courtesy of BMW OF NORTH AMERICA, INC.
