33 32 125 Replacing a ball joint in lower steering stub / wheel carrier

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove integral link .
Remove anti-roll bar link from swinging arm .
Remove shock absorber from swinging arm .

Reworking special tool:

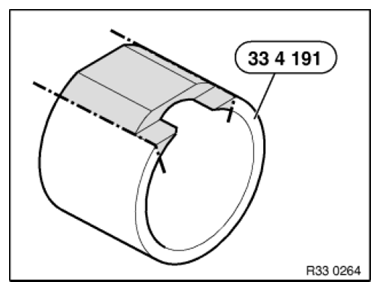

Cut highlighted area out of special tool 33 4 191 and then deburr.

Fig 1: Identifying Special Tool (33 4 191)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlamp (1).

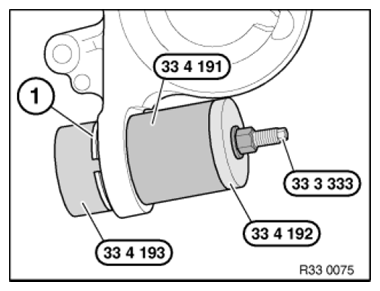

Pull out ball joint with special tools 33 4 193 , 33 4 191 , 33 4 192 and 33 3 333 .

Slotted side of special tool 33 4 191 must point to wheel carrier.

Installation note:

Install new circlamp (1).

Fig 2: Identifying Special Tools Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

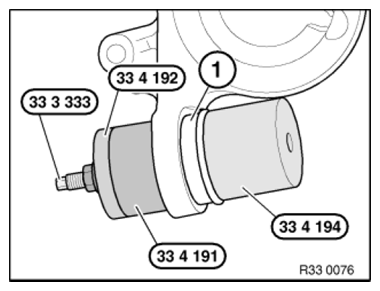

Fit new ball joint (1) with special tools 33 3 333 , 33 4 192 , 33 4 191 and 33 4 194 to limit position.

Fig 3: Identifying Special Tools Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel alignment . See 32 00 150 KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD n
