33 32 051 Removing and installing/replacing left or right push rod/integral link

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the integral link is detached from the wheel carrier or swinging arm, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Necessary preliminary tasks

Remove REAR WHEEL .
Tension COIL SPRING (and leave on vehicle).
Version with ride-height control: Deactivate and empty AIR SPRING SYSTEM .

Release nut (1) and remove screw.

Release screw (2) and remove integral link (3).

Installation:

Replace self-locking nut.

First install swinging arm hand-tight, then tighten down screw (2).

Tighten screw/bolt connections in NORMAL POSITION .

Tightening torque (nut) 33 32 3AZ .

Tightening torque (bolt) 33 32 4AZ .

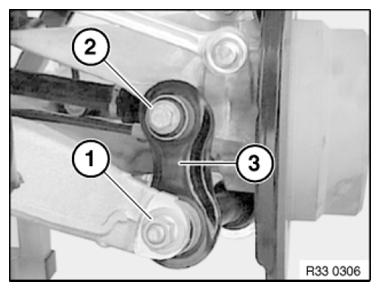

Fig 1: Identifying Integral Link, Mounting Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Activate and fill AIR SPRING SYSTEM .
Perform chassis alignment check . See 32 00 150 KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
