41 14 502 Replacing Complete Rear Left Wheel Arch (Rear Left Side Panel Removed): Notes

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS  for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

• (1) Reinforcement, C-pillar, bottom
• (2) Wheel arch, rear, outer half
• (3) Rear wheel arch
• (4) C-pillar reinforcement
• (5) Shaped parts, wheel arch (not pictured)

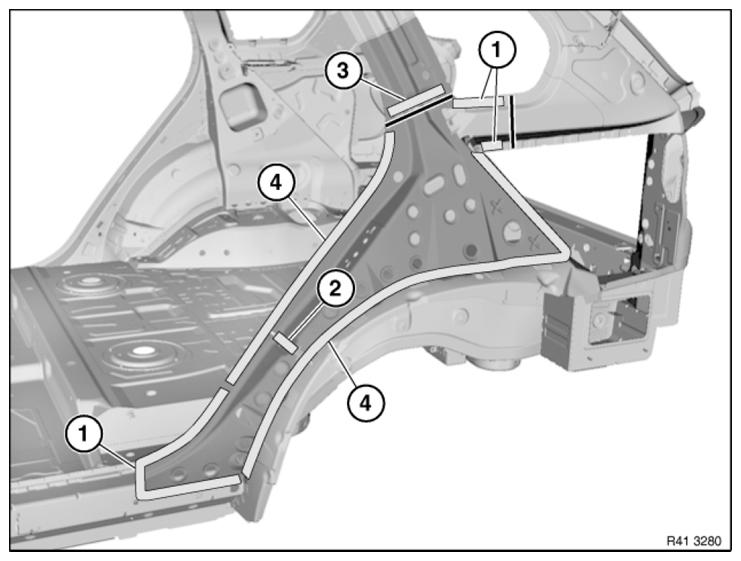

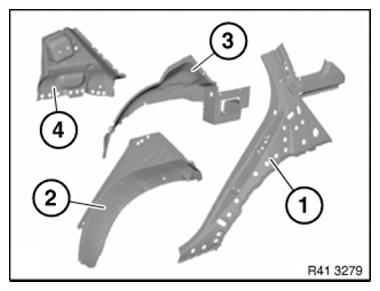

  Fig 1: Identifying C-Pillar Reinforcement And Rear Wheel Arch

  Courtesy of BMW OF NORTH AMERICA, INC.

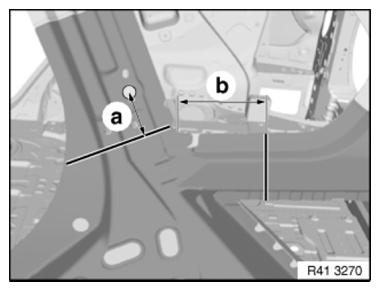

Mark severance cuts in accordance with specified measurements and cut.

Measurement a =70 mm below 15 mm dia. bore

Distance B = 130 mm

Installation:

Weld in Reinforcement plate(s)  at severance cuts.

Fig 2: Identifying Reinforcement Plates Severance Cutting Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Weld Joints And Cavity Acoustic Baffles Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

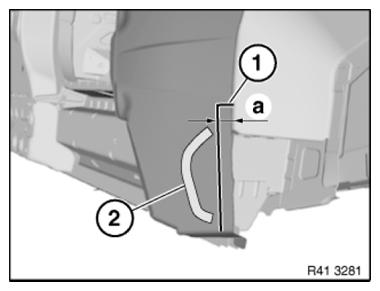

Mark severance cut (1) in accordance with measurement and cut.

Dimension a = 20 mm

Open weld joints in area (2).

Fig 4: Identifying Severance Cut And Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

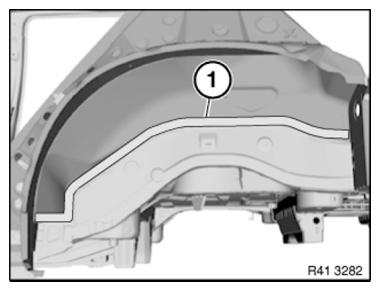

Open weld joints in area (1).

Fig 5: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

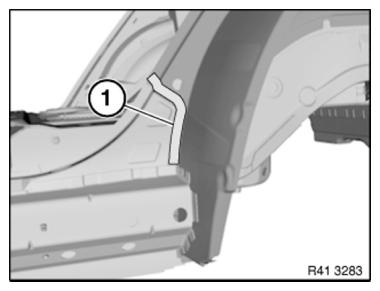

Open weld joints in area (1).

Fig 6: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

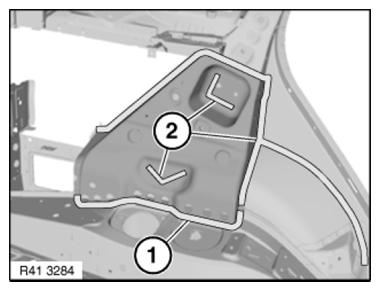

Open weld joints in area (1).

Installation:

Weld new component in areas (2) additionally.

Fig 7: Identifying Component Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

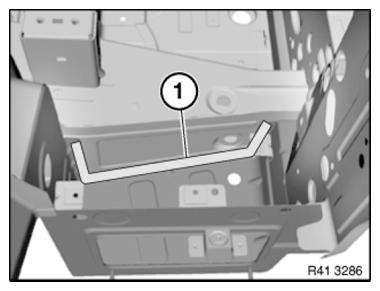

Open weld joints in area (1).

Fig 8: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

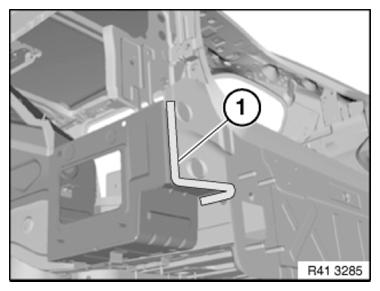

Open weld joints in area (1).

Fig 9: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

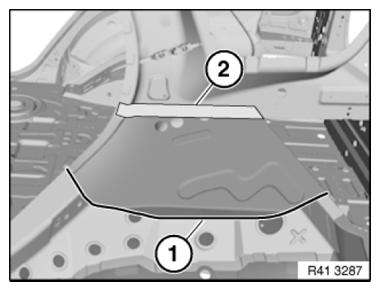

Roughly cut lower C-pillar reinforcement along line (1).

Open weld joints in area (2).

Fig 10: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
