41 11 301 Replacing Cover For Longitudinal Member With Left Door Pillar (Partial Replacement B-Pillar)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS  for repairs!

Place vehicle on straightening bench.

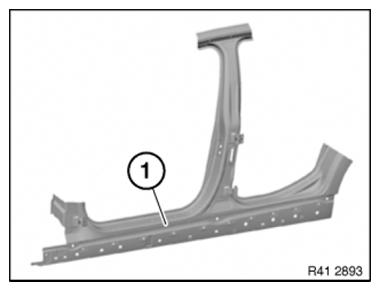

Following new body parts are required:

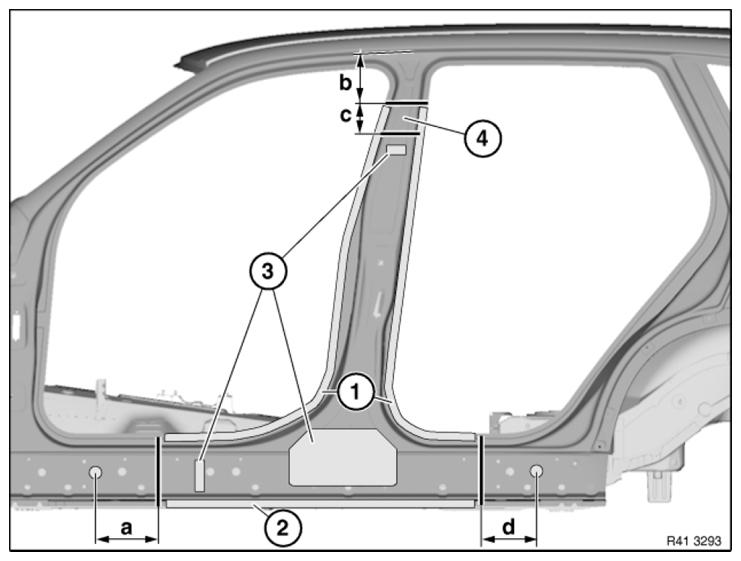

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.
Measurement a = approx. 200 mm behind hole dia. 25 mm.
Measurement b = approx. 150 mm from roof edge.
Measurement c = approx. 80 mm below cut b.
Measurement d = approx. 200 mm from center point of hole dia. 25 mm.
Open weld joints in areas (1) and (2).
Open adhesive bonds in areas (3).
Installation:
Cut out metal section (4) is needed again for sealing.
Weld in REINFORCING PANELS  at all severance cuts.
BOND  and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Service picture board - Aluminum and steel/bonding and welding).
Double number of rivets with respect to welding spots in area (2).

Mark severance cut in accordance with specified measurement and cut.

IMPORTANT: Cut outer metal plate only for following severance cut.

Measurement a = 190 mm from roof edge.

Installation:

Weld in reinforcement plate(s)  at severance cut.

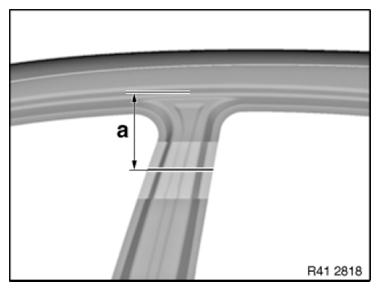

Fig 3: Identifying Roof Edge Dimension
G08528630Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: View from inside

Open weld joints in area (1).

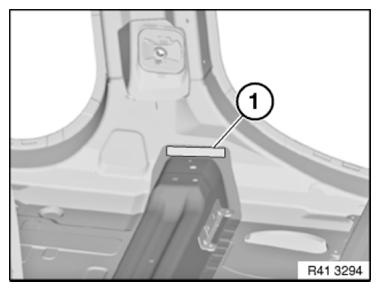

Fig 4: Identifying Weld Joints Area
G08528631Courtesy of BMW OF NORTH AMERICA, INC.

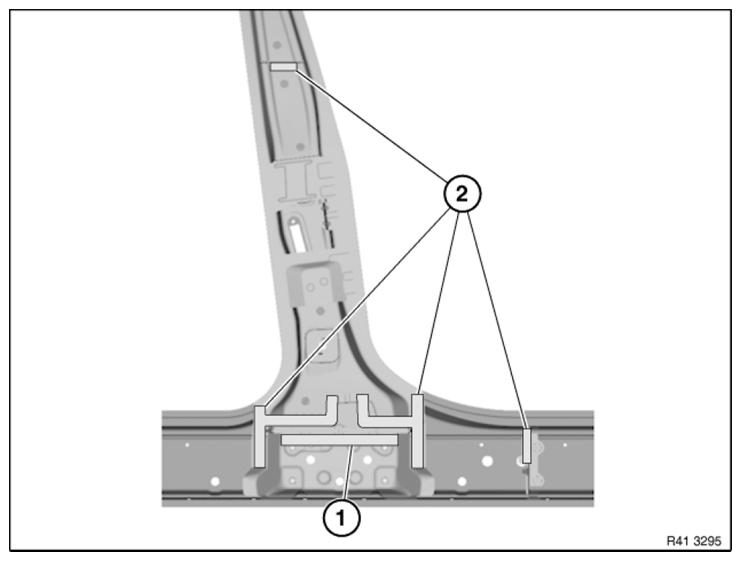

Fig 5: Identifying Adhesive Applying Areas On Cavity Acoustic Baffle
G08528632Courtesy of BMW OF NORTH AMERICA, INC.

Installation information:

Mark new part in accordance with severance cuts on vehicle and cut.

Apply window glass adhesive  See 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED)  or 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED)  to cavity acoustic baffle (1).

Apply ADHESIVE  in areas (2).

Adjust new part to fit with straightening attachment or universal mount.
