41 34 060 Replacing Outer And Inner Tail Panel Sections: Notes
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!

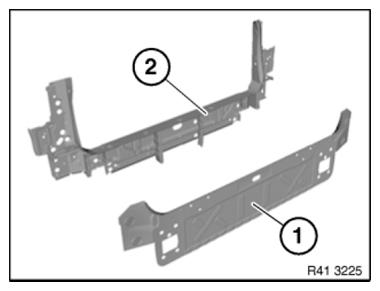

Following new body parts are required:
- (1) Rear trim panel
- (2) Rear trim, inner
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Adhesive K5a | 1 |
| Blind rivets N3 | 41 |
| Punch rivets N4 | 39 |
| Cavity sealing wax remover | |
| Cleaning agent R1 | 1 |
| EMC screws | 15 |
| Sealant D1 |
