41 34 038 Replacing Outer Tail Panel Section: Notes
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Observe (REPAIR STAGE 2) procedure!
Following new body parts are required:

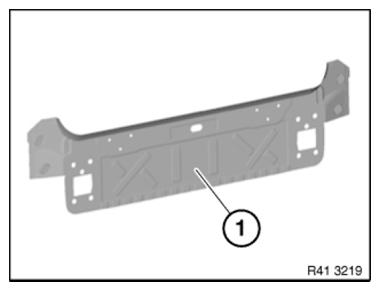

- (1) Rear trim panel
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 14 |
| Punch rivets N4 | 27 |
| EMC screws | 7 |
| Cavity sealing wax remover | |
| Cleaning agent R1 | 1 |
| Sealant D1 |
