41 21 510 Replacing Front Left Door Pillar (Front Side Panel Removed): Notes

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific procedure See 41 00... SPOT-WELD BONDING STEEL COMPONENTS or 41 00... OPENING ADHESIVE BONDS .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

(1) A-pillar, outer
(2) Support carrier, wheel arch, outer
(3) Shaped parts (not pictured)

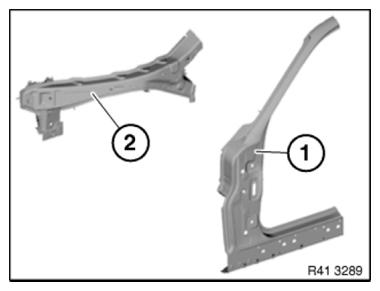

Fig 1: Identifying Outer A-Pillar And Outer Wheel Arch Support Carrier
Courtesy of BMW OF NORTH AMERICA, INC.

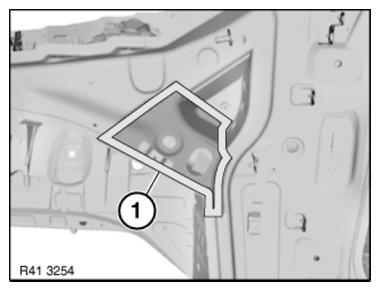

Open weld joints in area (1).

Fig 2: Identifying Weld Joints Area
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with measurement a and cut support carrier.

Measurement a = approx. 50 mm in front of bore dia. 20 mm.

Open weld joints in area (1).

Installation:

Weld in reinforcement plate(s) at severance cut.

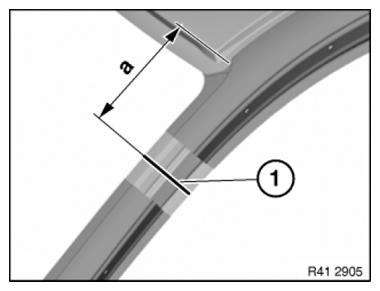

Fig 3: Identifying Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

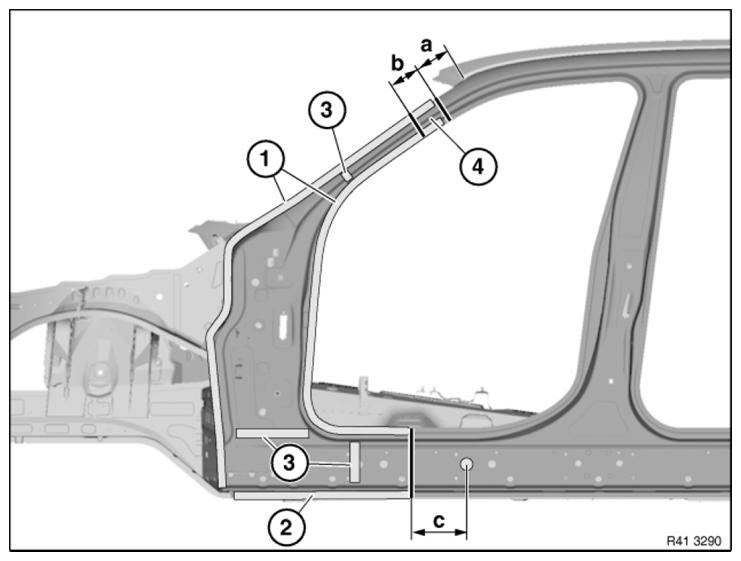

Fig 4: Identifying Roof Edge, Severance Cut And Hole Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.
Measurement a = 160 mm from roof edge.
Measurement b = 80 mm below severance cut a.
Measurement c = approx. 150 mm before hole dia. 25 mm.
Open weld joints in areas (1) and (2).
Installation:
Sheet panel (4) is needed again to seal cowl.
Apply window glass adhesive to cavity acoustic baffles See 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) or 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) (3).
BOND and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Service picture board - Aluminum and steel/bonding and welding).
Double number of rivets with respect to welding spots in area (2).

IMPORTANT: For following severance cut, do not damage sunroof water drain hose.

Mark severance cut (1) in accordance with measurement and cut.

Measurement a = approx. 200 mm from roof edge.

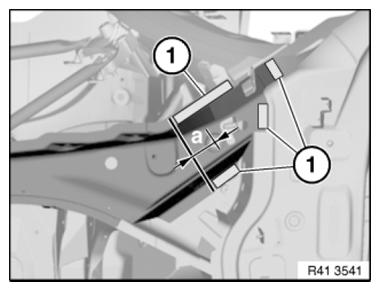

Fig 5: Identifying Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open adhesive bonds in areas (1).

Open weld joints in areas (2).

Feed out water drain hose for sliding sunroof (3).

Installation:

Do not weld new part in areas (2).

Make sure water drain hose is correctly seated.

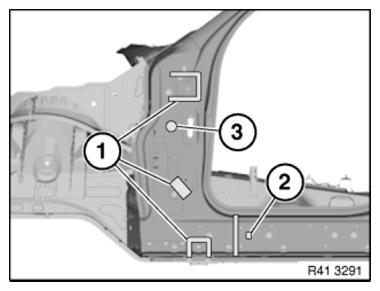

Fig 6: Identifying Sliding Sunroof, Adhesive Bonds And Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.
