52 26... Removing and installing middle fold adapter trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remover MIDDLE FOLD TRIM .
Remove REAR PANEL TRIM .
Partially remove SEAT COVER .

Release screw (1).

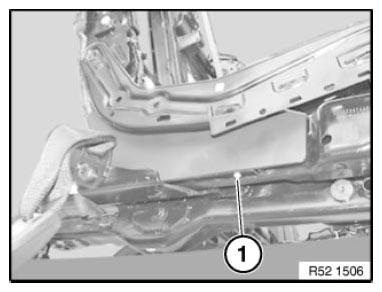

Fig 1: Locating Middle Fold Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

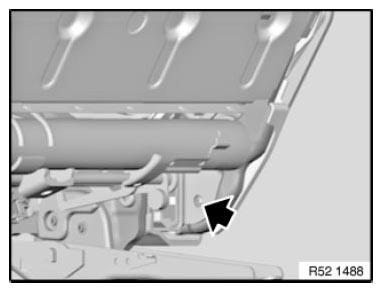

Fig 2: Locating Rear Panel Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim in marked area.

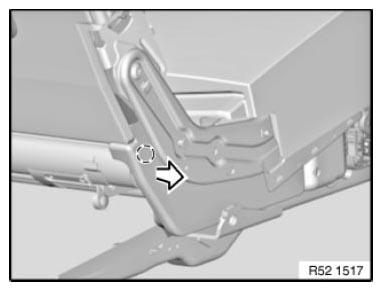

Fig 3: Removing Trim In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Feed trim (2) in upward direction out of seat mechanism.

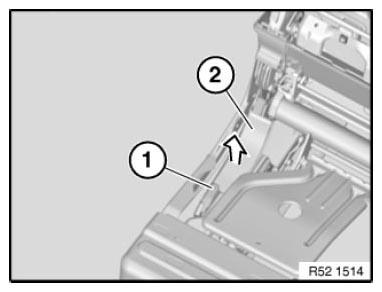

Fig 4: Removing Trim Out Of Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
