52 26 400 Replacing seat cover for left rear seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks

Remove REAR SEAT .
Remove rear panel TRIM .

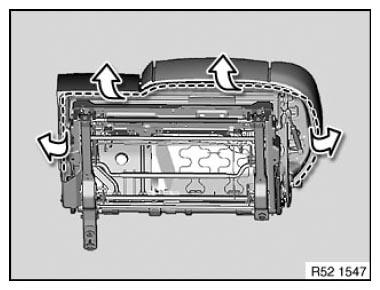

Disengage welt in marked area from seat mechanism.

Fig 1: Disengaging Welt In Marked Area From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

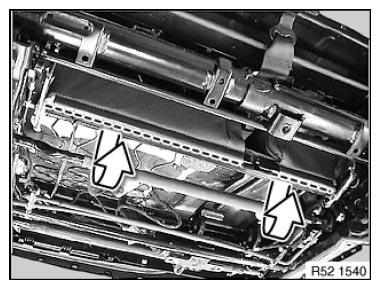

Disengage welt in marked area from seat mechanism.

Fig 2: Disengaging Welt In Marked Area From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

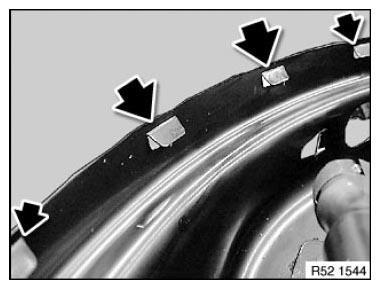

Make sure metal lugs in welt are correctly engaged.

Fig 3: Locating Metal Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating only:

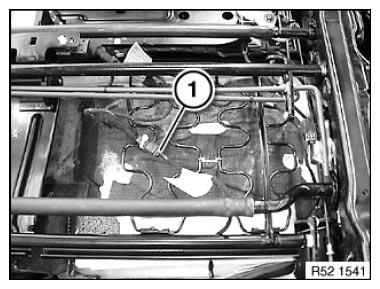

Unfasten plug connection and disconnect.

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

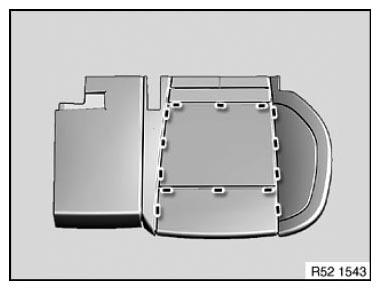

Release retainers in marked area.

NOTE: Remove all remnants of clips from cover and support.

Fig 5: Identifying Cover And Support Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

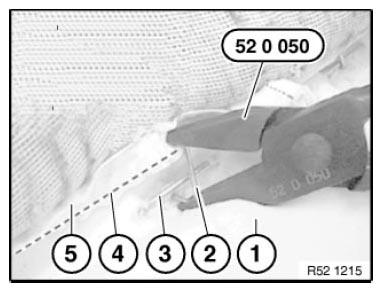

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

Fig 6: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing seat cover

Pull trim threads out of seat cover.

Cut new seat cover to size and insert trim wires.

Fig 7: Identifying Seat Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.
