52 26... Removing and installing middle fold trim (60 % rear seat)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove middle slide trim . See 52 26... REMOVING AND INSTALLING MIDDLE SLIDE TRIM (40 % REAR SEAT) or 52 26... REMOVING AND INSTALLING MIDDLE SLIDE TRIM (60 % REAR SEAT) at top only.
trim for center armrest . See 52 26... REMOVING AND INSTALLING/REPLACING THE COVER AND FRAME FOR THE SKI BAG or 52 26... REMOVING AND INSTALLING/REPLACING TRIM FOR CENTRE ARMREST .
Remove INNER FOLLOWER TRIM .

Release screw (1).

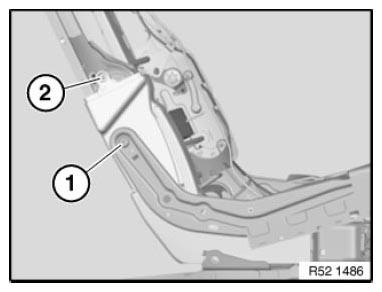

Fig 1: Identifying Inner Follower Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 52 26 27AZ .

Release screw (2).

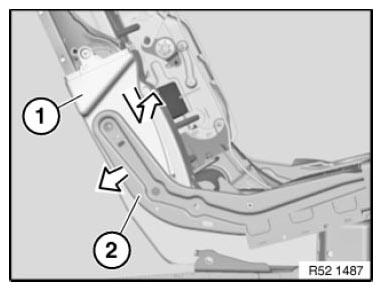

Fig 2: Identifying Middle Slide Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully tighten follower (2) on seat cushion frame.

Remove trim (1) in direction of arrow and feed out of seat mechanism.

Fig 3: Removing Trim From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
