22 32 050 Replacing cross member for transmission mounting

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 050

Necessary preliminary tasks

Remove rear UNDERBODY PROTECTION (not S63).
Remove SIDE UNDERBODY PANELLING (not S63).
Remove EXHAUST SYSTEM (not M57T2).
Remove heat shields (not S63).

Supporting transmission

Support transmission with special tools 23 4 050, 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

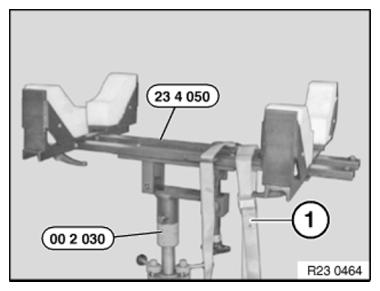

Fig 1: Support Transmission Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 22 32 4AZ .

Release screw (1).

Tightening torque 22 32 5AZ .

Remove cross member.

Fig 2: Locating Cross Member Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
