23... Universal BMW transmission take-up

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

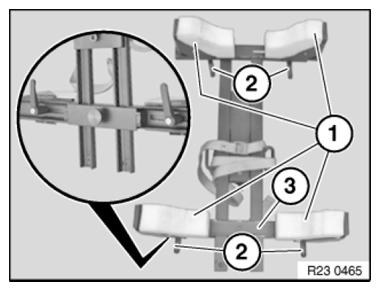

Fig 1: Identifying Front And Rear Supports, Carrier Of Rear Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission

Support transmission with special tools 23 4 050, 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

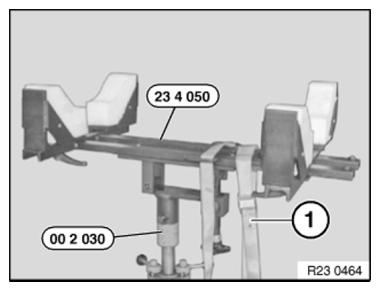

Fig 2: Supporting Transmission Using Special Tools (23 4 050, 00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.
