26 20 000 Removing and installing front propeller shaft (S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move vehicle under its own driving power once propeller shaft has been removed.

IMPORTANT: On four-wheel drive vehicles with defective, non-engaging drive, it is imperative that the following information is taken account of: Additional work when replacing propeller shaft .

Necessary preliminary tasks

Release screws (1) and remove air deflector (2). Tightening torque 24 00 6AZ .

Fig 1: Identifying Air Deflector And Mounting Screws

Release screws and remove heat shield (1). Tightening torque 24 00 7AZ .

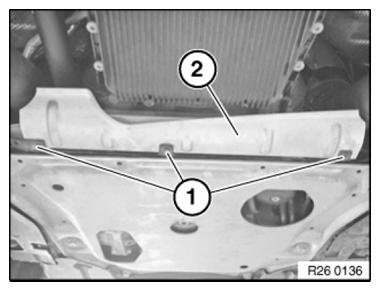

Fig 2: Releasing Screws And Removing Heat Shield

Release screws. Installation note: Replace ZNS bolts. Tightening torque 26 11 9AZ .

Fig 3: Locating Screws

Slide propeller shaft towards rear and remove.

Fig 4: Identifying Propeller Shaft

Installation note: Slide propeller shaft fully towards rear. Sealing cup (1) must snap audibly into place and rest entirely on dust guard (2).

Fig 5: Identifying Cup Seal And Dust Guard On Drive Shaft
