67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlight)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Xenon headlights: Danger to life due to high voltage! Therefore disconnect xenon headlights from the power supply. Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary Preliminary Tasks:

Remove left headlight. Refer to 63 12 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

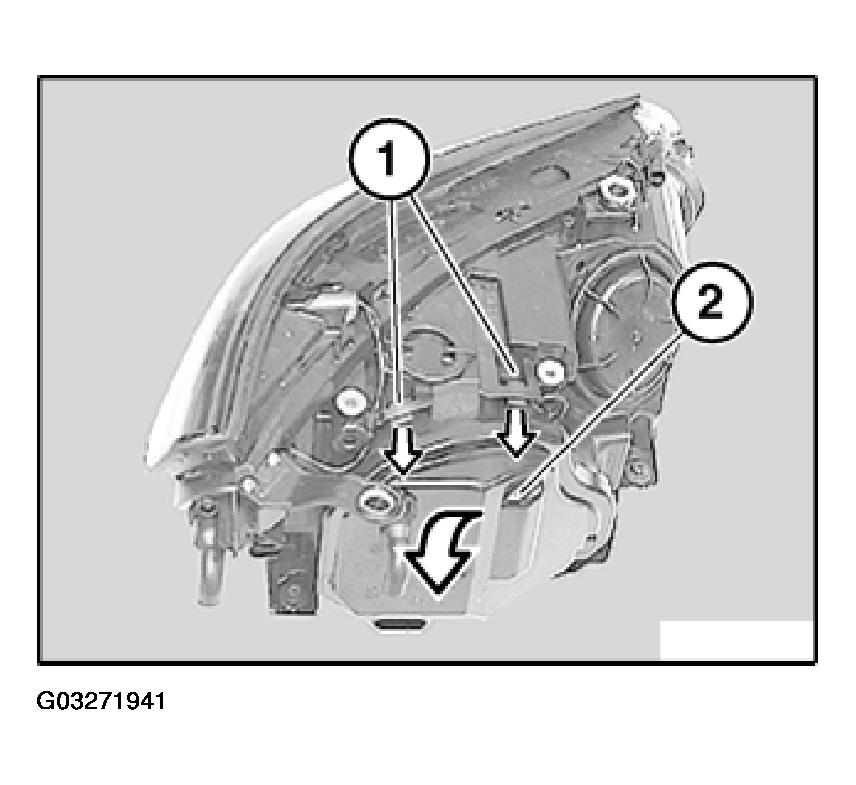

Unlock catches (1) and remove cap (2) in direction of arrow.

Fig 1: Removing Left Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

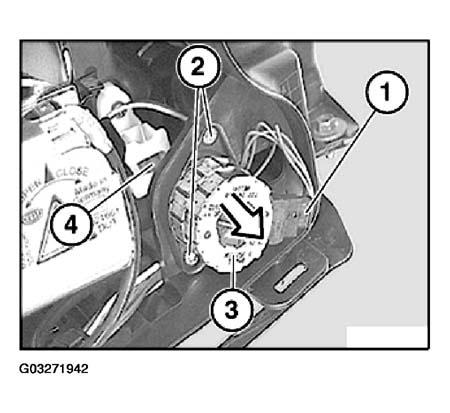

Unfasten plug connection (1) and disconnect.

Loosen screws (2).

Feed headlight vertical aim adjuster (3) out of mounting (4) and remove.

Installation:

Headlight vertical aim adjuster (3) must be correctly seated in mounting (4).

Fig 2: Identifying Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
