63 10 004 Adjusting headlights

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Comply with test preconditions for headlight adjustment. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

Adjust headlights at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

Adjustment screw primarily for vertical adjustment.
Adjustment screw primarily for lateral adjustment.

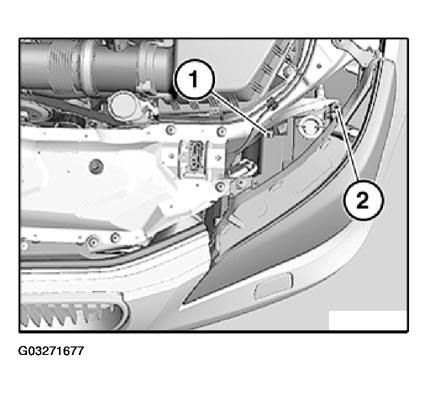

Fig 1: Adjusting Headlights At Adjusting Screws
Courtesy of BMW OF NORTH AMERICA, INC.
