66 54 010 Removing and installing complete night vision camera

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

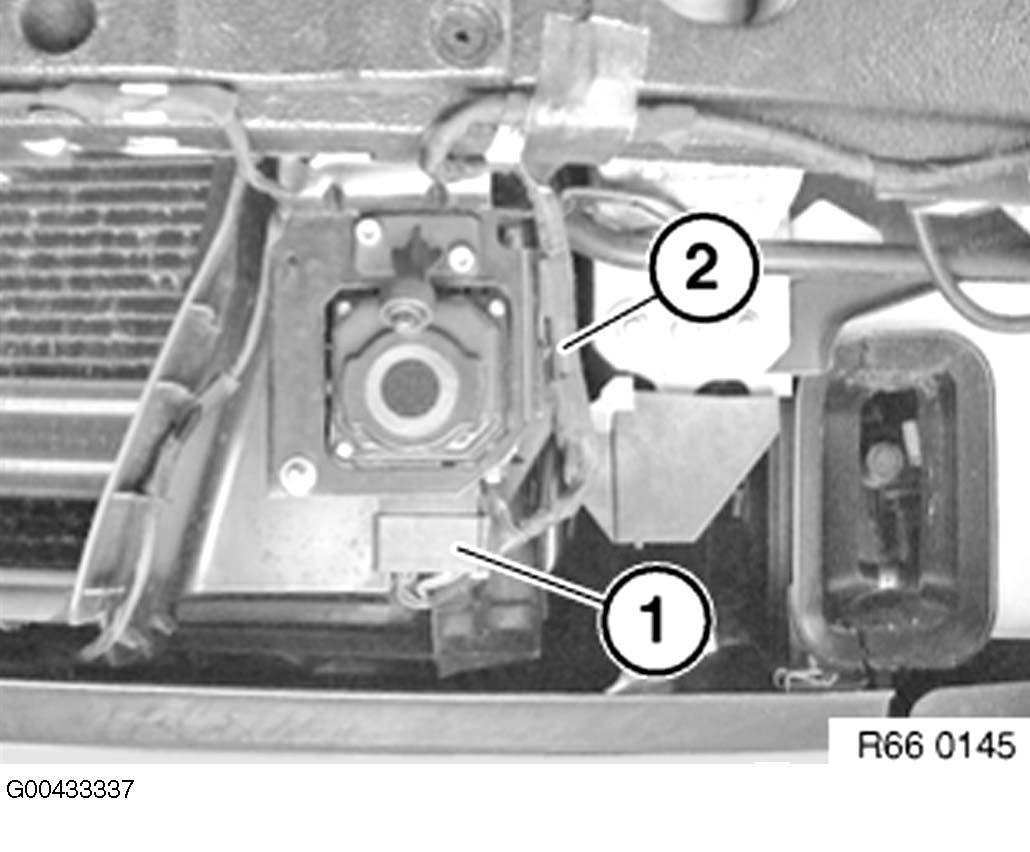

Disconnect plug connection (1).

Disengage cable guide (2).

Fig 1: Identifying Night Vision Camera Plug Connection

G00433337

Courtesy of BMW OF NORTH AMERICA, INC.

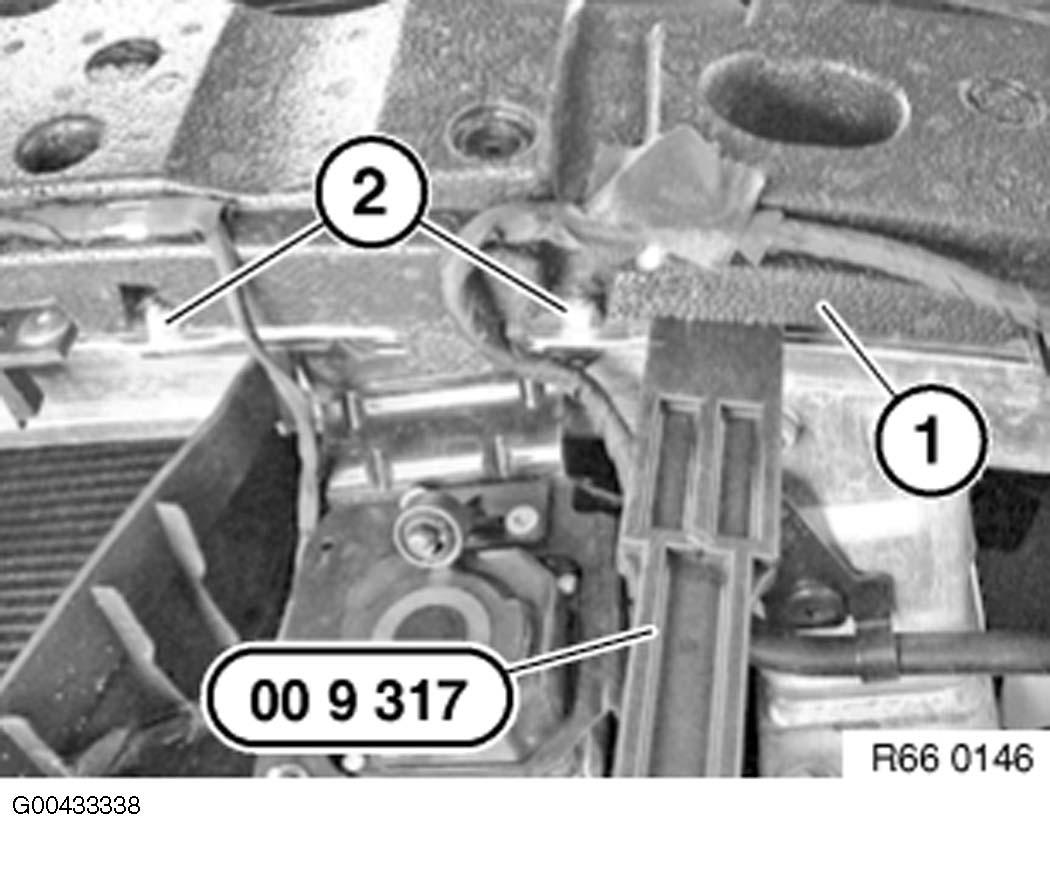

Gently lever out impact absorber (1) with special tool 00 9 317.

Unscrew nuts (2).

Installation:

Make sure impact absorber (1) is correctly seated.

Tightening torque, nut (4.5 N.m.), Torx bolt, (12 N.m.).

Fig 2: Removing Impact Absorber Using Assembly Wedge

G00433338

Courtesy of BMW OF NORTH AMERICA, INC.

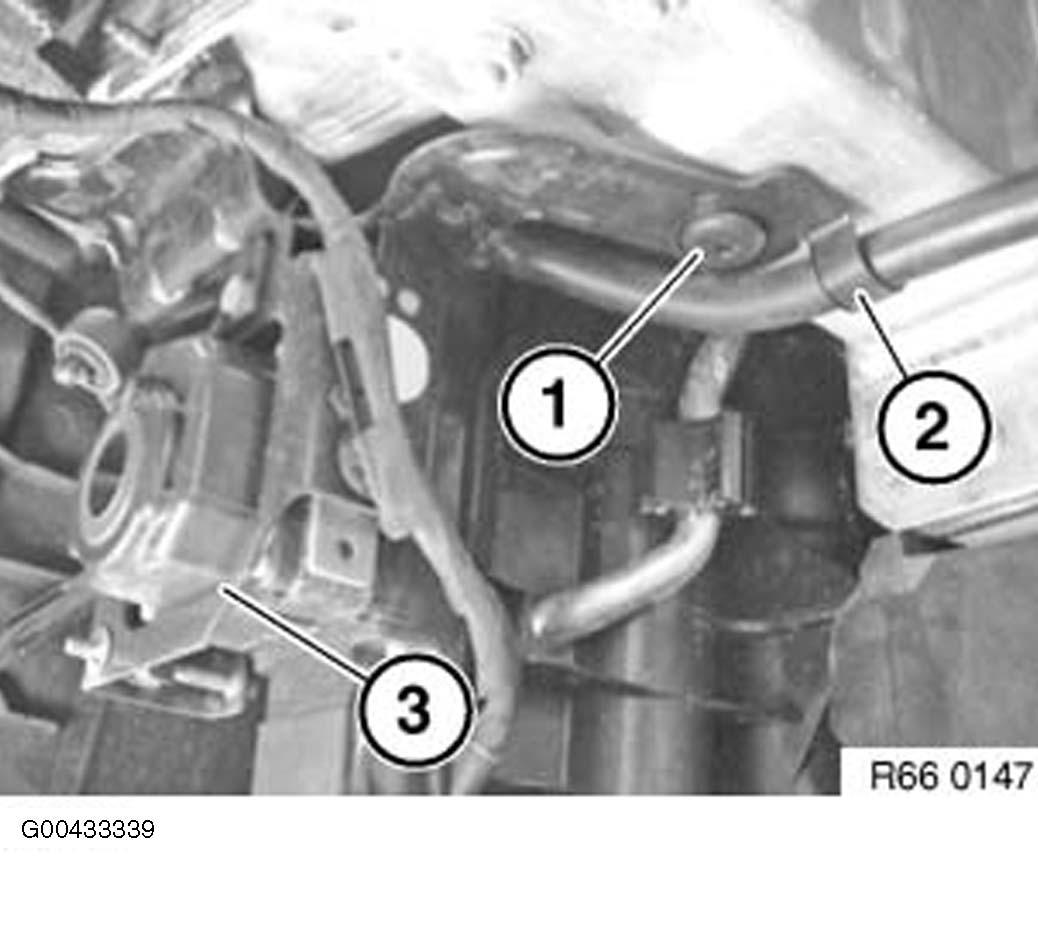

IMPORTANT: Secure night vision camera (3) against falling down.

Release screw (1) and disengage tube (2) from mounting.

Tightening torque, nut (4.5 N.m.), Torx bolt, (12 N.m.).

Remove night vision camera (3) complete with holder.

Fig 3: Removing Night Vision Camera

G00433339

Courtesy of BMW OF NORTH AMERICA, INC.

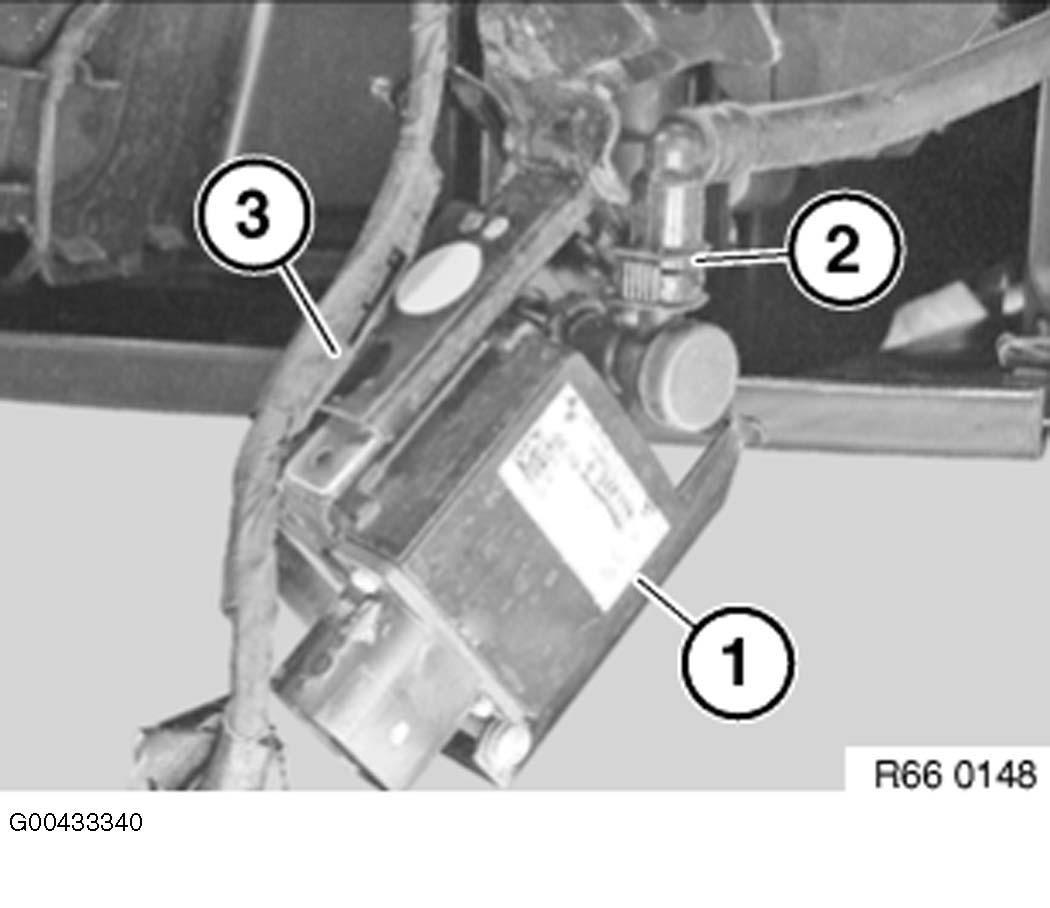

IMPORTANT: Secure night vision camera (1) against falling down.

Disconnect hose connection (2) and unclip cable fastener (3).

After Installation:

Fill up with washer fluid.

Replacement Only:

Replace night vision camera. Refer to 66 54 511 REPLACING NIGHT VISION CAMERA .

Fig 4: Locating Night Vision Camera Hose Connection

G00433340

Courtesy of BMW OF NORTH AMERICA, INC.
