66 54 511 Replacing night vision camera

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove night vision camera. Refer to 66 54 511 REPLACING NIGHT VISION CAMERA .

Release screw (1) on both sides.

Remove camera (2) from holder (3).

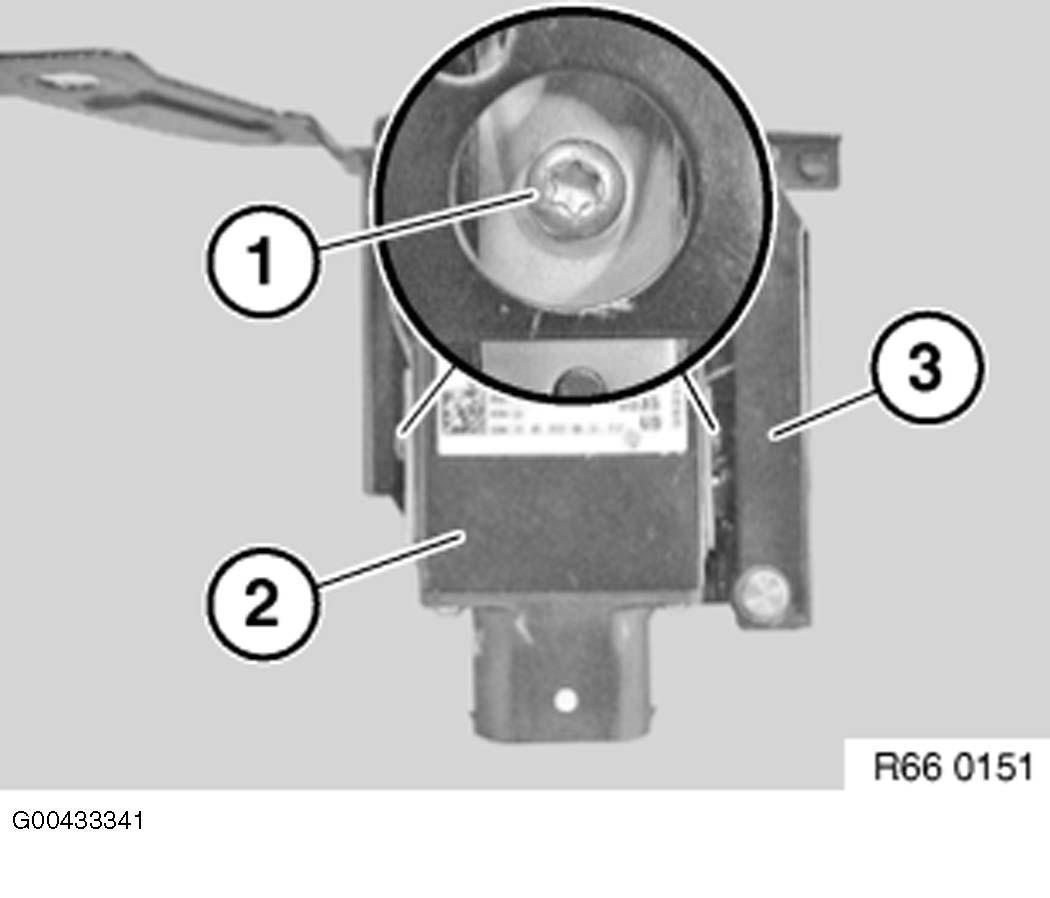

Fig 1: Locating Night Vision Camera Retaining Screws

G00433341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert camera (1) in holder (2).

Left guide pin (3) must be correctly seated in holder (2).

Apply screw securing adhesive to screw (4) and tighten screw.

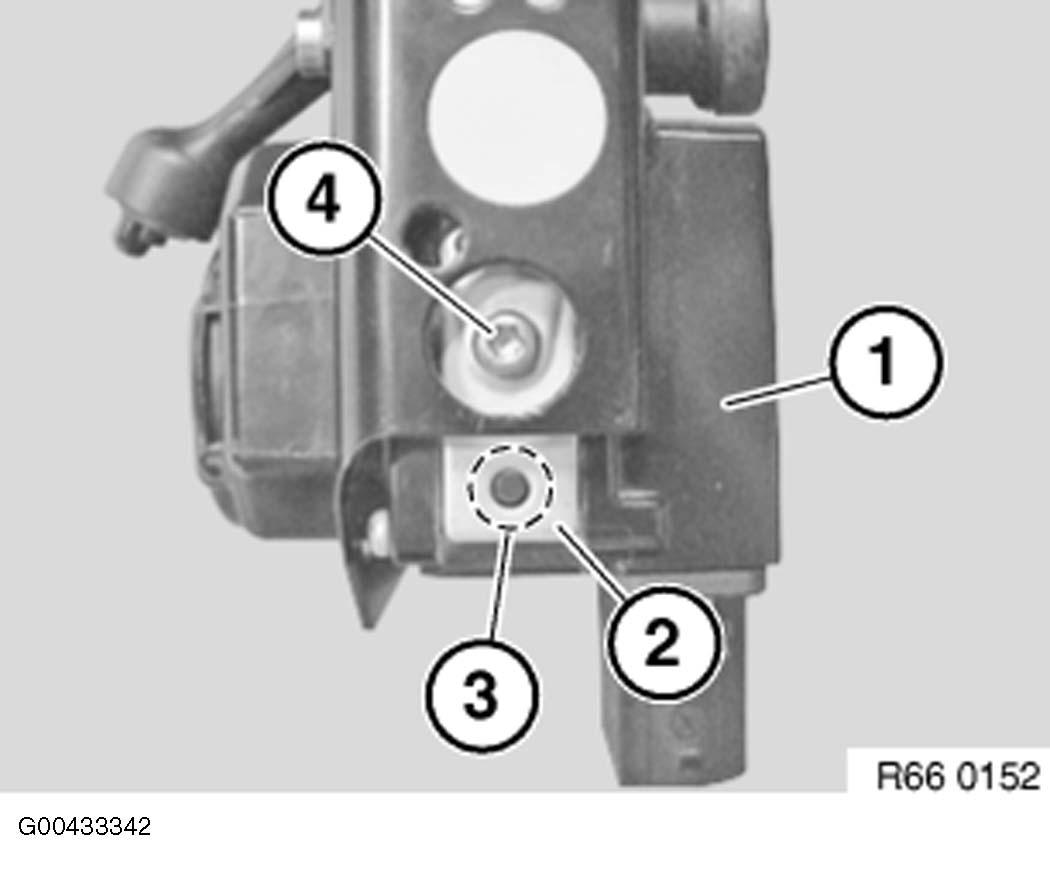

Fig 2: Identifying Left Guide Pin

G00433342

Courtesy of BMW OF NORTH AMERICA, INC.

Tab (1) must snap noticeably into holder (2).

Make sure guide pin (3) is correctly seated in holder.

Apply screw securing adhesive to screw (4) and tighten screw.

Installation:

Adjust night vision camera. Refer to 66 54 001 ADJUSTING NIGHT VISION CAMERA .

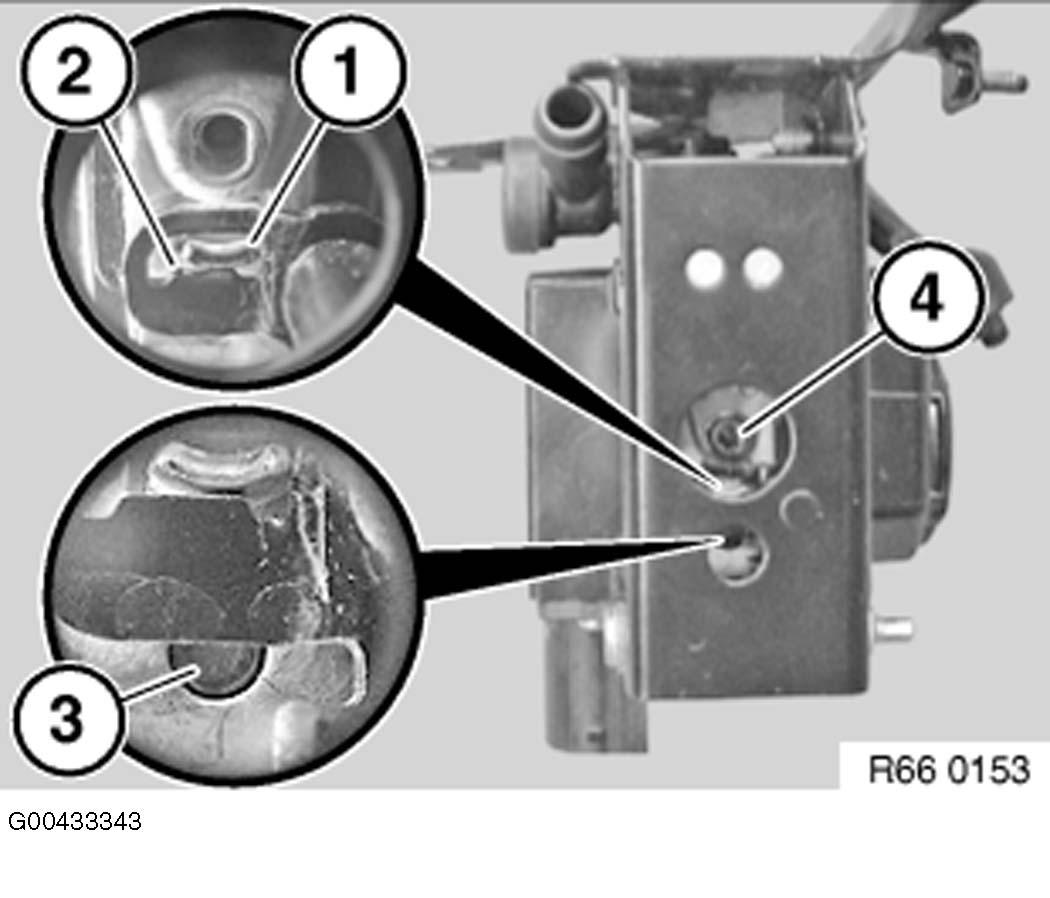

Fig 3: View Of Night Vision Camera In Holder

G00433343

Courtesy of BMW OF NORTH AMERICA, INC.
