61 35 965 Removing and installing/replacing rear parcel antenna for comfort access system
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove both trims for roof pillar at rear (rear). Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (REAR) .
- Remove both trims for roof pillar at rear (front). Refer to 51 43 255 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .
- Remove backrest for rear seat. Refer to 52 24 010 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (BASIC) .
- Remove panel for parcel shelf. Refer to 51 46 001 REMOVING AND INSTALLING TRIM FOR ODDMENTS TRAY (BACK SHELF WITH REAR WINDOW ROLLER BLIND) and 51 46 006 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

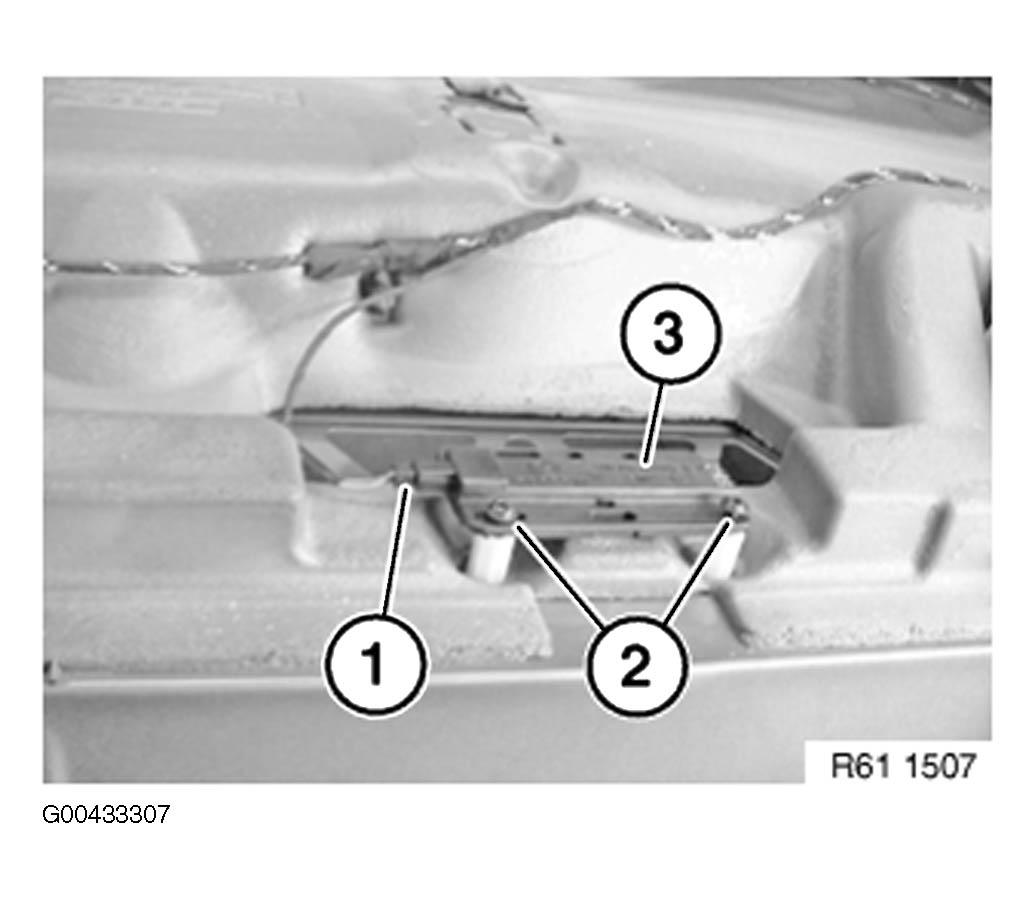

Disconnect plug connection (1).
Unfasten screws (2).
Remove interior antenna for comfort access system (3).
