52 24 010 Removing and installing/replacing backrest for rear seat (basic)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .
- Remove middle seat belt.
- Open lock on rear seat back (emergency actuator). Refer to 52 26 ... EMERGENCY ACTUATOR FOR REAR SEAT BACKREST .

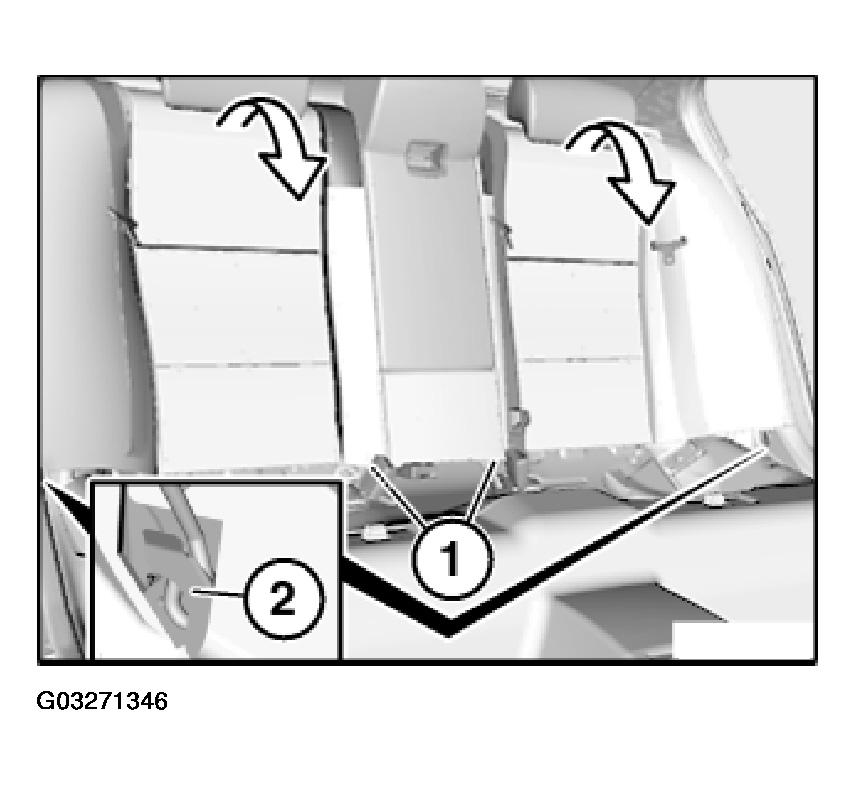

Release screws (1).
Feed backrest out of belts and lift out towards front.
Installation:
Pay attention to precise guidance (2).
Tightening torque, refer to 52 24 1AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .
