51 46 006 Removing and installing/replacing trim for rear parcel shelf

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Remove panel for roof pillar at front left/right. Refer to 51 43 255 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .

Version without through-loading system:

Remove backrest for rear seat. Refer to 52 24 010 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (BASIC) .

Version with through-loading system:

Fold back backrest completely.
Remove left/right side section on rear seat backrest. Refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST (THROUGH-LOADING) .

Version with rear window roller blind only:

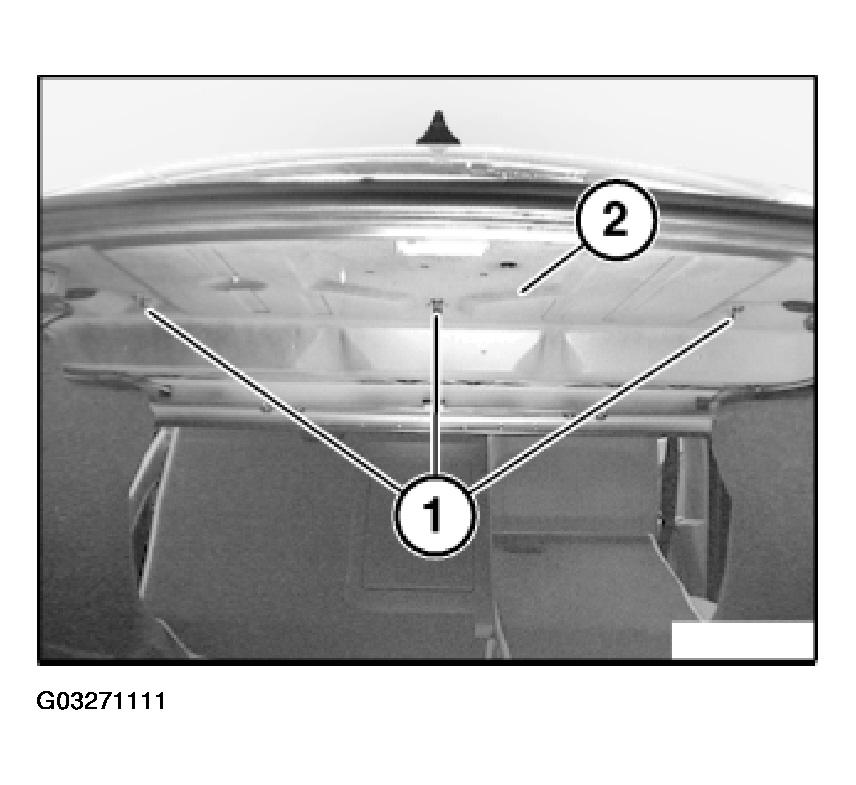

Release screws in luggage compartment.

Installation:

Tightening torque, refer to 51 46 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Fig 1: Locating Retaining Screws In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear window roller blind only:

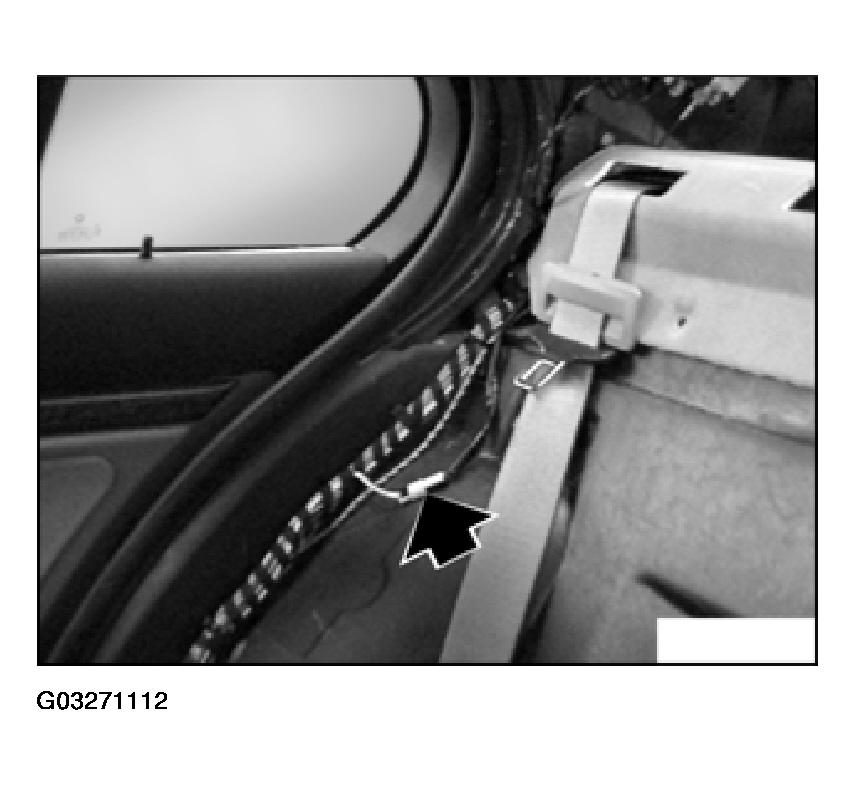

Disconnect plug connection (1).

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

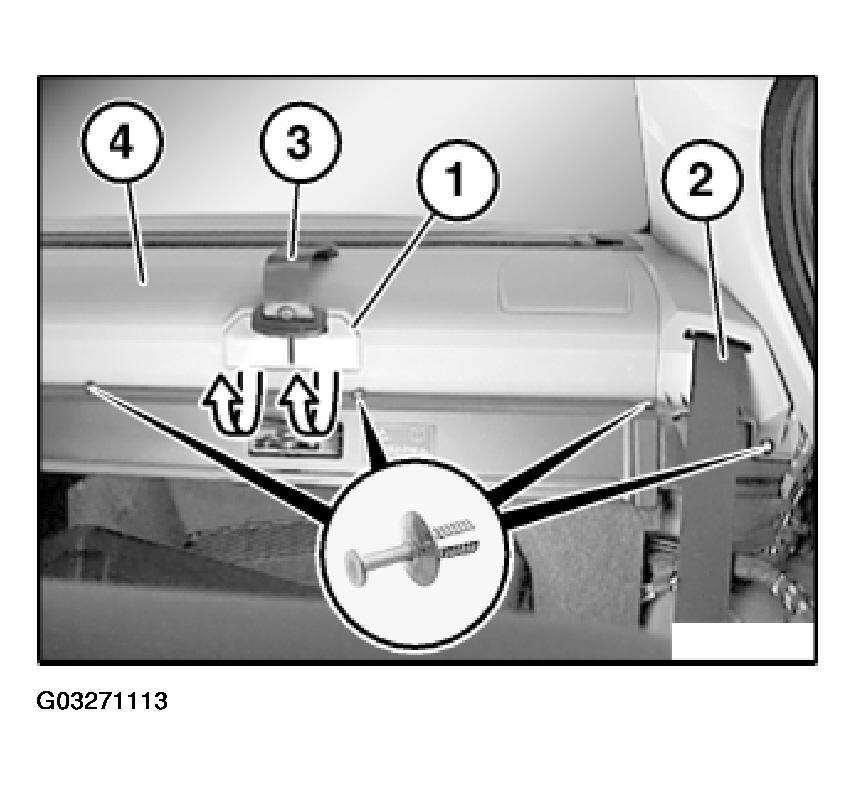

Release center seatbelt finisher strip (1) and feed out seatbelt strap (3).

Release expander rivet and pull rear parcel shelf (4) forwards. Feed out left/right seatbelt strap (2) and disconnect speaker plug connection.

Fig 3: Locating Rear Parcel Shelf Expander Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

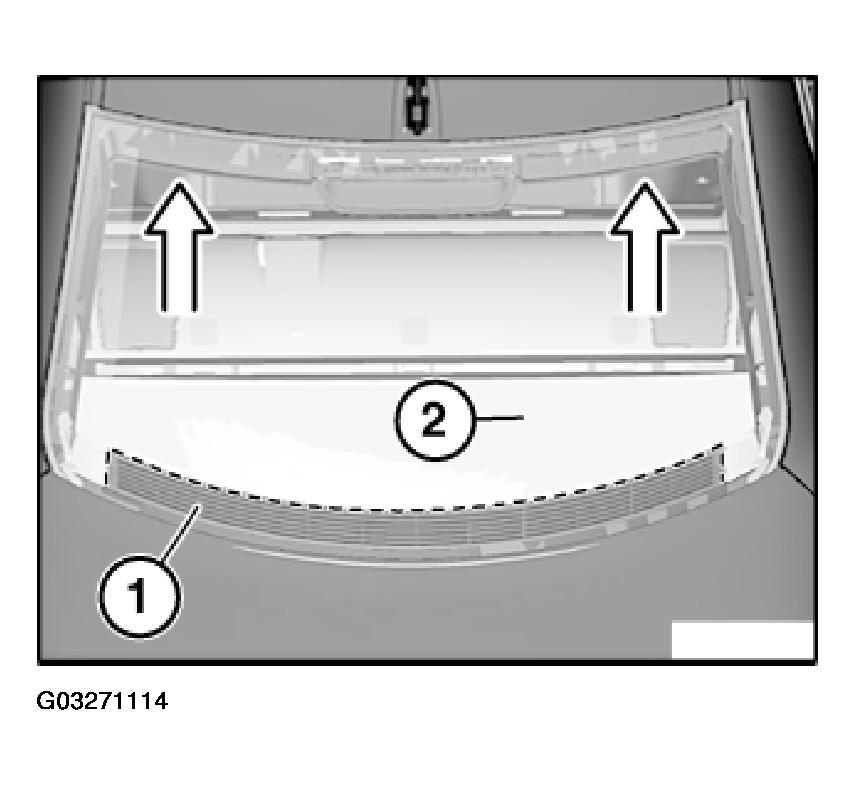

Pull out rear parcel shelf (2) towards front.

Installation:

Slide rear window shelf (2) correctly into ventilation grill guides (1).

Fig 4: View Of Rear Parcel Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

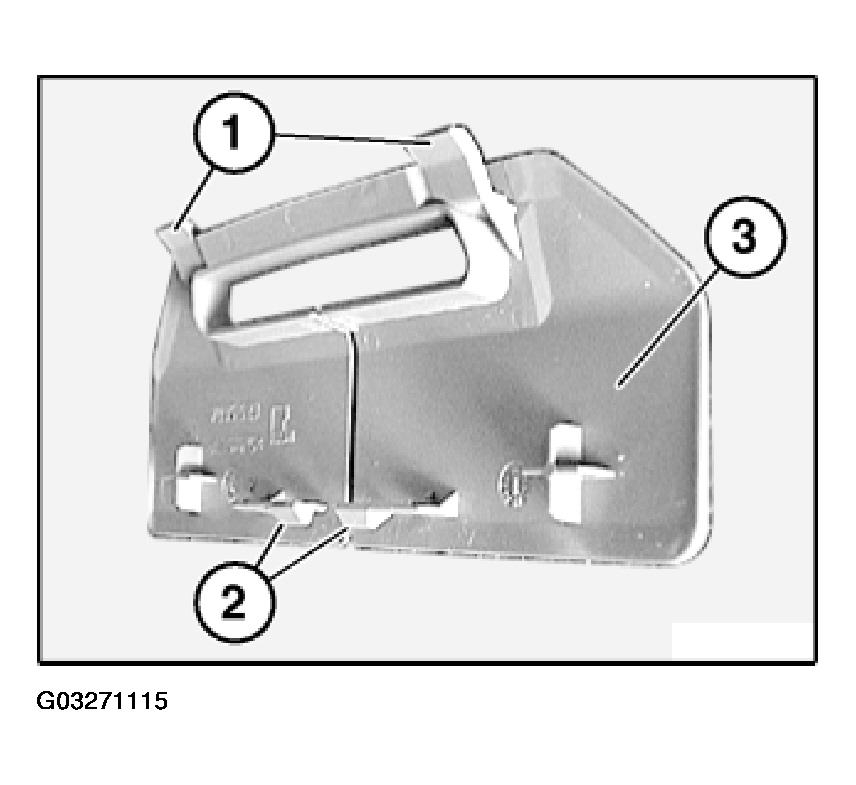

Following parts of center seatbelt finisher strip (3) must not be damaged or missing:

Guides.
Retaining lugs.

Fig 5: View Of Guides And Retaining Lugs
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing trim for rear parcel shelf" ends here.

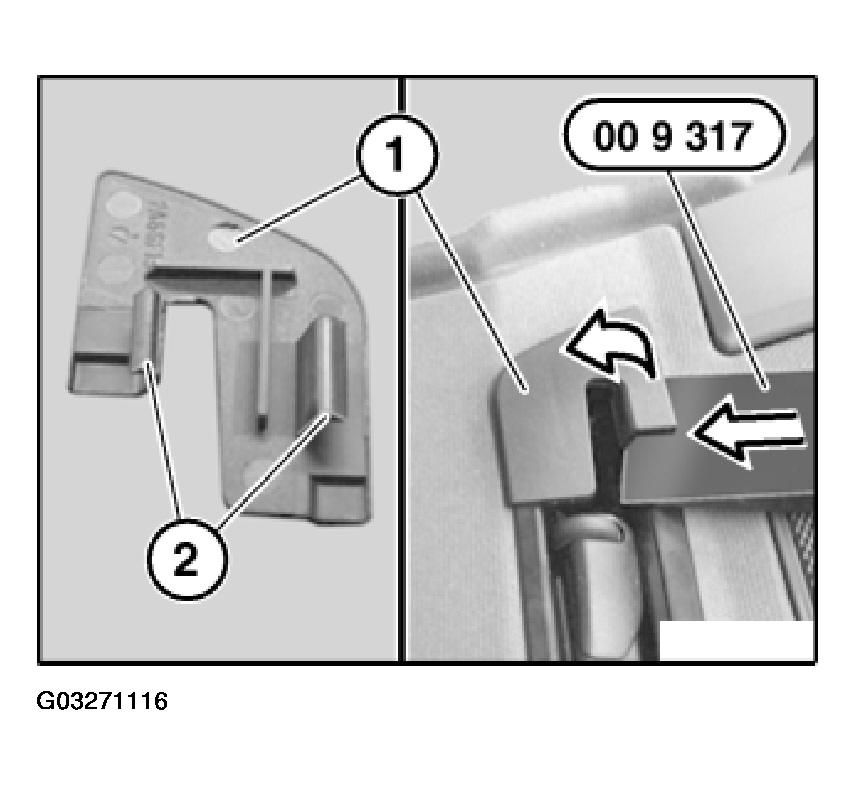

If necessary, remove or replace rear window roller blind: Lever out protective cap (1) on left/right with special tool 00 9 317.

Installation:

Retaining lugs (2) of protective caps (1) must not be damaged or missing.

Fig 6: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

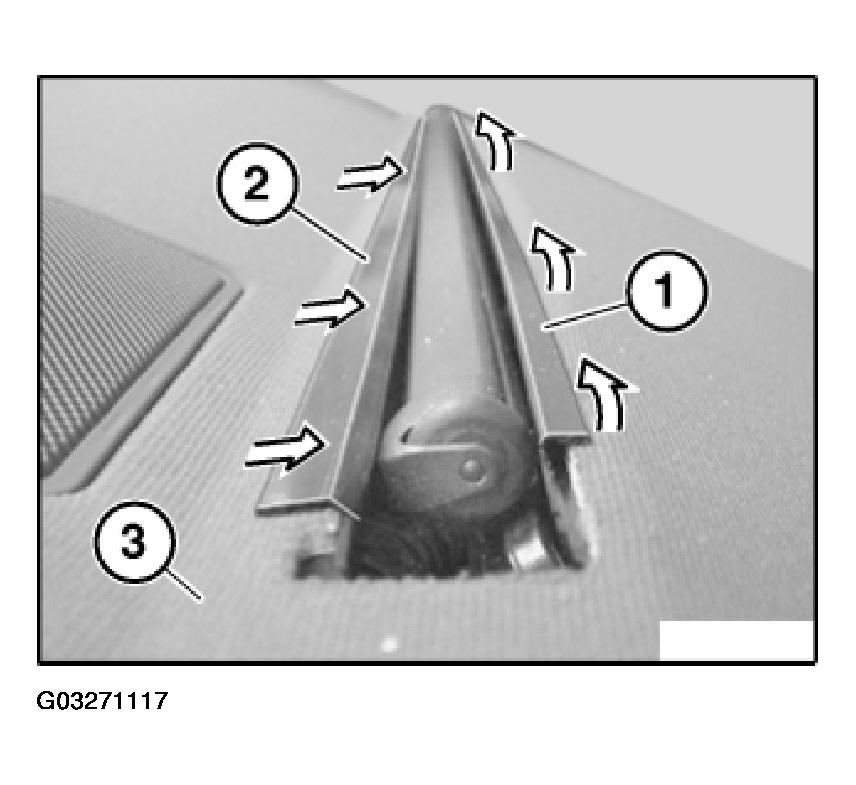

Lift out shelf (3) over rear groove (1) of rear window roller blind. Pull front guide (2) out of shelf (3) and remove roller sun blind towards bottom.

Fig 7: Removing Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing or replacing rear window roller blind" ends here.

Replacement only:

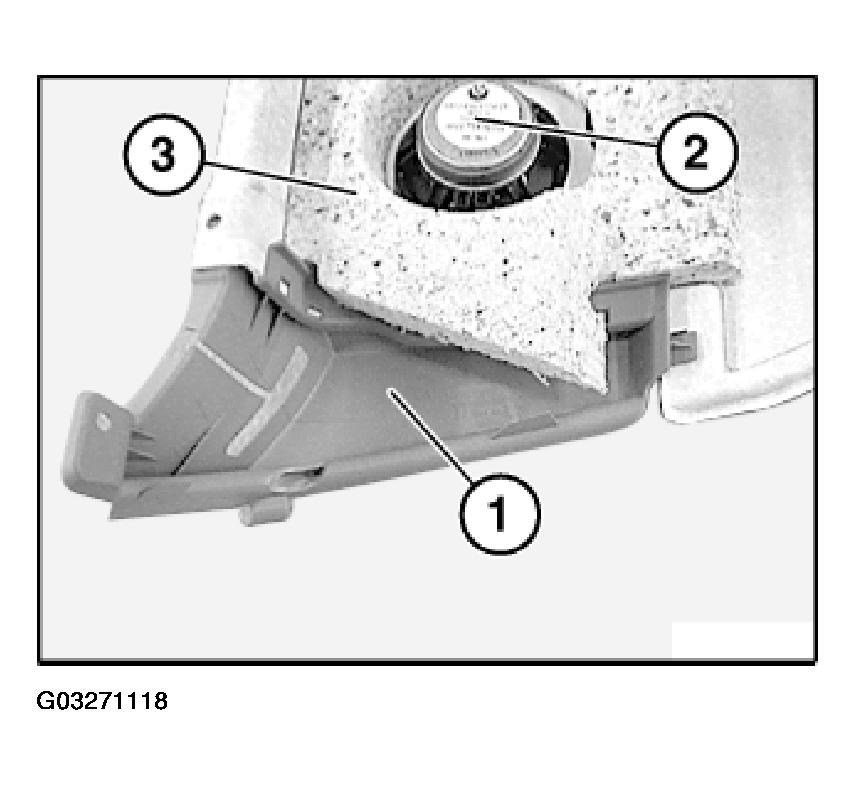

Remove left/right mid-range speaker (2). Refer to 65 13 188 REMOVING AND INSTALLING/REPLACING REAR MID-RANGE SPEAKER (IN REAR SHELF) .

If necessary, remove left/right tweeter. Refer to 65 13 195 REMOVING AND INSTALLING/REPLACING REAR TREBLE SPEAKER (IN REAR SHELF) .

Remove trims (1) for belt outlet on left/right from rear parcel shelf (3).

Fig 8: Removing Trims For Belt Outlet

Courtesy of BMW OF NORTH AMERICA, INC.
