52 24 408 Replacing backrest cover (basic) for left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove backrest for rear seat. Refer to 52 24 010 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (BASIC) .
Remove center armrest. Refer to52 24 030 REMOVING AND INSTALLING COMPLETE ARMREST (BASIC) FOR REAR SEAT BACKREST .
Remove head restraint guides. Refer to 52 24 ... REMOVING AND INSTALLING/REPLACING ALL GUIDE SLEEVES FOR REAR HEAD RESTRAINTS .

Release clips (1).

Feed out cover in area (2).

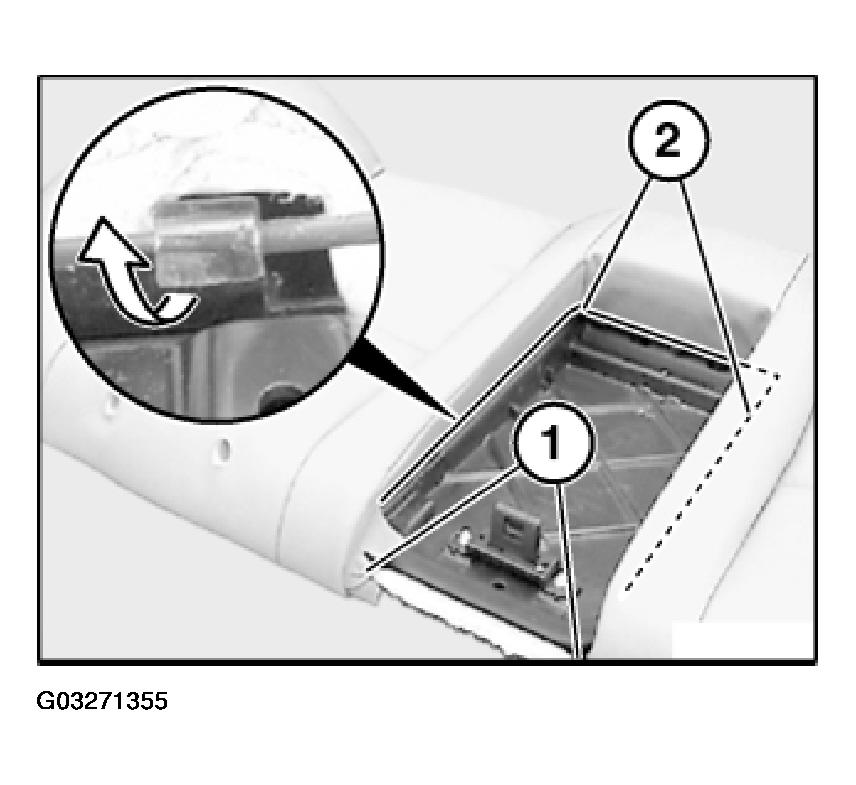

Fig 1: Locating Seat Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Feed out cover in area (2).

Remove frame (3).

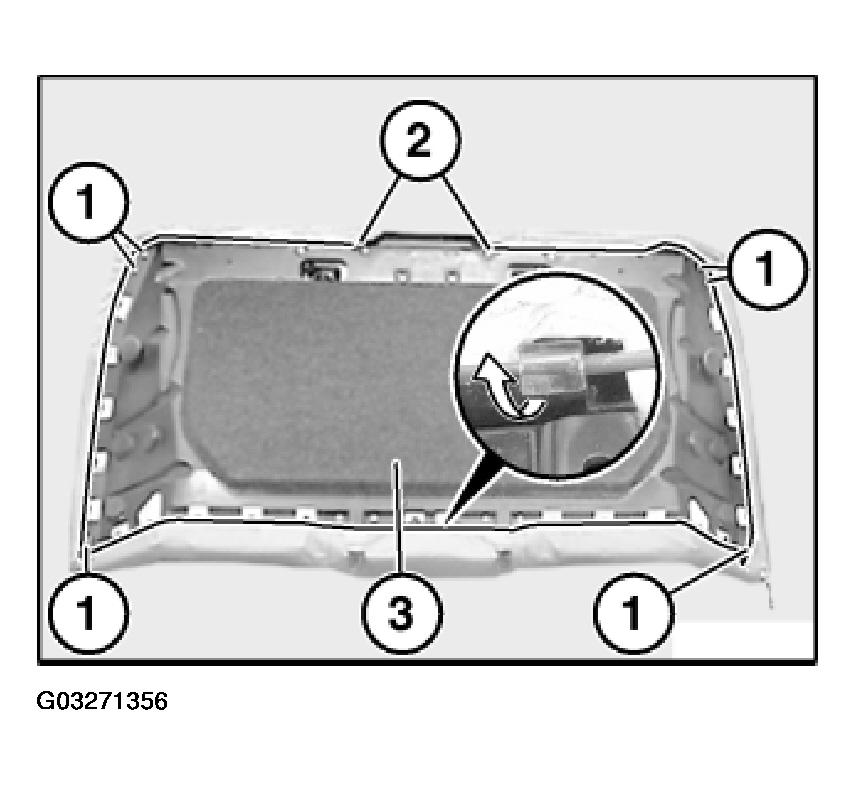

Fig 2: View Of Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

If necessary, mark retainer positions.
Release all retainers in marked area.
Remove cover from padding.
Remove remaining retainers from cover and padding.

Installation:

Insert new retainers with special tool 52 0 050. In so doing, enclose wire in padding and trim wire of cover.

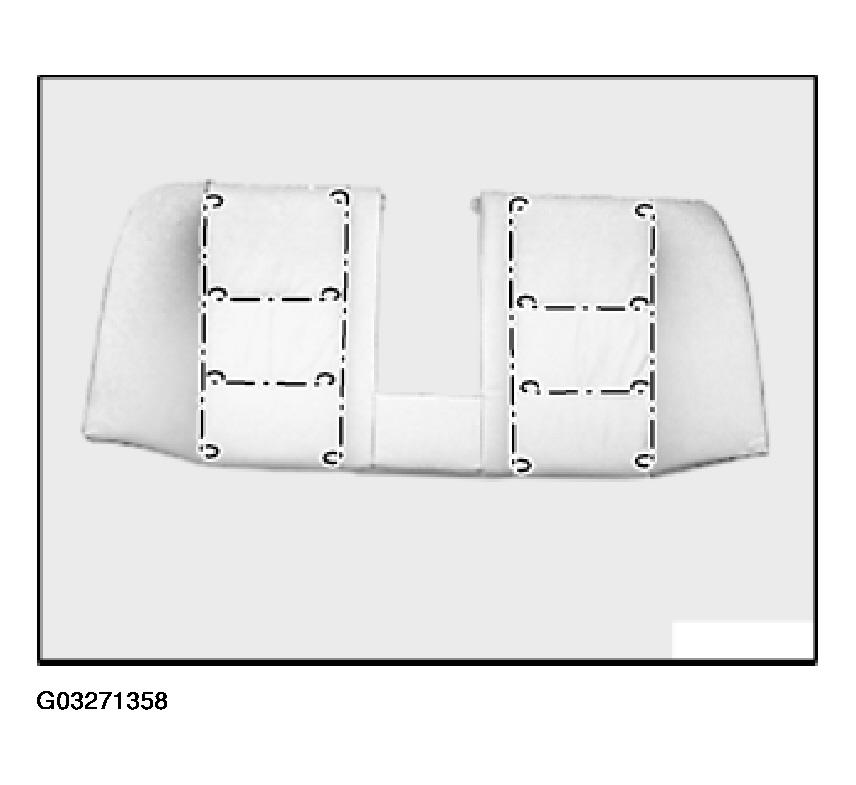

Fig 3: Locating Retainers In Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover.
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets.

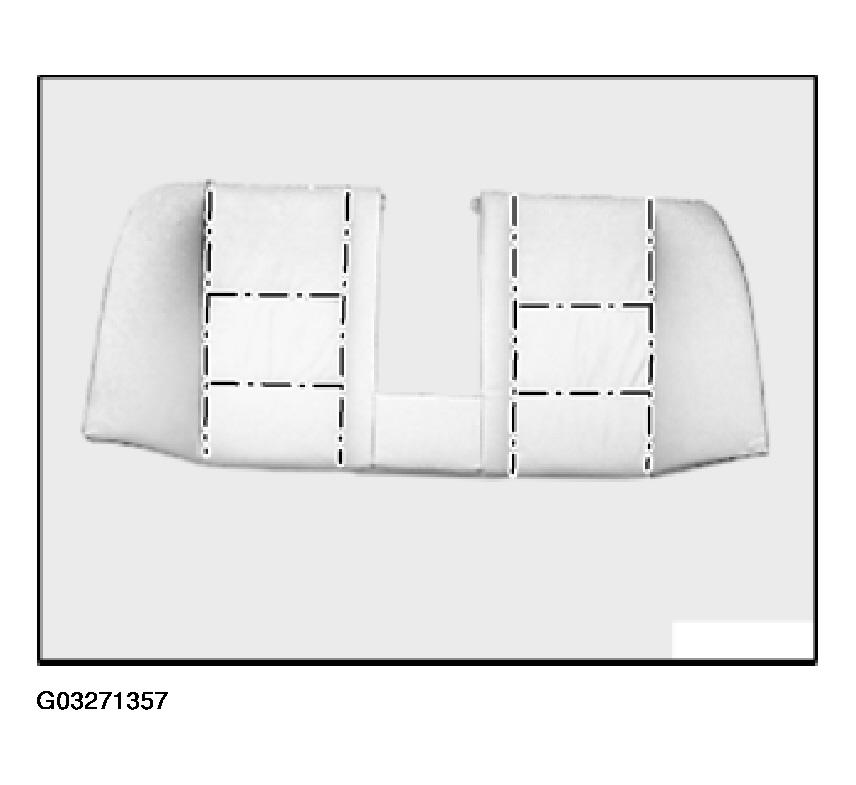

Fig 4: Identifying Trim Wires In Cover
