52 24 030 Removing and installing complete armrest (basic) for rear seat backrest

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

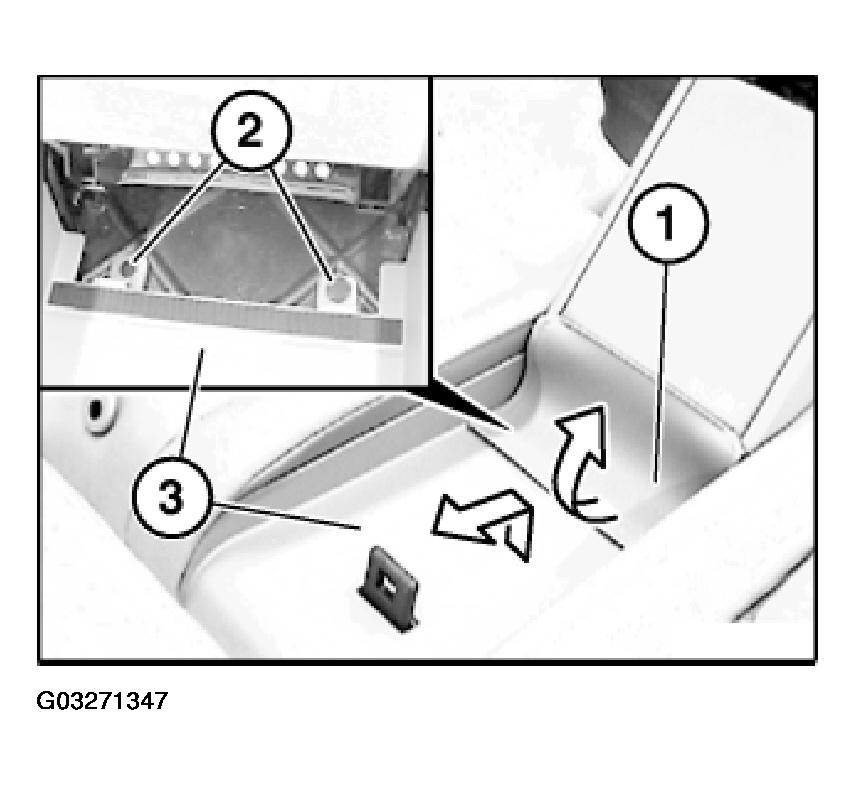

Pull up cover (1) between armrest and rear seat back.

Release expansion rivets (2) on trim.

Remove trim (3) towards top, feeding out over armrest buckle latch.

Fig 1: Identifying Expansion Rivets On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

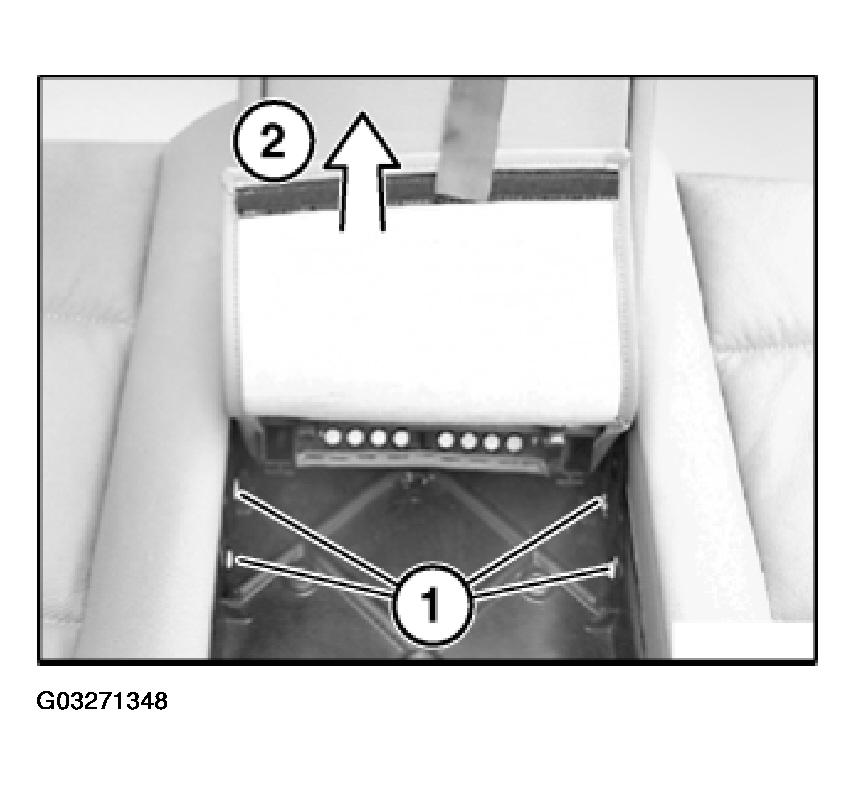

Release screws (1).

Tightening torque, refer to 52 24 5AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .

Remove armrest (2) towards front.

Fig 2: Locating Armrest Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
