51 13 ... Replacing front radiator grill, middle left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Representation created using the E85 as an example. There may be differences in detail in the case of other vehicle models.

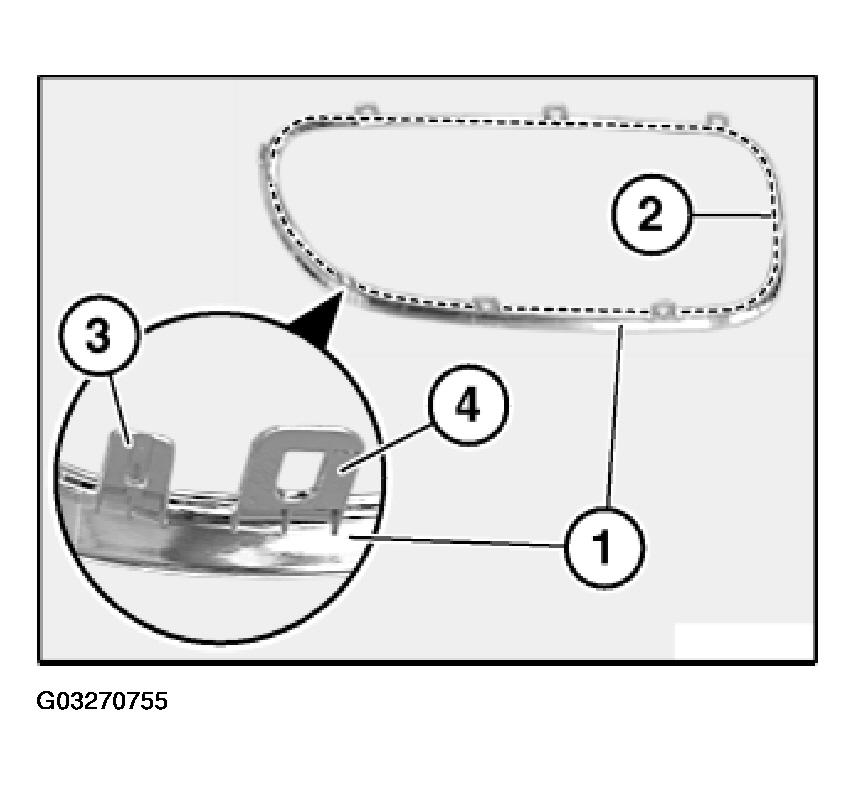

Lever out upper catches (3) and separate inner section (2) from chrome ring (1).

Fig 1: View Of Upper Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

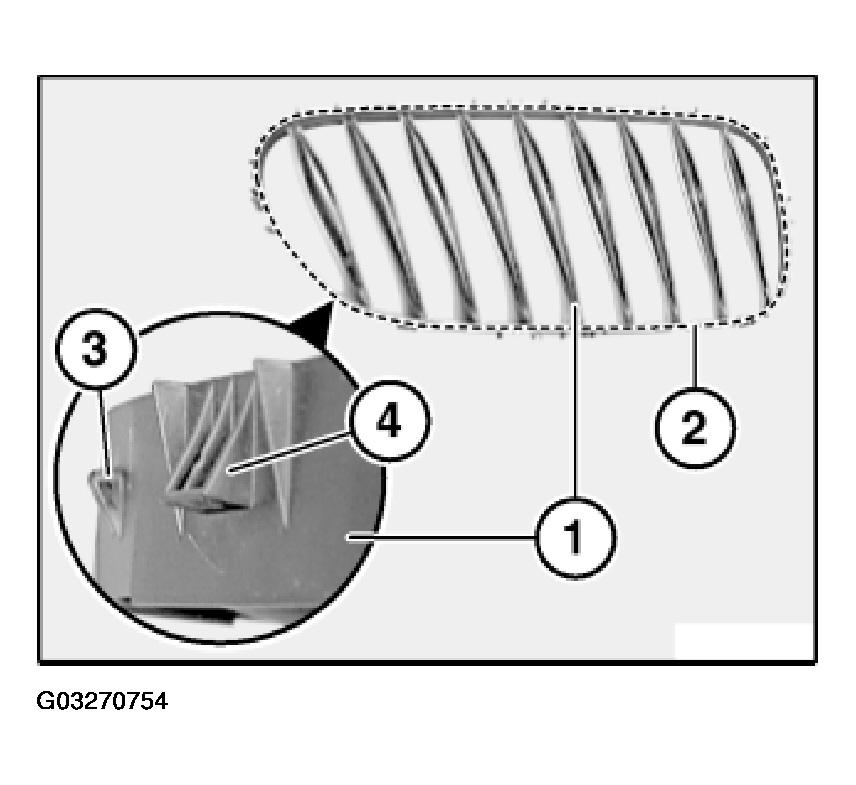

Check inner section (1) for damage.

Retaining lugs (3) and (4) along line (2) must not be damaged.

Fig 2: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

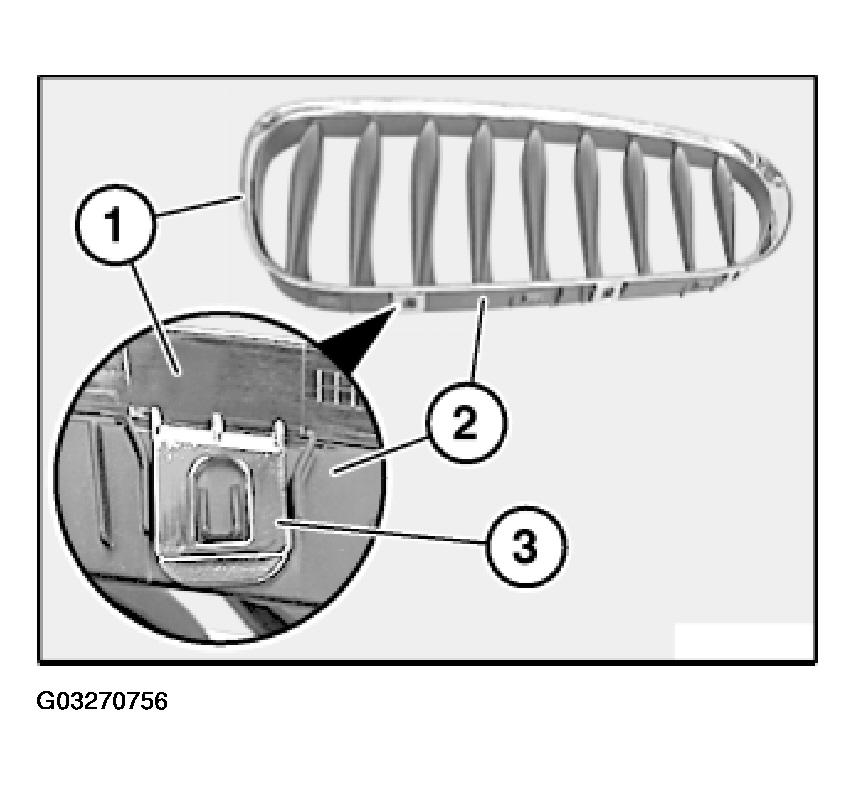

Check chrome ring (1) for damage.

Catches (4) and guides (3) along line (2) must not be damaged.

Fig 3: View Of Chrome Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Assemble chrome ring (1) and inner section (2).

Make sure catch (3) is correctly assembled.

Fig 4: Assembling Chrome Ring And Inner Section

Courtesy of BMW OF NORTH AMERICA, INC.
