51 16 ... Removing and installing/replacing center console cover

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear insert. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING REAR INSERT (IN STORAGE COMPARTMENT) .
Remove rear compartment fresh air grille. Refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH AIR GRILL .
Remove rear storage tray finisher. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING FINISHER FOR STORAGE TRAY AT REAR .

Release screws (1).

2) Center console.

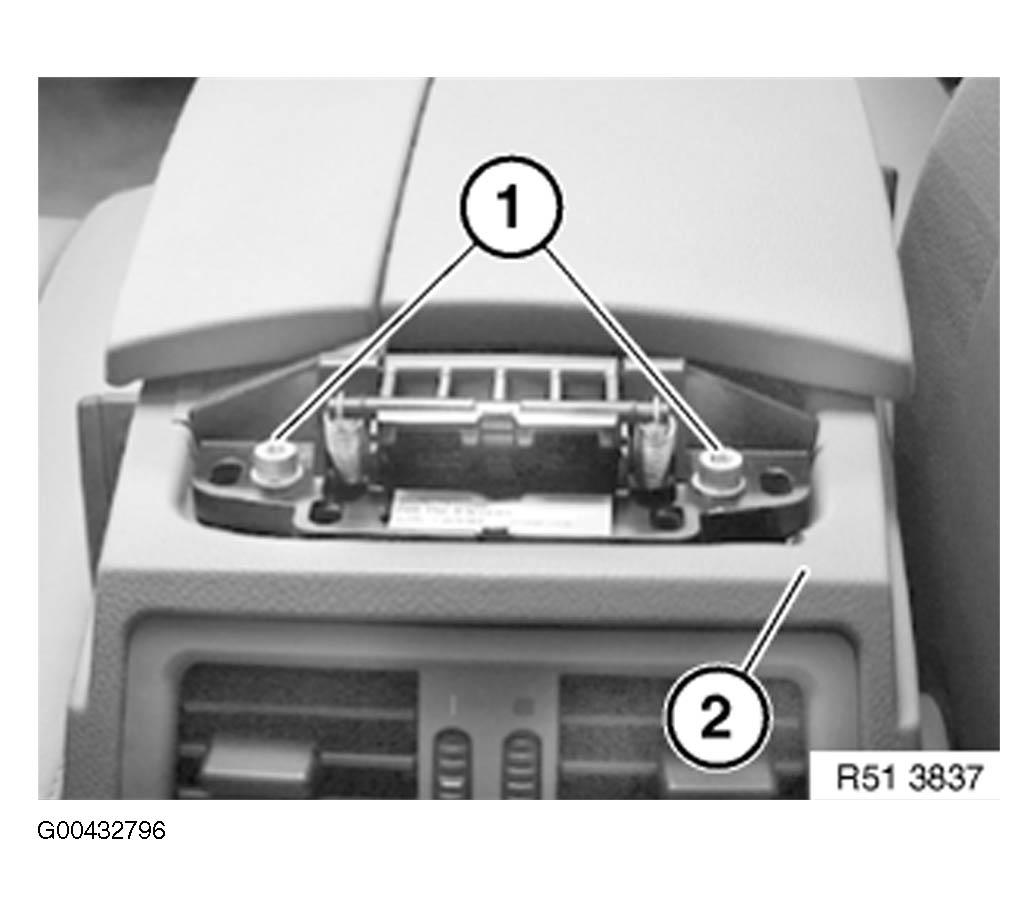

Fig 1: Locating Center Console Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with center armrest (2):

Slide center armrest (2) forwards.

Lever out cap (3) and release screw underneath.

Open cover (1).

Feed out cover (1) with retaining plate (4) towards rear/top.

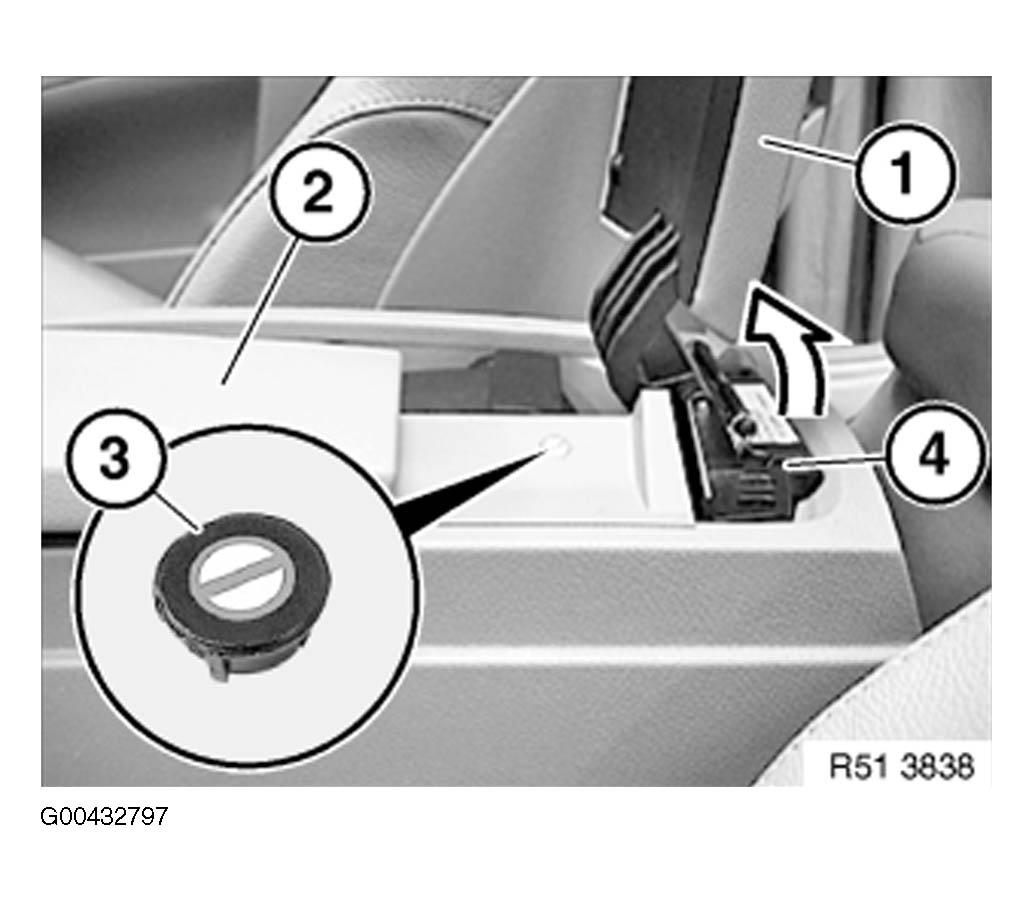

Fig 2: View Of Center Console And Cap

Courtesy of BMW OF NORTH AMERICA, INC.
