51 16 ... Removing and installing/replacing finisher for storage tray at rear
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear compartment fresh air grill. Refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH AIR GRILL .

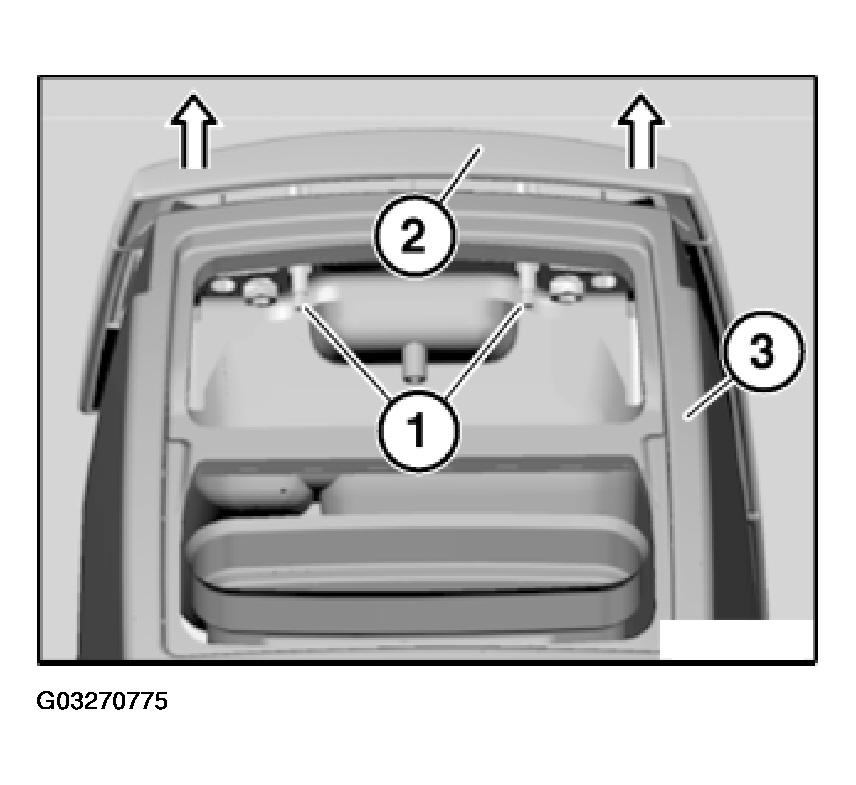

Release front nuts (1).
NOTE:
Do not release rear nuts!
Remove finisher (2) for storage tray at rear towards top.
3) Center console.
