51 16 ... Removing and installing/replacing rear insert (in storage compartment)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 00 9 341

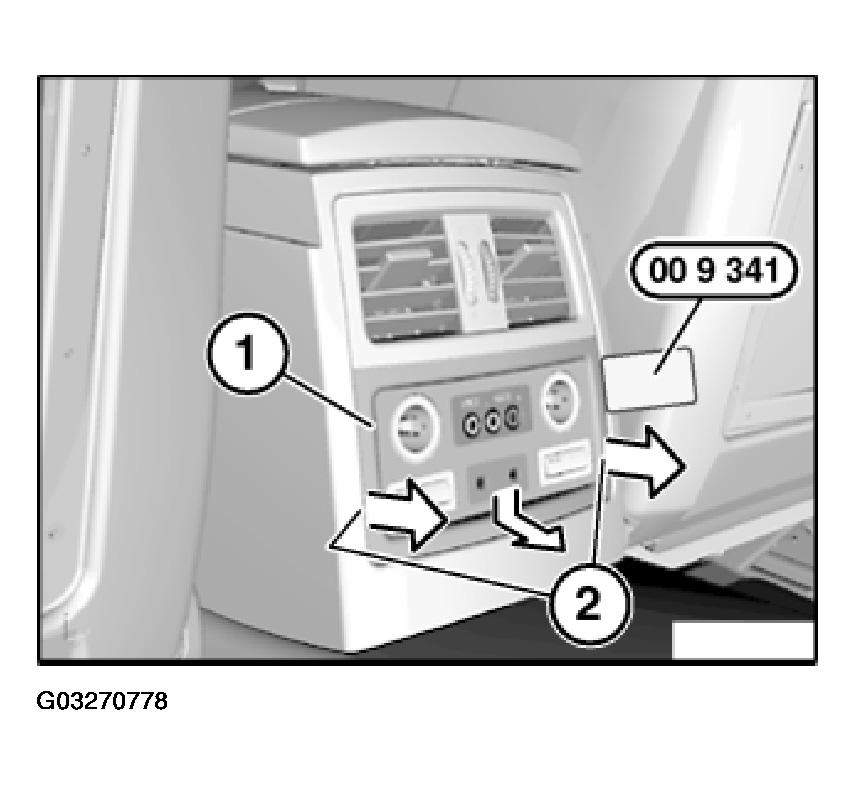

Unclip rear insert (1) with special tool 00 9 341 at retaining points (2) and pull back in direction of arrow.
Disconnect associated plug connections and remove rear insert (1).
