51 16 ... Removing and installing/replacing center armrest adjustment unit

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center console cover. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING CENTER CONSOLE COVER .
Remove center armrest. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING CENTER ARMREST .
Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

Release screws (1).

Release screws (2) and remove holder (3).

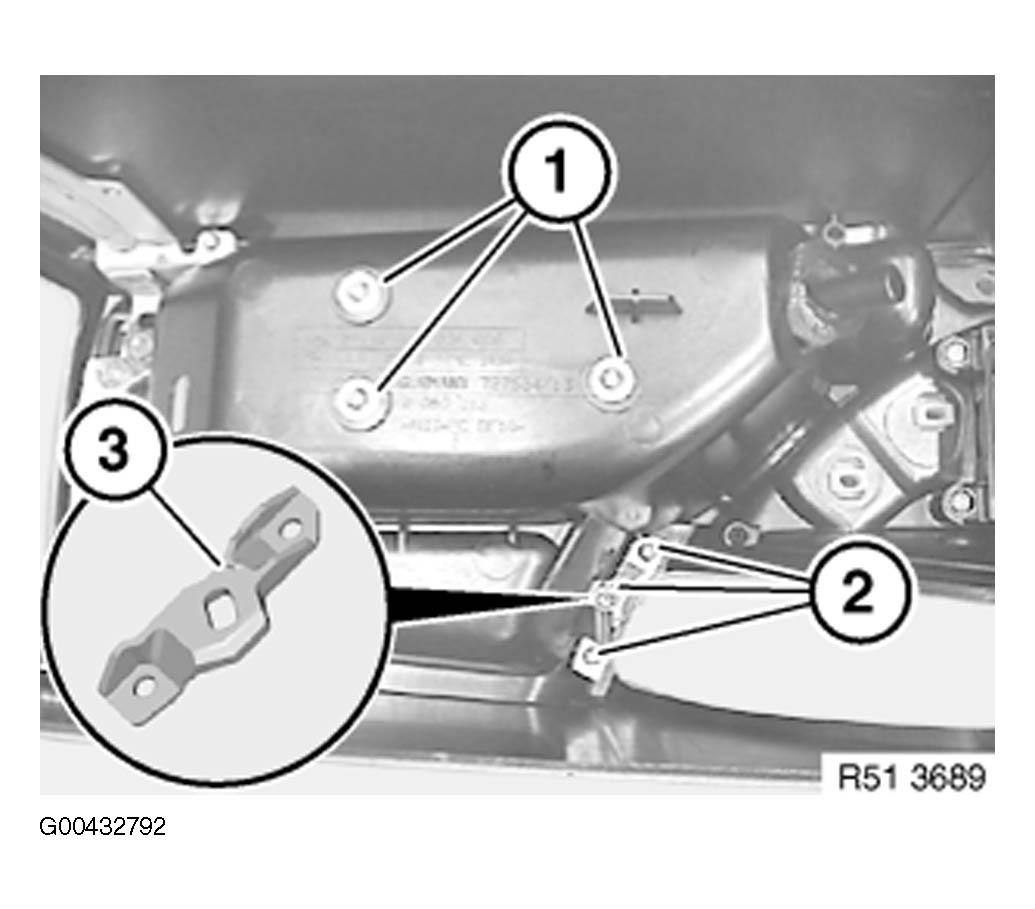

Fig 1: Identifying Adjustment Unit Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out adjustment unit (1) with storage tray (2) towards rear/top.

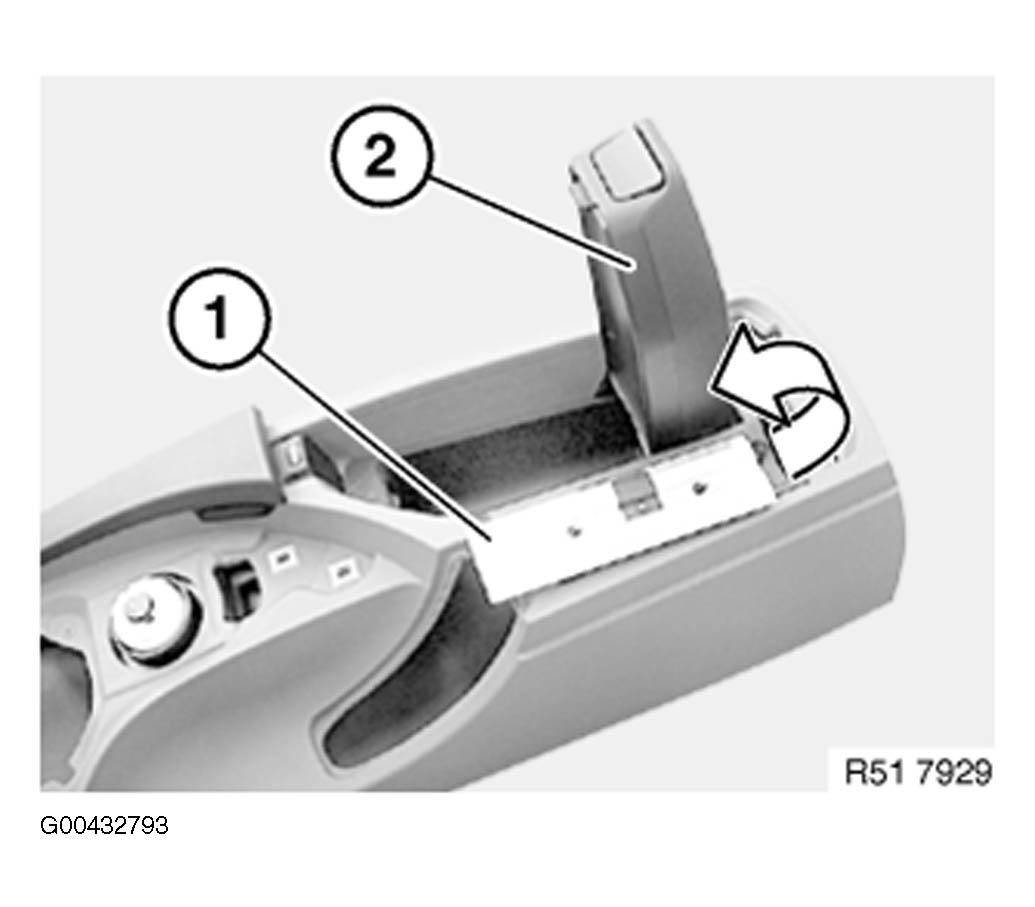

Fig 2: Removing Armrest Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on storage tray (2) and remove adjustment unit (3).

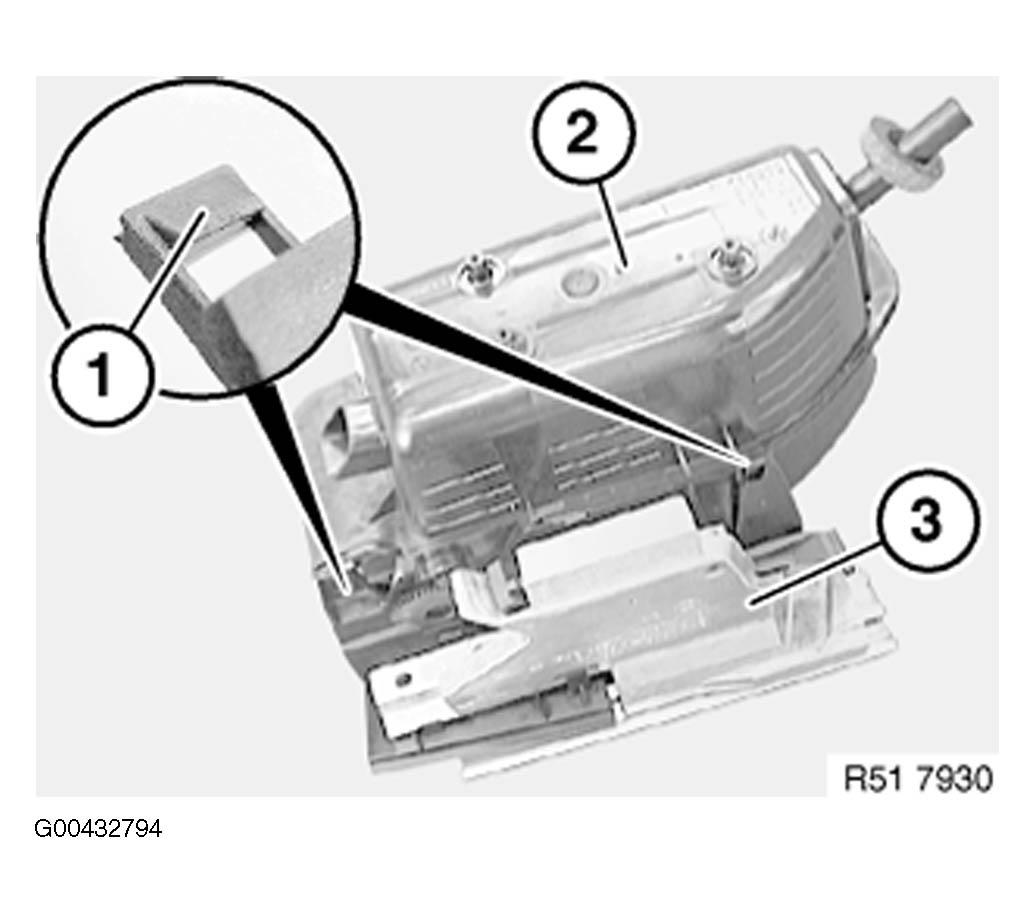

Fig 3: Locating Catches On Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on trim (2) and remove trim (2) from adjustment unit (3).

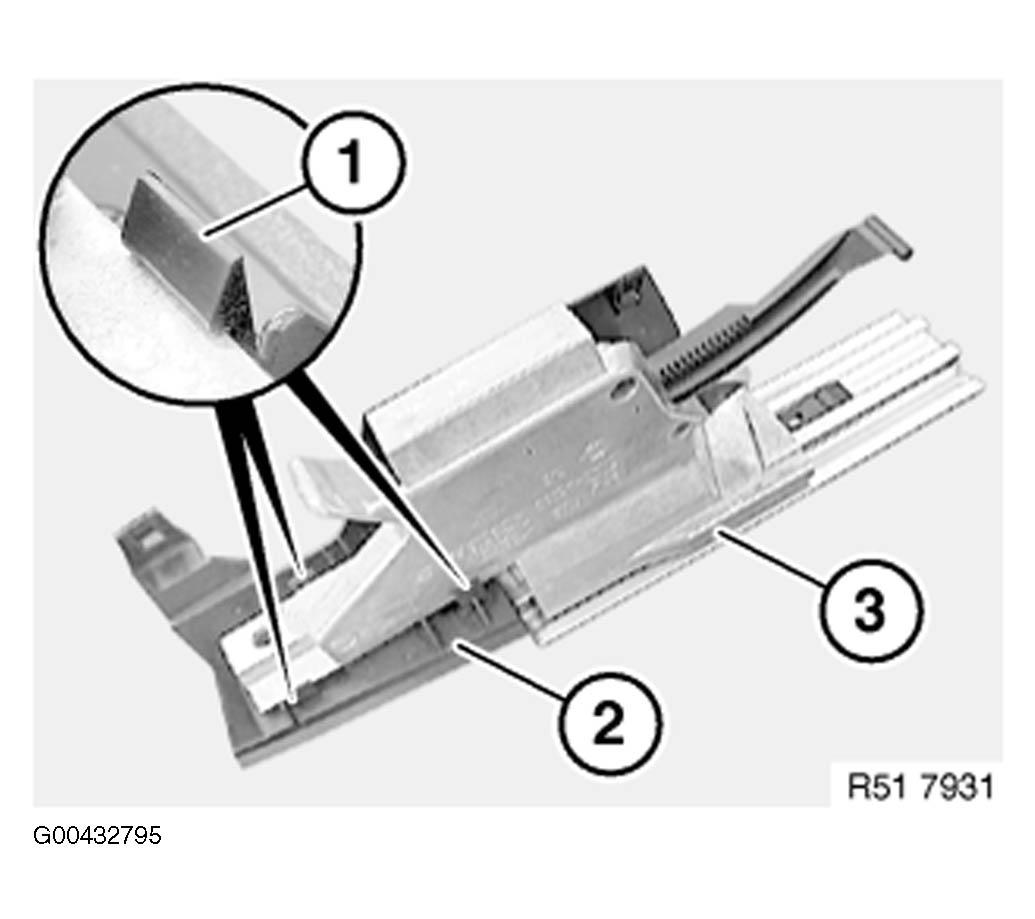

Fig 4: View Of Adjustment Unit Trim

Courtesy of BMW OF NORTH AMERICA, INC.
