51 16 200 Removing and installing storage compartment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for storage tray. Refer to 51 16 211 REMOVING AND INSTALLING/REPLACING FINISHER FOR STORAGE TRAY .
Remove rear compartment fresh air grille. Refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH AIR GRILL .

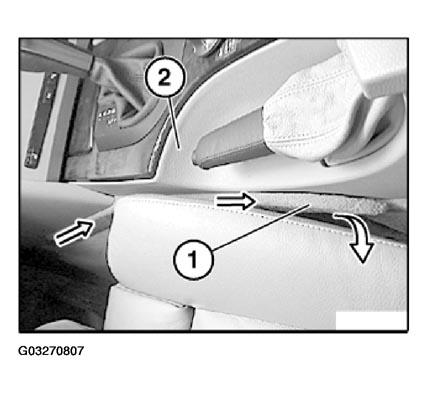

Lever out trims (1) on left/right at rear end and pull out in direction of arrow.

2) Center console.

Fig 1: Removing Center Console Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

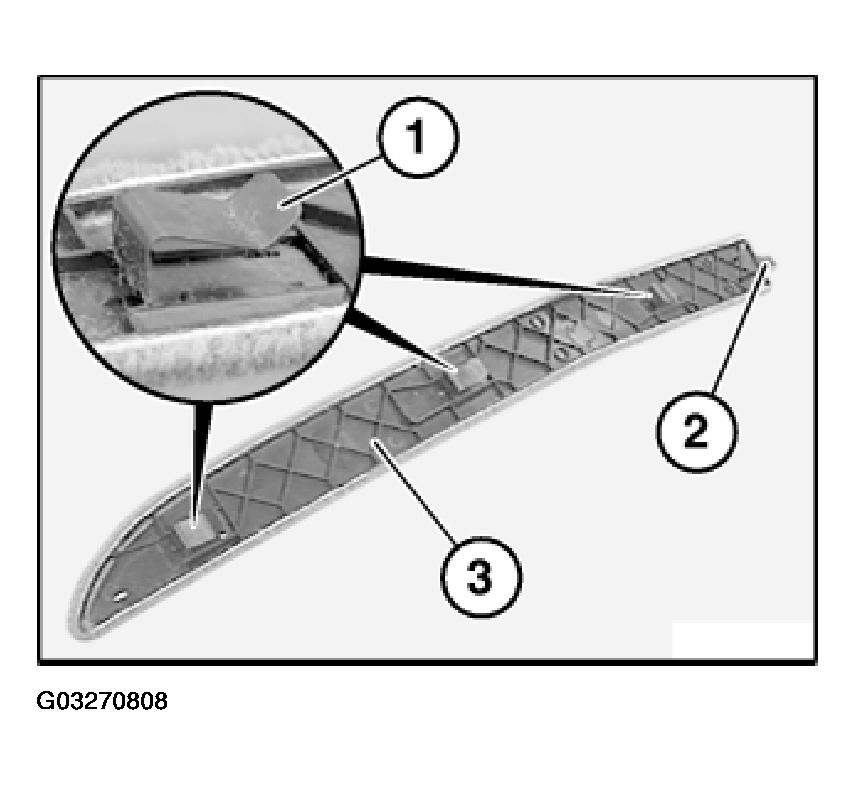

Retainers (1) and guide (2) on trim (3) must not be damaged or missing.

Fig 2: View Of Retainers And Guide On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

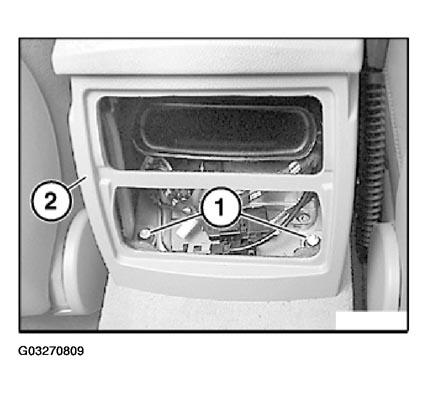

Release screws (1) on storage compartment (2).

If necessary, unlock plug connections.

Fig 3: Locating Screws On Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Release handbrake lever gaiter on storage compartment (2).

Release screw (1) on left/right.

Lift storage compartment (2) at rear.

Feed through handbrake lever gaiter towards bottom and unlock plug connections below storage compartment (2).

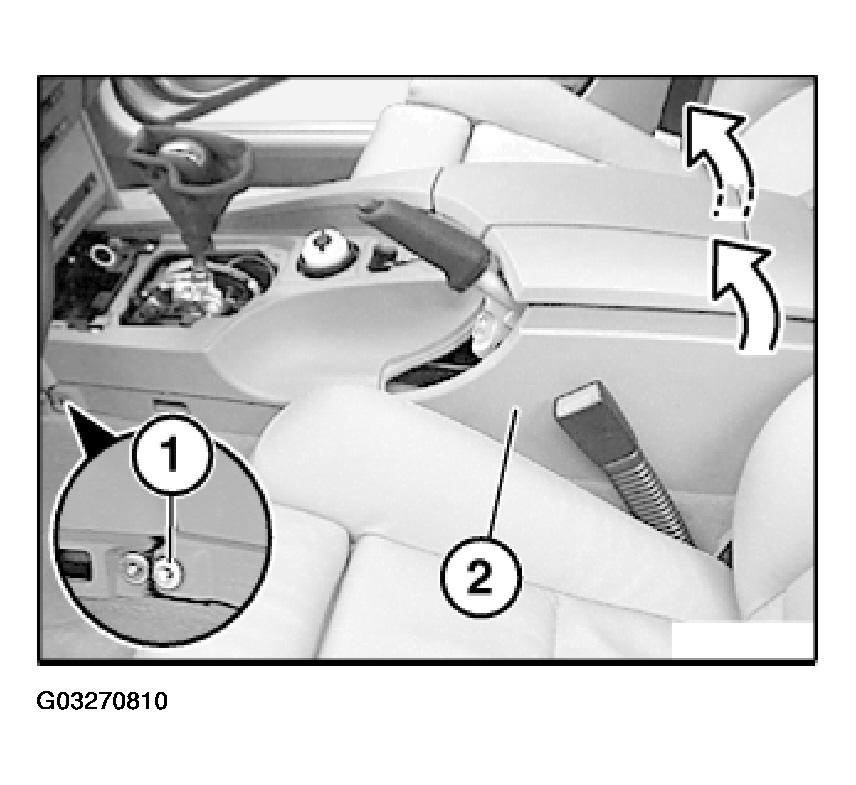

Feed out storage compartment (2) in direction of arrow over handbrake lever and remove towards rear.

Fig 4: Identifying Storage Compartment Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

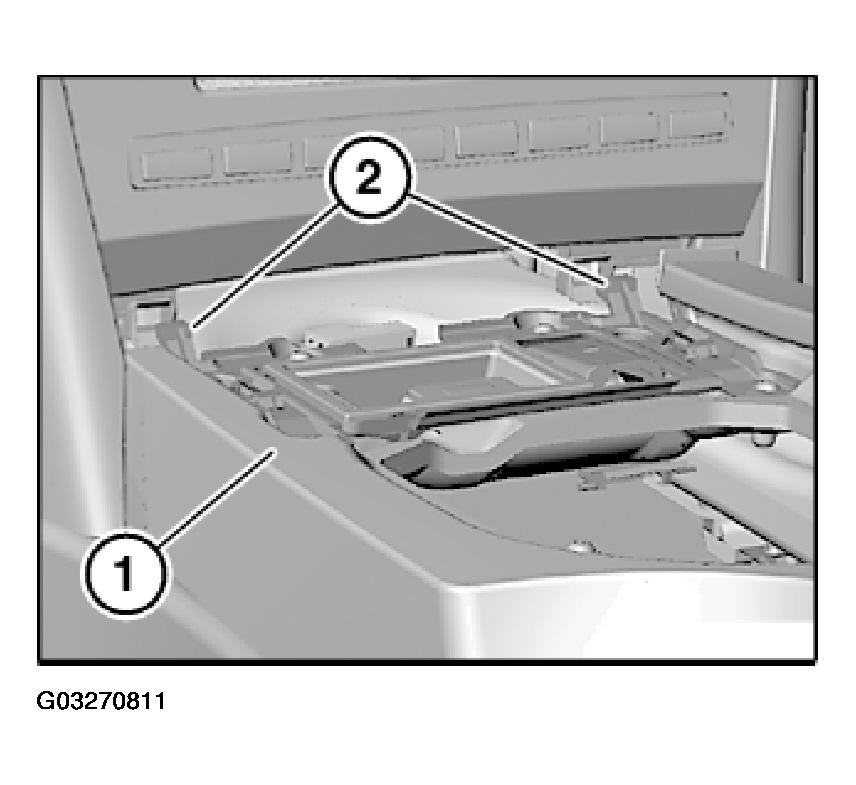

Do not damage guides (2) when feeding storage compartment (1) in.

Fig 5: View Of Storage Compartment Guides

Courtesy of BMW OF NORTH AMERICA, INC.
