51 45 031 Replacing instrument panel trim

Necessary Preliminary Tasks:

• Remove instrument panel trim. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .
• Remove decorative strip on instrument panel on left. Refer to 51 45 370 REMOVING AND INSTALLING (REPLACING) LEFT DECORATIVE STRIP ON INSTRUMENT PANEL .
• Remove speaker trim. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .
• If necessary, remove speaker. Refer to 65 13 060 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, IN INSTRUMENT PANEL) .
• If necessary, remove front inner and front outer cup holder carriers. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING FRONT INNER CUP HOLDER CARRIER  and 51 16 ... REMOVING AND INSTALLING/REPLACING FRONT OUTER CUP HOLDER CARRIER .

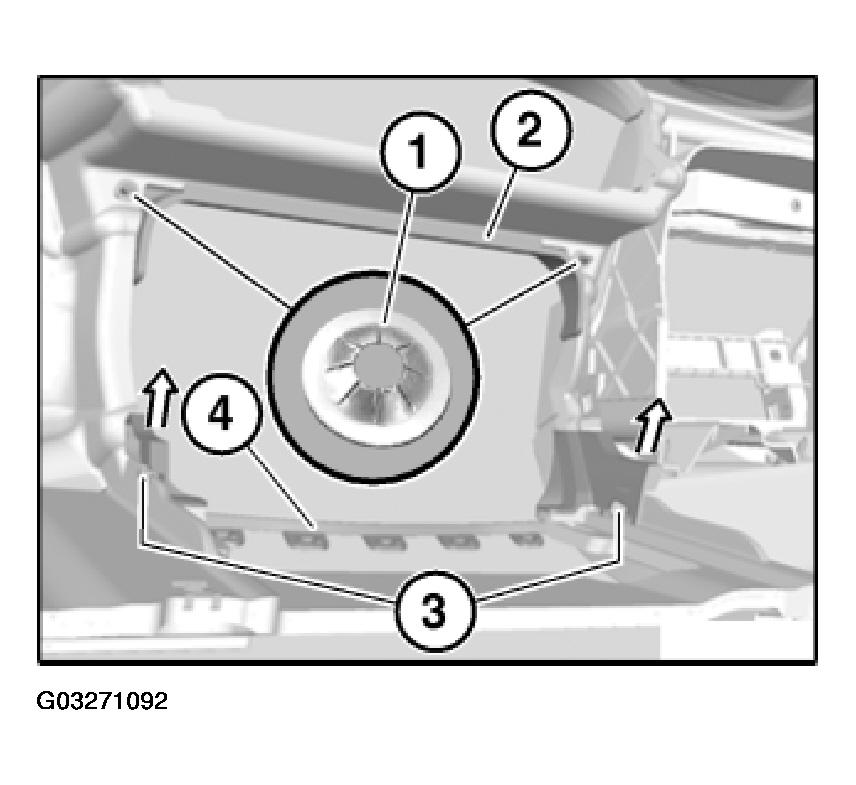

Expand locking rings (1) and remove.

Remove top steering column cover (2).

Unclip bottom steering column cover (4) from retainers (3) and remove.

Fig 1: Locating Locking Rings

Courtesy of BMW OF NORTH AMERICA, INC.

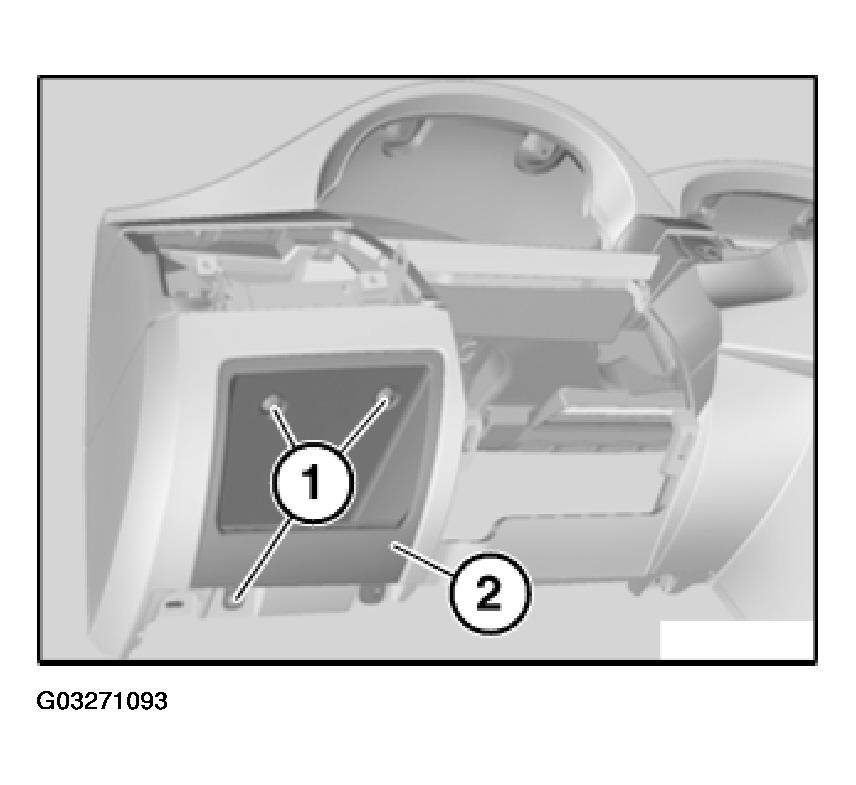

Release screws (1) and remove driver's side storage compartment (2).

Fig 2: Identifying Driver'S Side Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

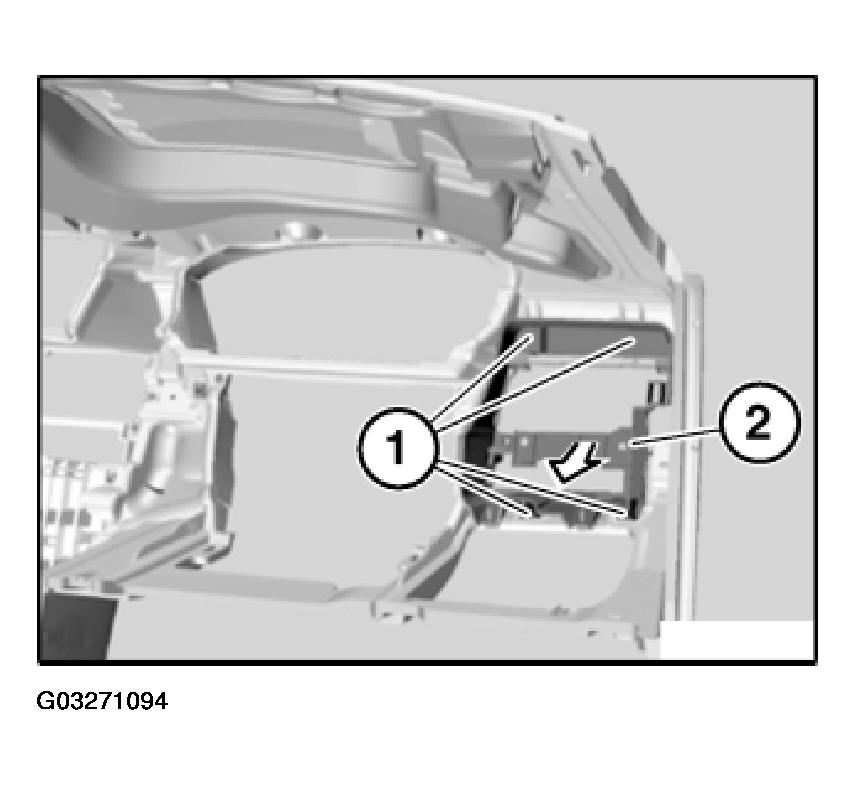

Release screws (1) and remove function carrier for light switch center (2).

Fig 3: View Of Function Carrier For Light Switch Center

Courtesy of BMW OF NORTH AMERICA, INC.

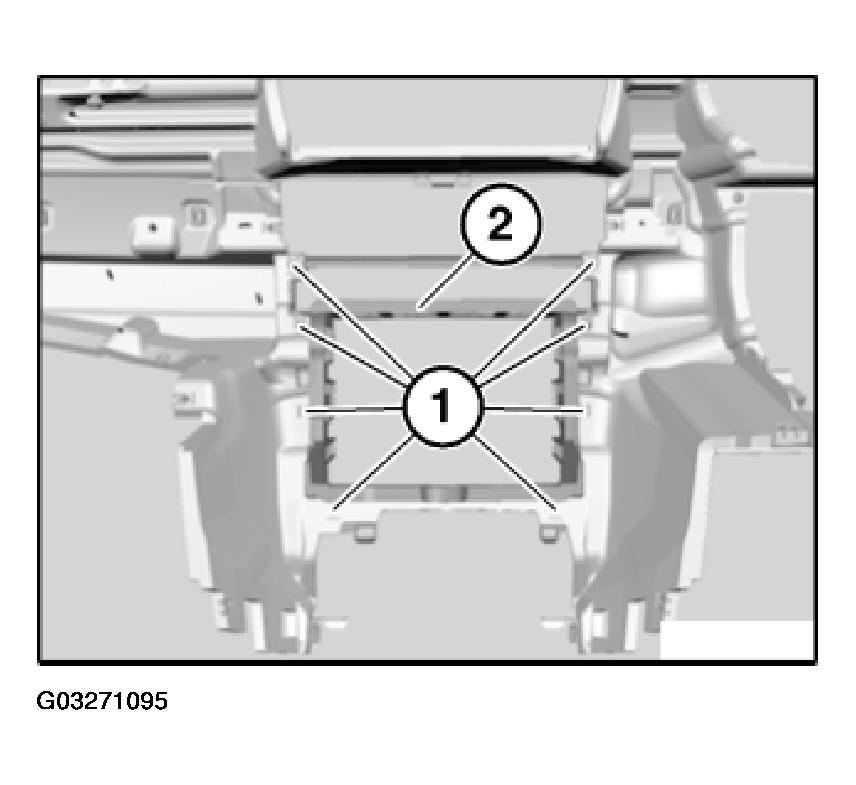

Release screws (1) and remove function carrier for instrument panel (2).

Fig 4: Locating Function Carrier For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

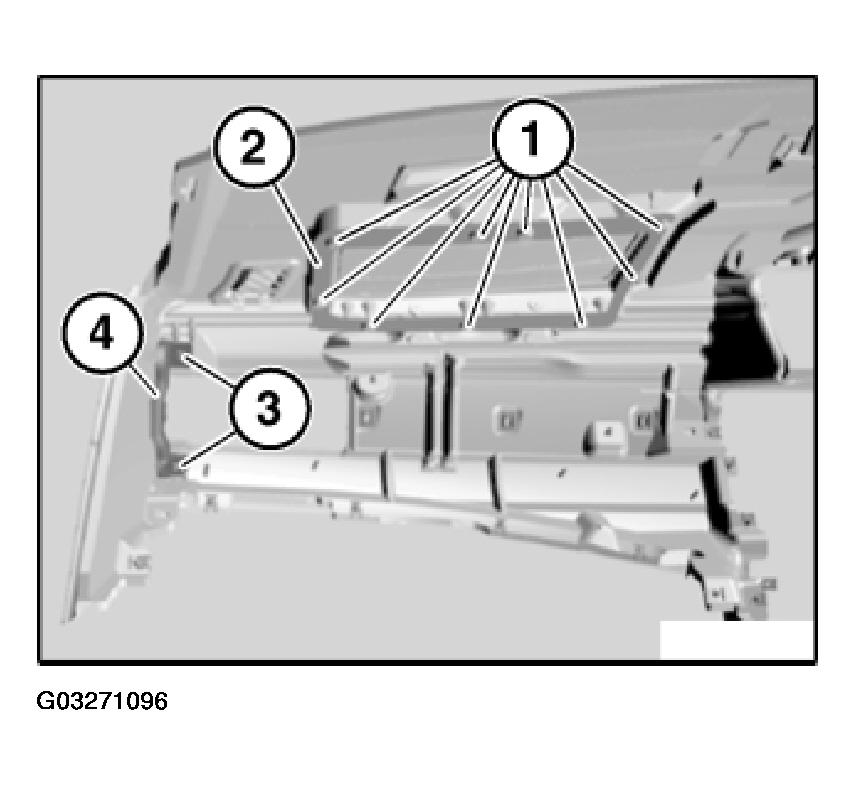

Release screws (1) and remove frame for passenger airbag (2).

Release screws (3) and remove function carrier for right decorative strip (4).

Fig 5: Identifying Frame For Passenger Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

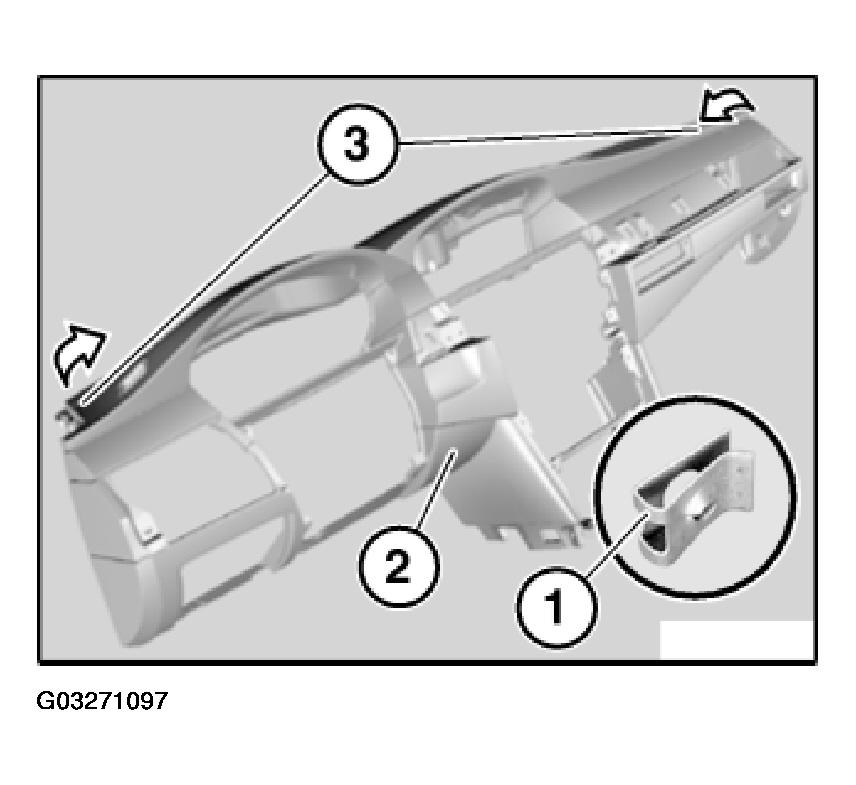

Removal all metal nuts (1) from instrument panel trim (2).

Unclip trims for defrost outlet (3) on outside in each case and remove.

Fig 6: View Of Metal Nuts For Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
