51 45 370 Removing and installing (replacing) left decorative strip on instrument panel

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

Necessary Preliminary Tasks:

Remove light operator unit. Refer to 61 31 037 REMOVING AND INSTALLING/REPLACING LIGHTING CONTROL UNIT .

Release screws (1).

Unclip left decorative strip on instrument panel complete with left fresh-air grill (2) at top and remove in direction of arrow.

Installation:

Make sure clips (3) are correctly seated on mountings of left fresh-air grill (2).

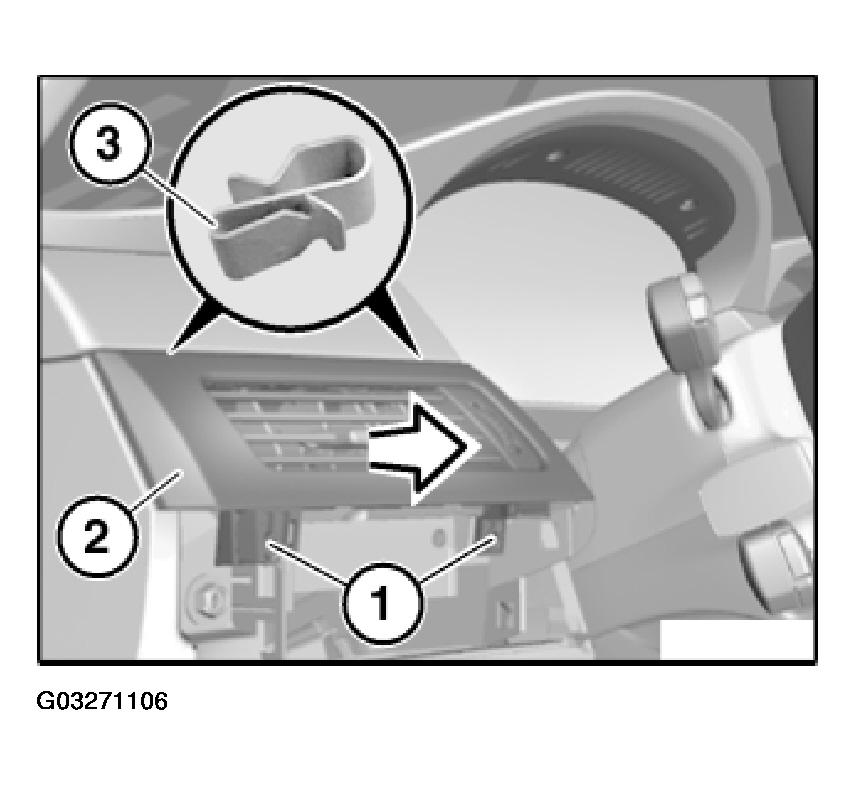

Fig 1: Locating Clips For Left Fresh-Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release lock (2) with special tool 64 1 020. Unclip left fresh-air grill (5) in direction of arrow over retaining lugs (1) and remove from left decorative strip on instrument panel (3).

Installation:

Make sure left fresh-air grill (5) is correctly seated in mountings (4) of left decorative strip on instrument panel (3). Make sure retaining lugs (1) and lock (2) of left decorative strip on instrument panel (3) are correctly seated.

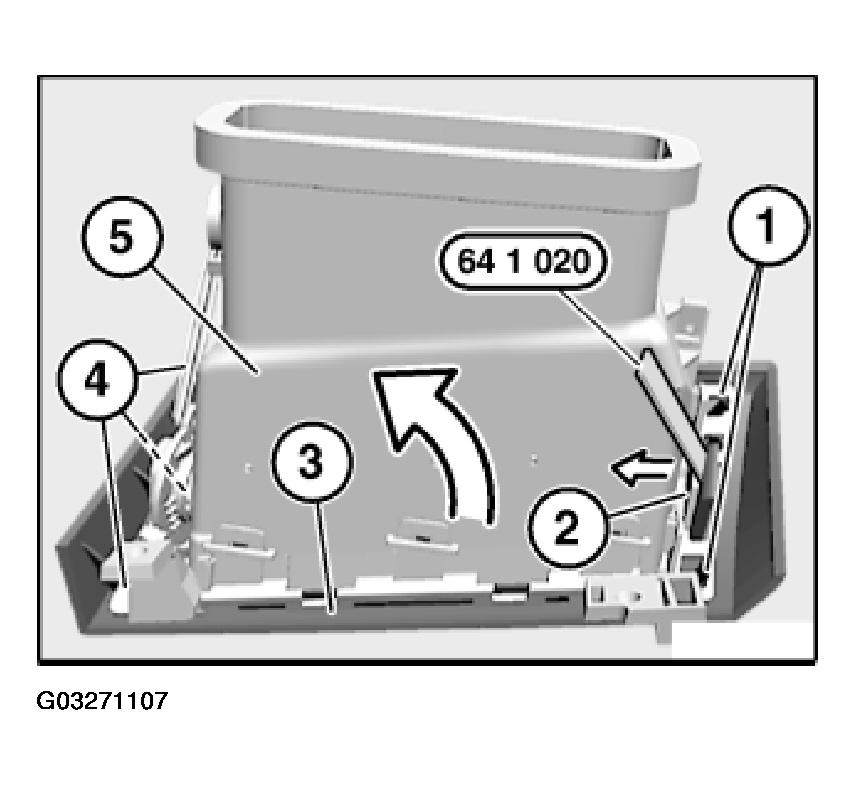

Fig 2: View Of Release Hook In Lock

Courtesy of BMW OF NORTH AMERICA, INC.
