65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove speaker trim. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

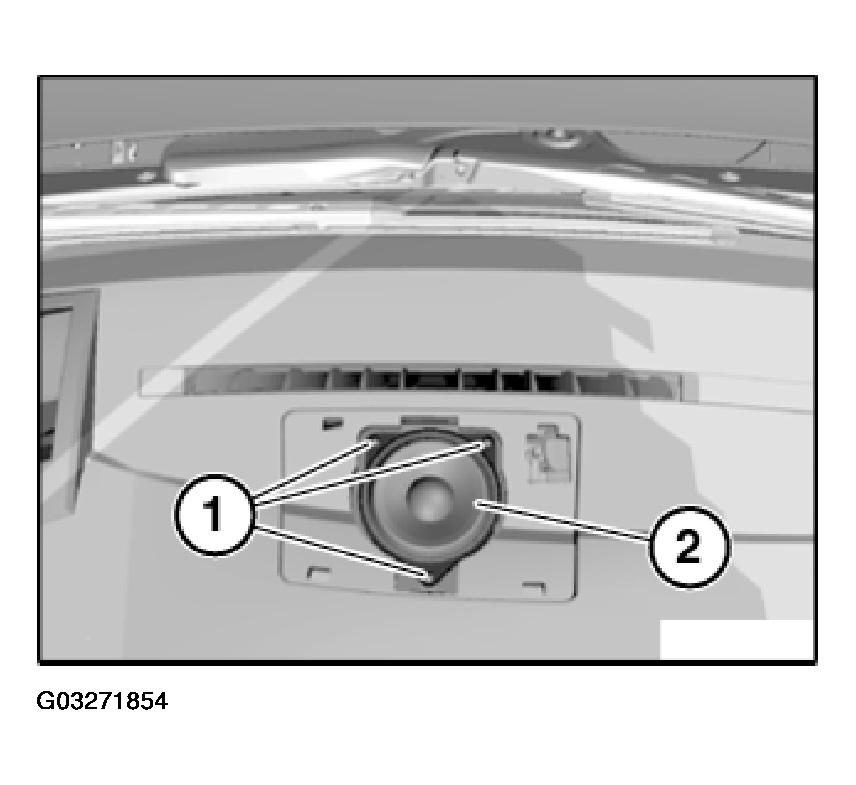

Release screws (1).
Remove speaker (2).
Disconnect plug connection underneath and remove speaker (2) towards top.
