17 11 046 Removing and installing/replacing module carrier (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove fan cowl
Remove radiator
Remove A/C condenser . See 64 53 551 REMOVING AND INSTALLING OR REPLACING CONDENSER FOR A/C SYSTEM .
Remove coolant cooler for intercooler
Remove cooling loop for power steering
Remove auxiliary coolant pump for intercooler

Release coolant hoses (1) from module carrier (2).

Unlock rubber mount (3).

Lift out module carrier (2).

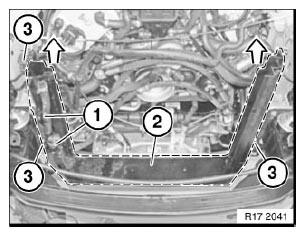

Fig 1: Identifying Module Carrier, Rubber Mount And Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check system for leaks.
