17 11 370 Removing and installing/replacing cooling coil for power steering (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: When working on the oil, coolant or fuel circuit, you must protect the alternator against contamination.

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .
Remove fan cowl
Release radiator air duct . See 51 71 099 REMOVING AND INSTALLING/REPLACING RADIATOR AIR GUIDE . Do not remove air duct. Pull air duct forwards only.
After completing this operation, check fluid level in power steering fluid reservoir. See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) .

Release screws.

Remove cover (1)

Fig 1: Identifying Radiator Cover

G04794047

Courtesy of BMW OF NORTH AMERICA, INC.

Press lines (1) in direction of cooling coil (2). Pull locking ring towards rear and keep pressed.

Detach lines (1) from cooling coil (2).

IMPORTANT: Catch and dispose of emerging fluid.

Fig 2: Identifying Cooling Coil

G04794061

Courtesy of BMW OF NORTH AMERICA, INC.

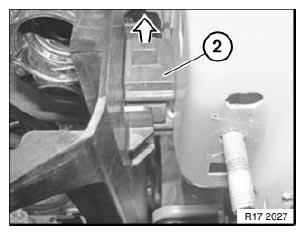

Lift out left stop buffer (1) at radiator core.

Fig 3: Lifting Left Stop Buffer

G06179193

Courtesy of BMW OF NORTH AMERICA, INC.

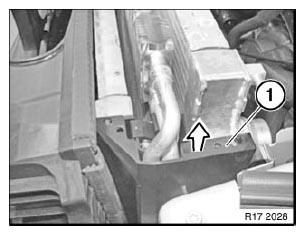

Pull out trim (1).

Fig 4: Pulling Trim

G06179194

Courtesy of BMW OF NORTH AMERICA, INC.

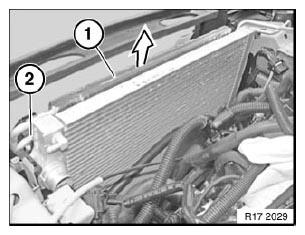

Unclip cooling coil (1) from retainer (2).

Feed out cooling coil (1) towards top and remove.

Fig 5: Identifying Cooling Coil And Retainer

G06179195

Courtesy of BMW OF NORTH AMERICA, INC.
