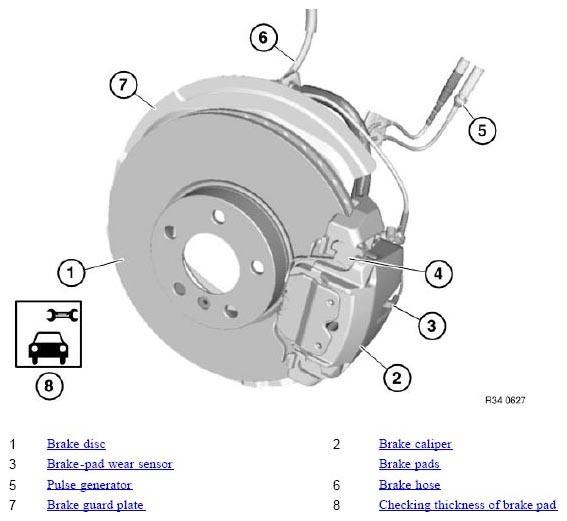

34 11 ... Overview of Front Brakes
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Brake disc. See 34 11 220 Removing and Installing/Replacing Both Front Brake Discs , 34 11 667 Precision-turning Both Front Brake Discs On Both Sides
- Brake caliper. See 34 11 519 Removing and Installing/Replacing Left Or Right Front Brake Caliper
- Brake-pad wear sensor. See 34 35 001 Replacing a Brake Pad Sensor (Front)
- Brake pads. See 34 11 000 Removing and Installing/Replacing Brake Linings On Both Front Disc Brakes
- Pulse generator. See 34 52 525 Replacing One Front Pulse Generator
- Brake hose. See 34 32 980 Replacing Rear Left Or Right Brake Hoses
- Brake guard plate. See 34 11 250 Removing and Installing / Replacing A Brake Carrier / Brake Guard Plate At Front
- Checking thickness of brake pad. See 34 00 010 Checking Thickness Of Brake Pad
