11 28 ... Overview of Belt Drive (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li and 2007 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

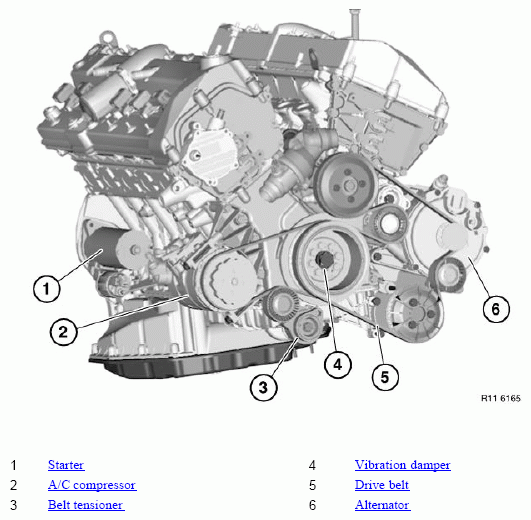

Fig 1: Identifying A/C Compressor Drive Belt Components Location
G04773679Courtesy of BMW OF NORTH AMERICA, INC.
  1. Starter. See 12 41 020 REMOVING AND INSTALLING/REPLACING STARTER MOTOR (N73)
  2. A/C compressor
  3. Belt tensioner. See 11 28 010 Replacing Alternator Drive Belt (N73)
  4. Vibration damper. See 11 23 010 Removing and Installing/Replacing Vibration Damper (N73)
  5. Drive belt. See 11 28 010 Replacing Alternator Drive Belt (N73)
  6. Alternator. See 12 31 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR (LIQUID-COOLED N73)
