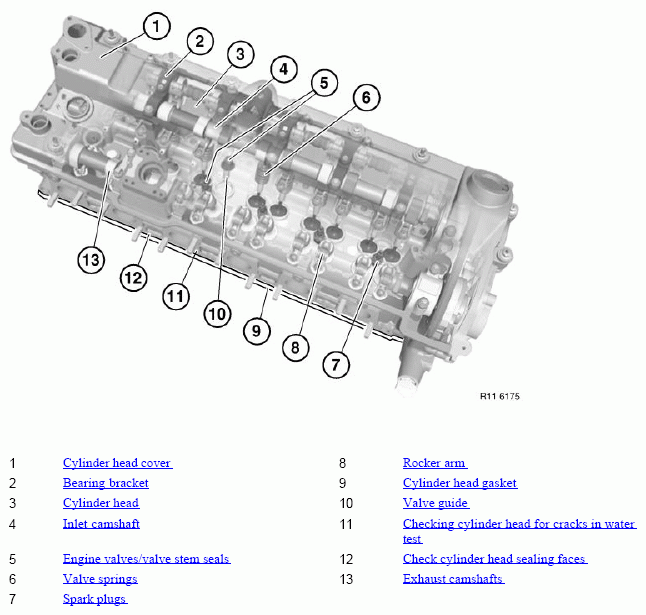

11 12 ... Overview of Cylinder Head (N73)
WARNING: This page is about a different car, the 2008 BMW 760Li and 2007 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder head cover. See 11 12 005 Removing and Installing/Sealing Left Cylinder Head Cover (N73) ,11 12 006 Removing and Installing/Sealing Right Cylinder Head Cover (N73)
- Bearing bracket. See 11 37 008 Removing and Installing/Replacing Right Eccentric Shaft (N73) ,11 37 006 Removing and Installing/Replacing Left Eccentric Shaft (N73)
- Cylinder head. See 11 12 105 Removing and Installing Left Cylinder Head (N73) ,11 12 106 Removing and Installing Right Cylinder Head (N73)
- Inlet camshaft. See 11 31 032 Removing and Installing/Replacing Left Inlet Camshaft (N73) ,11 31 034 Removing and Installing/Replacing Right Inlet Camshaft (N73)
- Engine valves/valve stem seals. See 11 34 560 Replacing All Valve Stem Seals (N73)
- Valve springs. See 11 34 715 Replacing All Valve Springs (N73)
- Spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS (N73)
- Rocker arm. See 11 33 516 Removing and Installing/Replacing Rocker Arms On Left Inlet Side (N73) ,11 33 517 Removing and Installing/Replacing Rocker Arms On Right Inlet Side (N73)
- Cylinder head gasket. See 11 12 110 Replacing Left Cylinder Head Gasket (N73) ,11 12 111 Replacing Right Cylinder Head Gasket (N73)
- Valve guide. See 11 12 595 Checking a Valve Guide For Wear (N73)
- Checking cylinder head for cracks in water test. See 11 12 729 Checking Cylinder Head For Leaks (N73)
- Check cylinder head sealing faces. See 11 12 719 Resurfacing Cylinder Head Sealing Face (N73)
- Exhaust camshafts. See 11 31 036 Removing and Installing/Replacing Left Exhaust Camshaft (N73) ,11 31 038 Removing and Installing/Replacing Right Exhaust Camshaft (N73)
