51 16 195 Removing And Installing Centre Armrest (Front)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 760Li, and 2007 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close front cup holder
Remove SIDE PANELS ON CENTRE CONSOLE
Remove FRESH AIR GRILLE IN REAR COMPARTMENT

Version with rear compartment monitor:

Remove CONTROL UNIT FOR REAR COMPARTMENT MONITOR

Version with rear compartment monitor:

Unclip rear compartment monitor lead (1) and plug connection (2) in direction of arrow from fixture (3).

Disconnect plug connection (2).

Fig 1: Unclipping Rear Compartment Monitor Lead And Plug Connection From Fixture

G04767643

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left/right.

Fig 2: Identifying Screws

G04767644

Courtesy of BMW OF NORTH AMERICA, INC.

Version with mobile phone storage compartment:

Remove storage tray/CD box.

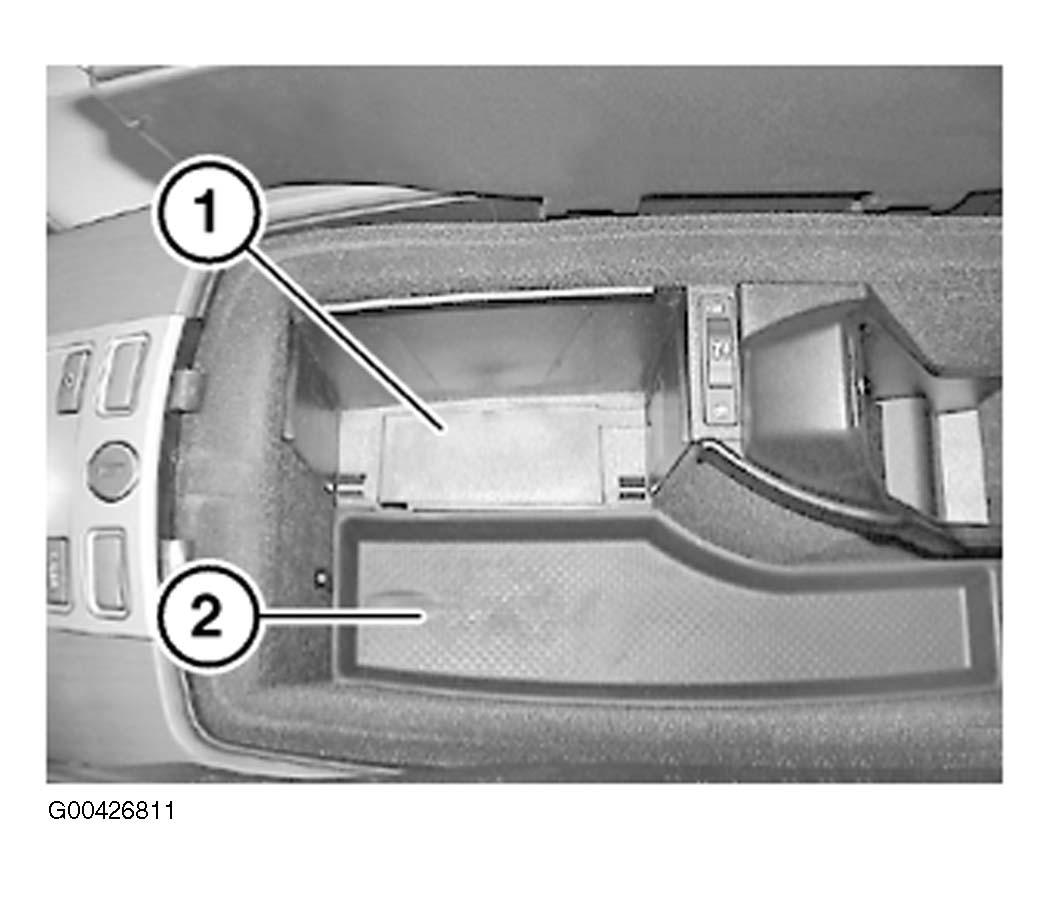

Snap out trim (1) in upward direction and disconnect plug connections underneath.

Lift out mat insert (2).

Fig 3: Identifying Mat Insert And Trim

G00426811

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out mat insert (1) in direction of arrow.

Fig 4: Pulling Out Mat Insert

G04767646

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out coin box (1) in direction of arrow and remove.

Fig 5: Pulling Out Coin Box

G04767647

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 6: Identifying Plug Connection

G04767648

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Fig 7: Identifying Nuts

G04767649

Courtesy of BMW OF NORTH AMERICA, INC.

Raise centre armrest (1) slightly.

Feed out plug (2) towards bottom.

Unfasten plug connections (3) and disconnect.

Lift off centre armrest (1).

Fig 8: Identifying Plug Connections, Plug And Centre Armrest

G04767650

Courtesy of BMW OF NORTH AMERICA, INC.
