13 71 000 Removing and installing/replacing the intake silencer housing (N54, N54T)

Necessary preliminary tasks:

Remove intake duct . See.

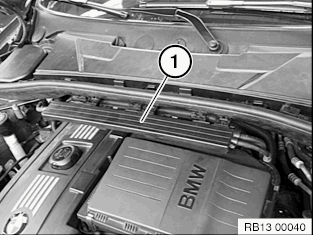

Unclip B+ cable strip (1).

Fig 1: Unclipping Cable Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows microfilter housing removed for purposes of clarity. Pull wiring harness mounting (1) up.

Fig 2: Pulling Wiring Harness Mounting Up

Courtesy of BMW OF NORTH AMERICA, INC.

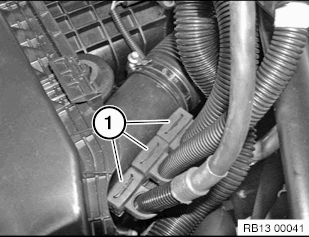

Release clamp (1) and detach air intake hose. Tightening torque, see 13 71 2AZ .

Fig 3: Detaching Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp and detach air intake hose. Tightening torque 13 71 1AZ . Unlock and disconnect line (1). Unclip line (1) from air filter housing.

Fig 4: Identifying Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

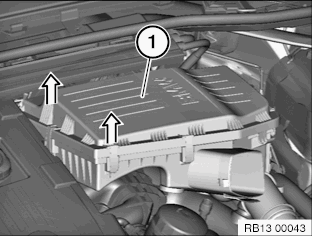

Slightly raise front of intake silencer housing (1) in direction of arrow. Press rear of intake silencer housing upwards out of mounting points and remove.

Fig 5: Raising Front Of Intake Silencer Housing

Courtesy of BMW OF NORTH AMERICA, INC.

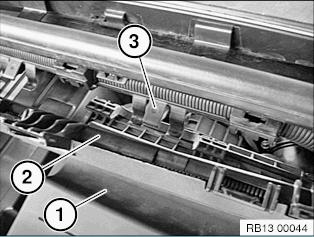

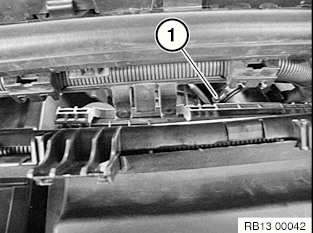

Installation note: Push rear area of intake silencer housing (1) under B+ cable strip (2) and guide (3). While doing so, push guide (3) up a little.
