13 Removing intake duct (N54)

Unfasten screws. Tightening torque, see 13 71 5AZ Unlock intake duct (1) at side and detach from air cleaner housing. Remove intake duct (2) in direction of arrow.

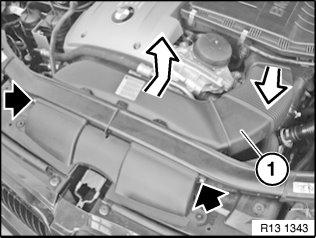

Fig 1: Unlock Intake Duct (1) At Side And Detach From Air Cleaner Housing

Courtesy of BMW OF NORTH AMERICA, INC.
