11 61 050 Removing And Installing Intake Air Manifold (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove design cover.
Remove center of assembly partition wall. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF AASSEMBLY COMPARTMENT BULKHEAD .
Remove upper section of intake filter housing and air intake hose on left and right. Refer to 13 71 010 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) INTAKE FILTER HOUSING (N73) .
Release ignition wiring harness. Refer to 12 51 100 REPLACING WIRING HARNESS SECTION FOR IGNITION COIL (N73) .

Disconnect plug connections on throttle assembly (1).

Detach engine vent hoses from pressure control valve (2).

Detach holder (3) for intake air manifold on left and right.

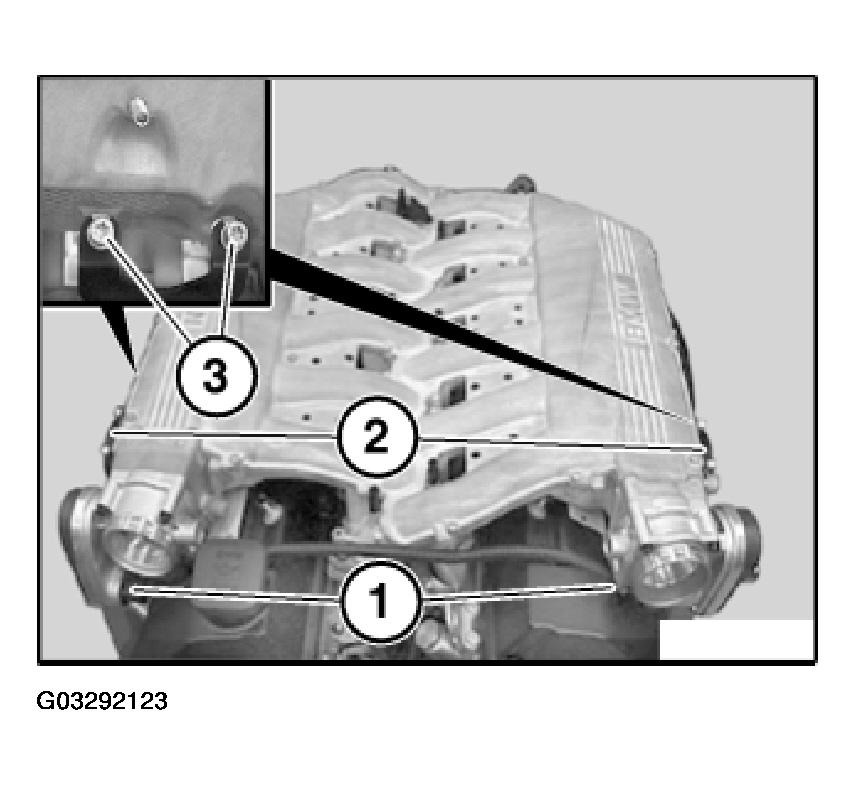

Fig 1: View Of Intake Air Manifold Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection on intake pipe pressure sensor (1) on left and right.

Release screws (2) along lines (3).

Remove intake air manifold towards top.

Installation:

Clean sealing faces for intake air manifold.

Replace seals for intake air manifold.

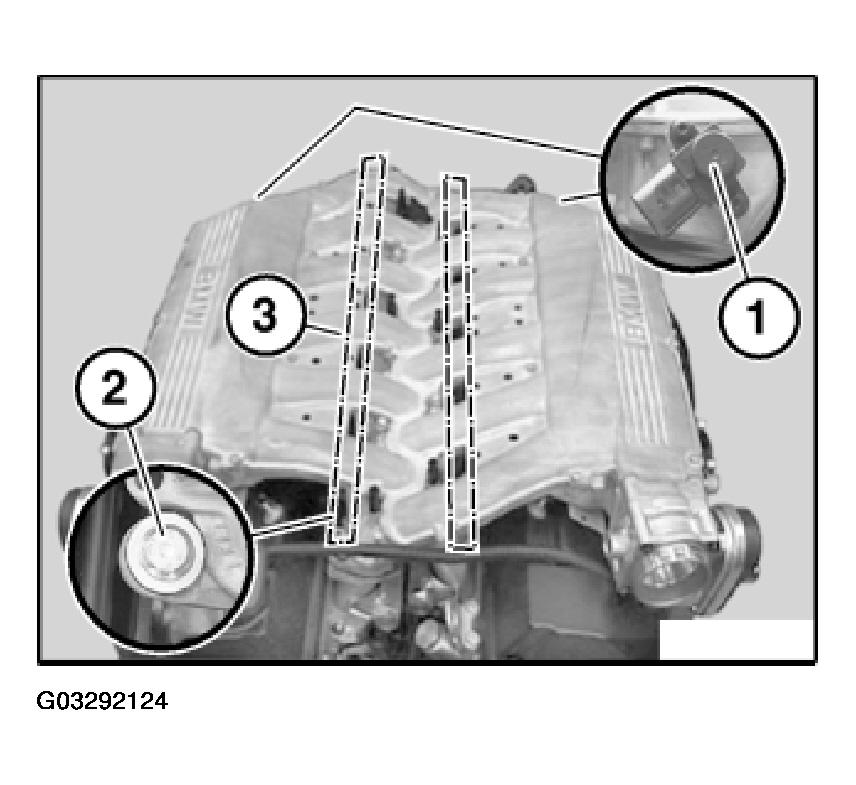

Fig 2: Locating Intake Pipe Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.

Check intake manifold for leaks.
