51 71 085 Removing And Installing Center Of Assembly Compartment Bulkhead

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both air ducts for microfilter. Refer to 64 31 030 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C BASIC) and 64 31 031 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C HIGH) .

Release screw (1) on left/right and remove both fresh air ducts.

Fig 1: Locating Fresh Air Duct Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off sealing strip (1).

Unfasten screws.

Place holder (2) with switch for engine hood contact to one side.

Remove bulkhead (3).

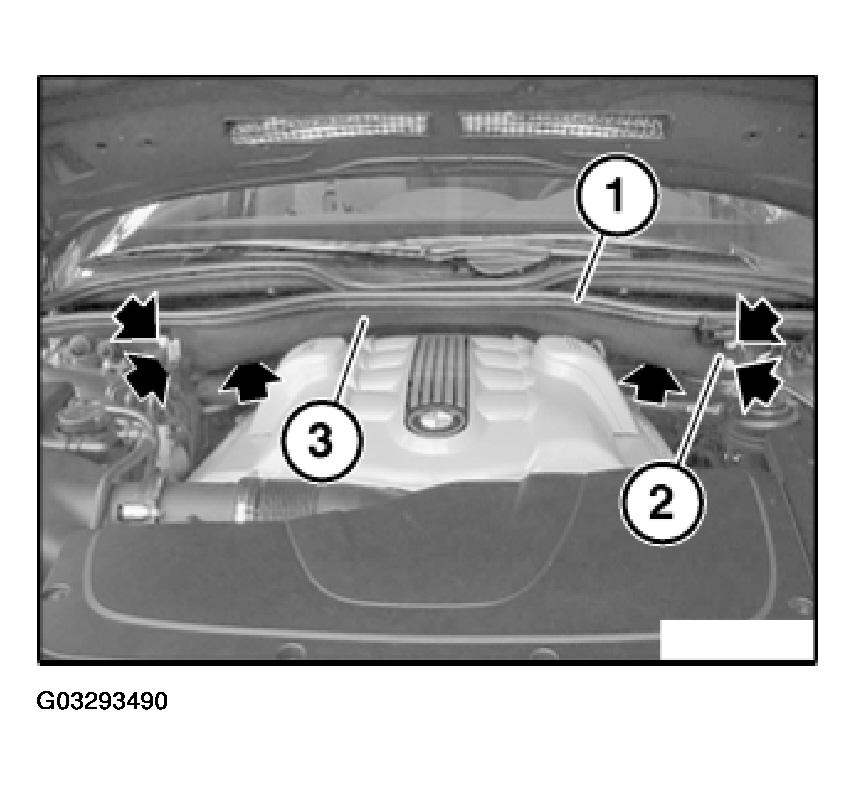

Fig 2: View Of Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not crush cable.

Check height adjustment of engine hood contact and correct if necessary.
